Ella Transfer60 30x60: Full-Length Transfer Tub With Dual Hydro Pumps, on Video

Updated September 2026

▶Glossary6
  1. Dimensions and Capacity
  2. The Transfer60 on Video
  3. What a Real Installation Looked Like
  4. Packages, Options and Faucet
  5. Related Guides
  6. Common Questions

The Ella Transfer60 is the full-length member of the wheelchair-accessible Transfer family, built for taller bathers who want more leg room. Its actual size is 29 1/2 inches wide by 60 inches long by 40 inches tall with a 22 inch wide seat, and because it already fills a 60 inch opening it is the one Transfer model that does not list an extension panel. Its signature is the dual hydro pump layout: one pump for the seat jets and a second for the foot and calf jets, and both can run at the same time.

Ella Transfer60 30x60 wheelchair accessible walk-in tub with the L-door open showing hydro jets, grab bar, and built-in seat
The Transfer60 with its L-shaped door open.

Dimensions and Capacity

  • Actual size: 29 1/2 by 60 by 40 inches (marketed as 30 by 60). Seat width: 22 inches.
  • Comparison chart interior figures: 18 1/2 inch seat length, 50 3/4 inch interior length, 19 5/8 inches from seat to overflow, 17 inches from seat to footwell, 17 by 19 inch footwell.
  • Water: 90 gallons unoccupied, 55 to 75 gallons occupied, per the current spec sheet.
  • Weight: 220 pounds net, 300 pounds shipping, in a 34 by 62 by 50 inch crate.
  • Door: L-shaped outward swing, 172 degree opening, two-latch gear and shaft lock; our team quotes about 36 inches hinge to hinge and asks for 36 inches of clearance in front.

Our team describes the Transfer60 as the Transfer model with the most stretching room and recommends it for bathers over about 6 feet; the backrest reclines about 15 degrees. The Transfer tub family guide compares it with the 52 inch models and the bariatric TransferXXL.

The Transfer60 on Video

Ella's Transfer 60 With Dual Pumps
Chapters in this video
  1. 0:00 Transfer 60 Accessibility Features The video introduces the Ella Transfer 60 walk-in tub and highlights its easy access features, including a low threshold and wide L-shaped door.
  2. 0:37 Hydro Massage and Dual Pumps The tub offers independent foot massage and full-body hydro massage with strategically placed jets and an intensity control dial.
  3. 1:43 MicroBubble Therapy and Dual Drain The tub can be equipped with skin-softening MicroBubble therapy, and it features Ella's dual drain technology for quick water removal.

The video opens with entry: step in over the low threshold through the wide L-shaped door, or sit first and swing your legs around into the tub, with the seat also reachable from a wheelchair. Grab bars mounted on the deck, the sidewall and the door add stability. Second, the easy-close chrome handle engages the two-latch gear and shaft lock for a leak-proof closure. Third, it explains that the tub provides two hydro pumps rather than one: pump one drives the seat jets and pump two powers the foot and calf jets, so you can enjoy a foot massage without filling the tub or run both together for a full-body massage, with no diverter valve splitting a single pump's flow between the two zones. Fourth, it shows the in-line water heater and the intensity control dial, and a push of a button selects the upper or the lower pump. Fifth, it introduces the microbubble option that generates billions of microbubbles to hydrate and exfoliate the skin. Sixth, it closes on the dual oversized T-type drains that empty the tub quickly.

Transfer 60: Walk-In Tub with Hydro and MicroBubble Therapy
Chapters in this video
  1. 0:00 Introducing The Transfer 60 This chapter introduces the Transfer 60 L-shaped walk-in tub, highlighting its extra length and suitability for wheelchair users.
  2. 0:14 Transfer 60 Tub Dimensions This chapter details the comfortable seat dimensions and interior length, explaining how these factors determine immersion depth.
  3. 0:51 L-Shaped Door And Safety Features This chapter showcases the extra-wide L-shaped door, the double-latch locking mechanism, and various safety features like support bars and a textured floor.
  4. 1:37 Innovative Hydro Massage Design This chapter describes the powerful hydro massage system, in-line water heater, intensity control dial, ozone sterilization, and LED chromotherapy.
  5. 2:06 Heated Seats And Faucet Set This chapter highlights the optional heated seats and the five-piece quick-fill faucet set with an extendable multi-function hand shower.
  6. 2:20 Dual Drain Technology This chapter explains Ella's dual drain technology, emphasizing its two 2-inch, four-port drains for quick and efficient emptying.

This narrated tour quotes the 22 inch seat width, an 18 1/2 inch seat length and nearly 49 inches of interior length, shows the extra-wide L-shaped door fitting over the toilet with its two-latch lock, and reviews hydro with the in-line heater and dial, ozone, chromatherapy, the optional heated seat, the 5-piece faucet, the dual 4-port 2 inch drains, and the independent foot massage option. The comparison chart's 50 3/4 inch interior figure is the published one. Watch: Transfer 60: Walk-In Tub with Hydro & MicroBubble Therapy with chapters and a full transcript.

Transfer 60 Size and Interior Dimension Video
This short clip is a dimension visual with no narration. It shows the 60 inch length, the seat and the interior in proportion so you can picture a taller bather in the tub. Use the figures above from the spec sheet and the comparison chart when you measure.
Transfer 60 Hydro & MicroBubble
Chapters in this video
  1. 0:00 Introducing the Transfer 60 Tub This chapter introduces the Transfer 60 L-shaped door walk-in tub, highlighting its extra length and wheelchair accessibility.
  2. 0:49 Easy Entry and Safety Features This chapter showcases the extra-wide L-shaped door, easy-function entry lever, and various safety features like grab bars and a textured floor.
  3. 1:37 Innovative Jetting and Therapies This chapter details the powerful hydro massage, ozone sterilization, LED chromotherapy light, and optional heated seats.
  4. 2:19 Fast Fill and Dual Drain Technology This chapter highlights the five-piece fast fill faucet set with a hand shower and Ella's dual drain technology for efficient draining.

This visual presents the Transfer60 with hydro massage and Infusion microbubble therapy. Microbubble therapy uses a high-pressure pump and a tank system to break water into billions of tiny bubbles delivered through a single jet on a push-button control; see microbubble Infusion therapy.

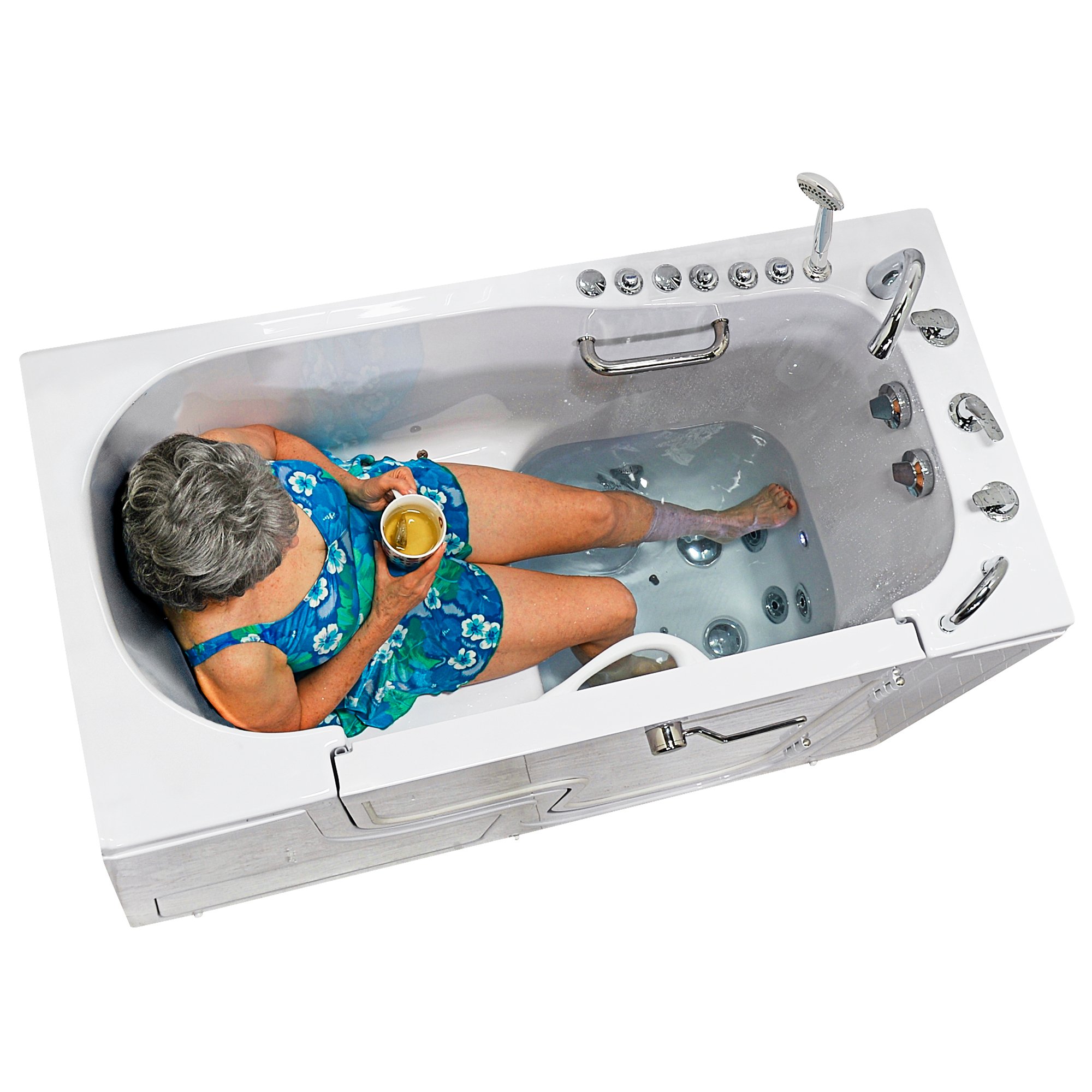

Overhead view of a senior woman enjoying the independent foot massage in the Ella Transfer60 walk-in tub
The second hydro pump runs the foot and calf jets on their own.

What a Real Installation Looked Like

Walk-In Tub Installation and Delivery: Ella's Bubbles Transfer 60
Chapters in this video
  1. 0:00 Unboxing and Initial Inspection The video shows the unboxing of an Ella's Bubbles walk-in tub and the initial inspection for any shipping damage.
  2. 0:49 Pre-Installation Leak Check The tub is filled outside to check for leaks and all pumps are run to ensure proper function before installation.
  3. 1:11 Drain and Water Supply Connections The installer modifies the floor for the oversized drains and connects the water supply lines with shut-off valves.
  4. 2:10 Electrical and Leveling A licensed electrician adds proper breakers and GFCI outlets, and the tub's adjustable legs are used for leveling.
  5. 2:47 Final Checks and Finishing Touches After all connections are secure, the tub is filled to check for leaks, and the side panels are replaced and sealed.

Ella's Bubbles filmed a real Transfer60 installation in the greater Chicago area, and the steps apply to any Transfer tub: Watch: Walk-In Tub Installation and Delivery Ella's Bubbles Transfer 60 with chapters and a full transcript.

  1. On arrival, remove the crate and packing, then inspect for shipping damage before anything else; see delivery day inspection and moving.
  2. Remove all end and side panels before moving the tub into the home.
  3. Whenever possible, fill the tub outside, run all pumps and check for leaks before installation.
  4. Drain and dry the tub, then move it inside. Floor modifications may be needed for the oversized 2 inch drains; this installer capped one side of the T-type dual drain and connected a single run to the house main drain.
  5. Connect the included 5 foot supply lines; this installer placed shut-off valves where they could be reached.
  6. A licensed electrician added the correct breakers and GFCI outlets at the panel.
  7. Level the tub with the adjustable leveling legs. If the tub is not level, the door will not close properly and could leak; see the leveling guide.
  8. Fill the tub, run all pumps, check for leaks, then replace the panels and apply silicone as needed.

Packages, Options and Faucet

The Transfer60 offers triple packages: Air + Hydro + Hydro Independent Foot Massage and Air + Hydro + Microbubble, alongside Air + Hydro, Hydro + Hydro Foot, Hydro + Microbubble, Hydro Massage and Soaking. The two-pump hydro layout uses 5 amp and 7 amp pumps with two intensity dials; the air pump is 4.5 amp, three-speed with auto purge; the microbubble pump is 1 HP at 7.3 amps. LED chromatherapy is included with dual or triple packages, and a heated seat and backrest and a digital controller are optional. The spec sheet headlines the five-piece fast-fill faucet, up to 18 gallons per minute at 60 PSI under ideal plumbing, with a pull-out hand shower. Dedicated GFCI-protected 115/120 V, 60 Hz lines are required, and a multi-pump package will need more than one 20 amp circuit, so have your electrician work from the schematic for your package; see electrical requirements by model.

Common Questions

Can I run seat jets and foot jets at the same time on the Transfer60?
Yes, you can run the seat jets and foot jets at the same time on the Ella Transfer60 walk-in tub. With the Hydro + Hydro Foot packages, the Transfer60 features two independent hydro pumps: one for the seat jets and a second for the foot and calf jets. This dual hydro pump layout allows you to enjoy a full-body massage by running both pumps simultaneously, or a foot massage without filling the entire tub, as demonstrated in the video "Ella's Transfer 60 With Dual Pumps: The Efficient Walk-In Tub Upgrade You Need".
What options does the Transfer60 have?
The Ella Transfer60 walk-in tub offers a variety of options and accessories to enhance your bathing experience. Available therapy options include air massage, MicroBubble Therapy, and independent foot massage. You can also choose optional features such as a heated seat and backrest, a digital controller, and LED chromotherapy, which is included with dual or triple therapy packages. Accessories like the four-fold glass screen and shower column are also available.
Can the Transfer60 have all four therapies?
No, the Ella Transfer60 walk-in tub cannot have all four therapies simultaneously. The Transfer60 is designed to carry a maximum of three therapy systems, such as Air + Hydro + Independent Foot Massage or Air + Hydro + MicroBubble Therapy. For a walk-in tub that can accommodate all four therapies, the team has confirmed that an all-four build is available as a special order on the bariatric TransferXXL model.
What are the seat and interior dimensions?
The Ella Transfer60 walk-in tub is designed with comfortable and spacious interior dimensions. It features a 22-inch wide seat with an 18 1/2-inch seat length. The interior length of the tub is 50 3/4 inches, as listed on the comparison chart, providing ample stretching room for taller bathers. The footwell measures 17 by 19 inches, with 17 inches from the seat to the footwell and 19 5/8 inches from the seat to the overflow.
Does it need an extension panel?
No, the Ella Transfer60 walk-in tub does not require an extension panel. With an actual length of 60 inches, it is designed to fill a standard 60-inch alcove opening without the need for an additional extension kit. The Transfer60 is the only Transfer model that does not list an extension panel, making it a convenient choice for standard bathroom renovations.
How should the dual drains be plumbed?
The T-type drains have four ports; connecting more ports to the house drain speeds draining, and the installer in the video capped one side and ran a single connection. Left- and right-hand drain measurements on the spec sheet are the same; see plumbing and drain configurations.
Is there a back cushion or a surround for the Transfer60?
Ella's Bubbles offers a seat cushion and riser for the Transfer60 walk-in tub, but a separate back cushion is not available. Additionally, there is no Transfer60-specific wall surround offered. Owners typically use a universal wall surround, wall panels, or tile to finish the area around the tub.
Is a seat belt available?
Yes, a seat belt accessory is available for the Ella Transfer60 walk-in tub. The seat belt's bracket mounts securely below the seat using drilled fasteners. If you are considering this accessory, please contact the Ella's Bubbles team to confirm the fit for your specific Transfer60 model.
What did a real Transfer60 installation look like?
Inspect, test-fill outside, adapt the floor for the dual 2 inch drains, connect supplies with reachable shut-offs, have an electrician add GFCI circuits, level the tub, and test again before closing the panels.

For anything specific to your Transfer60 or your order, open a ticket at ellasbubbles.com/support or call (800) 480-6850.
