Wheelchair Transfer Walk-In Tubs + Models | Ella's Bubbles

L-Shape Outswing Door Wheelchair Transfer Acrylic Walk-In Tubs

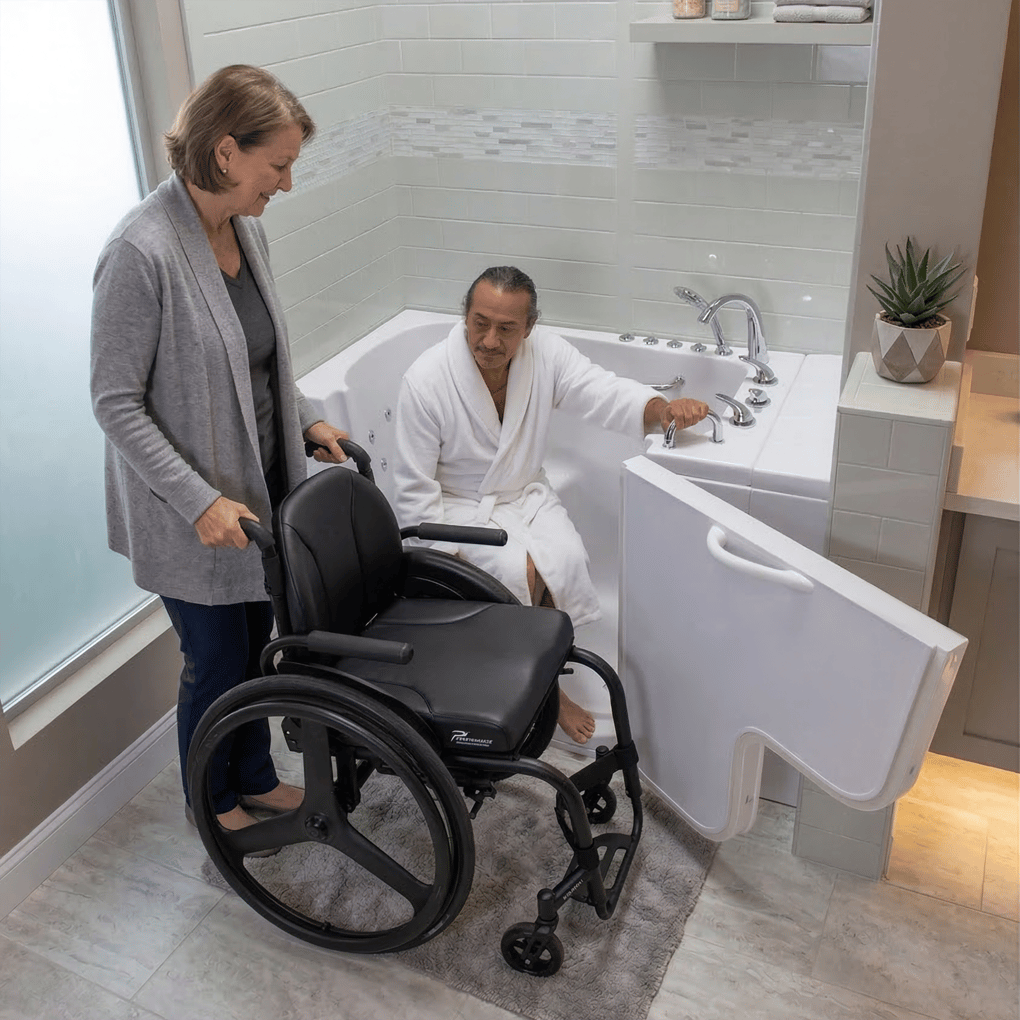

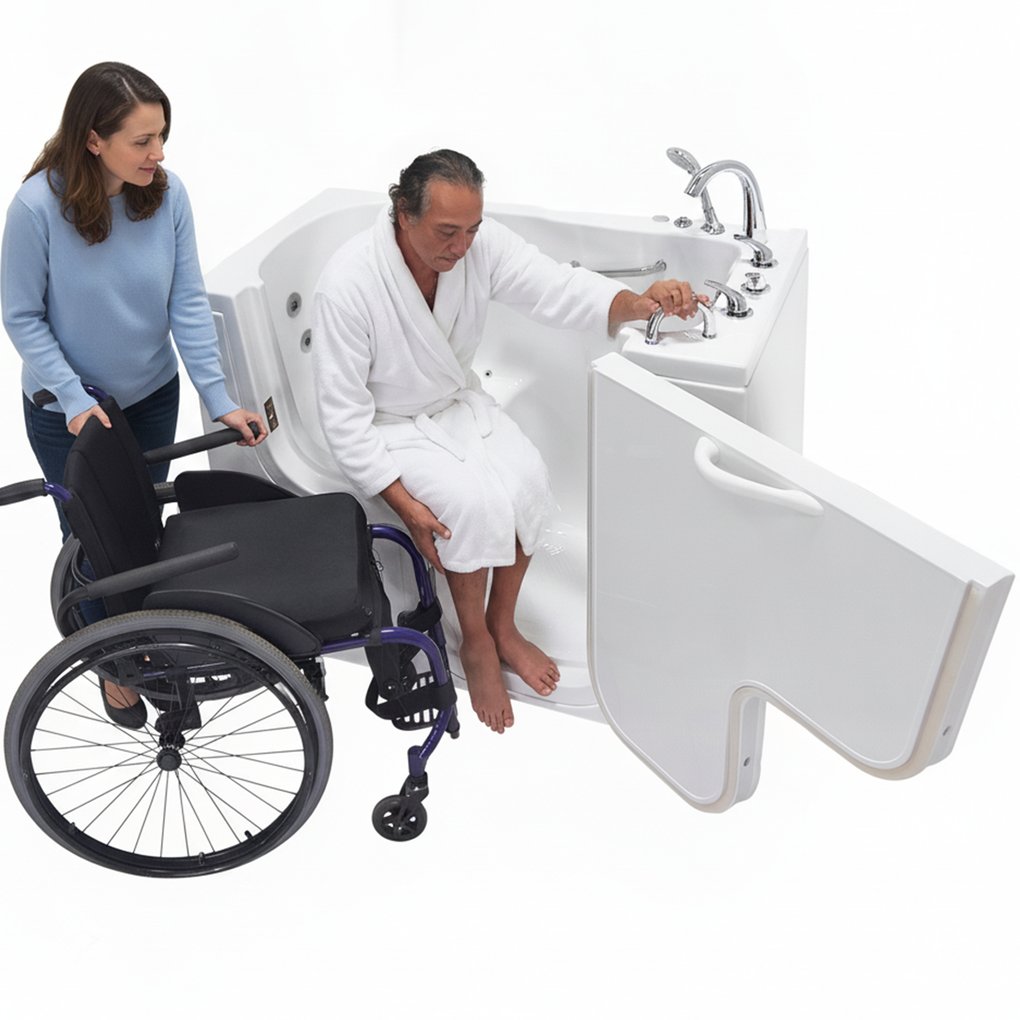

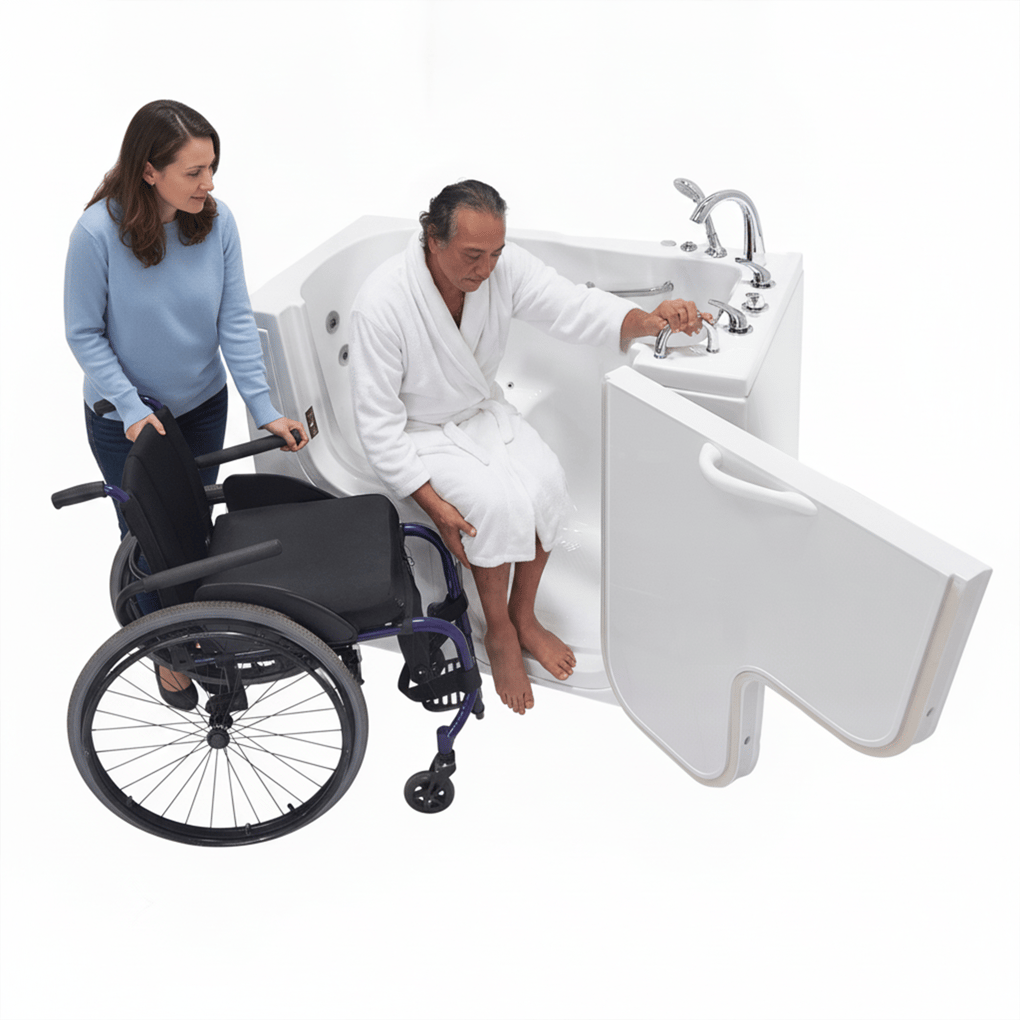

Experience exceptional accessibility and comfort with Ella's L-Shape Outswing Door Transfer Walk-In Tubs, designed for easy entry and exit. These tubs feature an extra-wide, L-shaped barrier-free sidewall that allows bathers to effortlessly sit down or transfer from a

Experience exceptional accessibility and comfort with Ella's L-Shape Outswing Door Transfer Walk-In Tubs, designed for

26"W x 52"L
Seat Size: 19"W

30"W x 52"L
Seat Size: 22"W

32"W x 52"L
Seat Size: 24"W

30"W x 60"L
Seat Size: 22"W

36"W x 55"L
Seat Size: 29"W

Walk-In Tub Model Specifications Comparison

Wheelchair Transfer Walk-In Tub Dimensions

Transfer Transfer32 Transfer26 Transfer60 TransferXXL
Dimensions of Tub WxLxH 30x52x40 32x52x40 26x52x40 30x60x40 36x55x40
Dimensions of Crate WxLxH 32x54x50 34x54x50 30x54x50 32x62x50 38x60x50
Threshold Height 7" 7" 7" 7" 7"
Threshold Lowering Option 4.5″ 4.5″ 4.5″ 4.5″ 4.5″
Seat Width 22" 24" 19" 22" 29"
Seat Height 17" 17" 17" 17" 17"
Width of Door 36" 36" 36" 36" 36"

Wheelchair Transfer Information

Transfer Transfer32 Transfer26 Transfer60 TransferXXL
Gallons USA (Unoccupied) 75 80 65 90 110
Gallons USA (Occupied) 45-55 45-65 30-40 55-75 65-85
Suggested Water Heater* 75 75 75 75 75
Approximate Drainage Time** 80 Seconds 80 Seconds 80 Seconds 80 Seconds 120 Seconds
Drain/Door Location Right or Left Right or Left Right or Left Right or Left Right or Left
Product Net Weight LBS 220 220 220 220 240
Product Shipping Weight LBS 300 300 300 300 320

*Suggested water heater size for a household with only a single bather. A household with any additional bathers should consider the next size available water heater. **Approximate Drainage Time is under ideal plumbing conditions, your drainage times may vary.***Net and shipping weight depends on what packages is ordered

Wheelchair Transfer Walk In Tub Features & Benefits

Transfer Transfer32 Transfer26 Transfer60 TransferXXL
Grab Bar(s) 2 2 2 2 2
Gallons USA (Occupied) 3 3 3 3 3
Hydro Jets 13 13 13 13 13
Air Jets 17 17 17 17 17

T-TYPE 4 PORT 2" Dual Drain

Our walk-in tubs are equipped with the industry best Ella Dual Drain Technology. This gravity driven dual 2” four-port drain provides fast and efficient draining and reliable and fast exit from the tub. The tub will drain in approximately 80 to 120 seconds depending on water volume, bather’s body size, and house drain conditions. For more information, visit Dual Drain Technology.

Out-swing door walk-in tub benefits
Out-swing door walk-in tub benefits

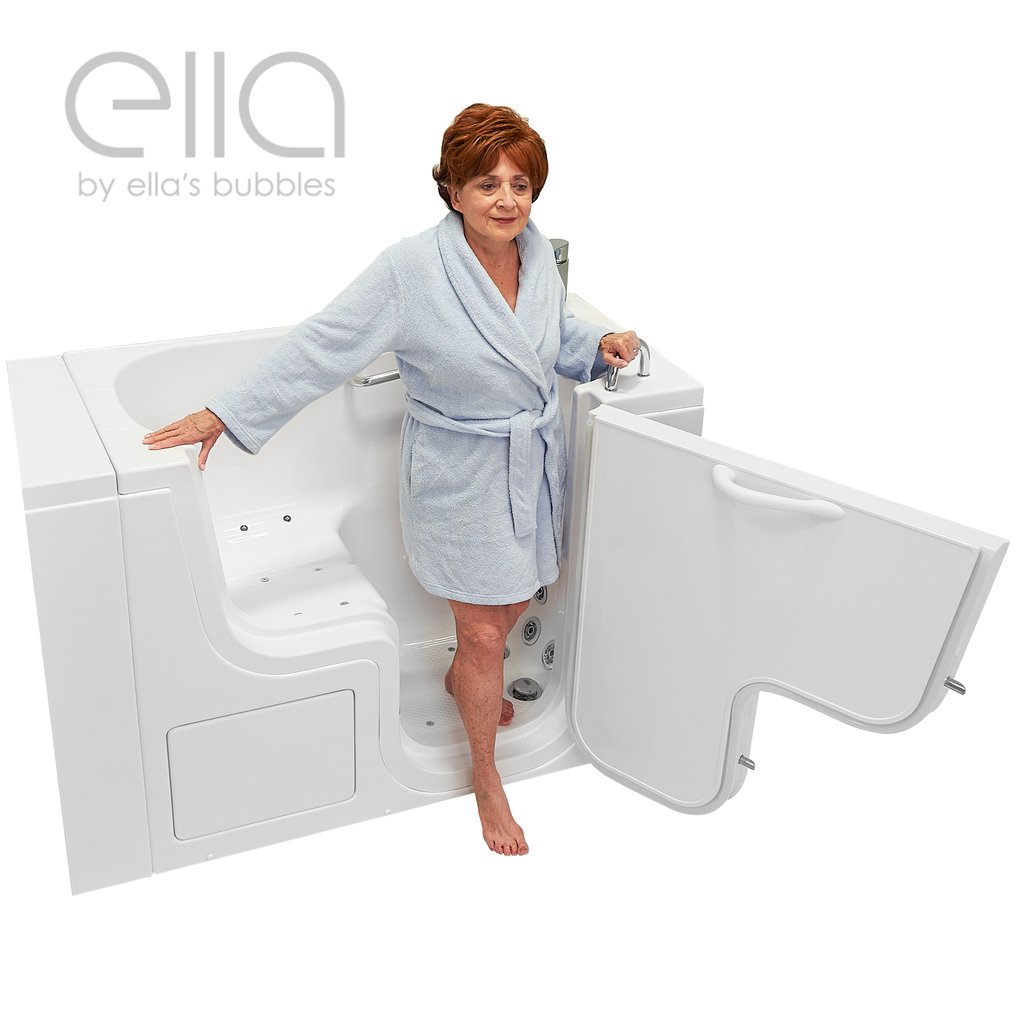

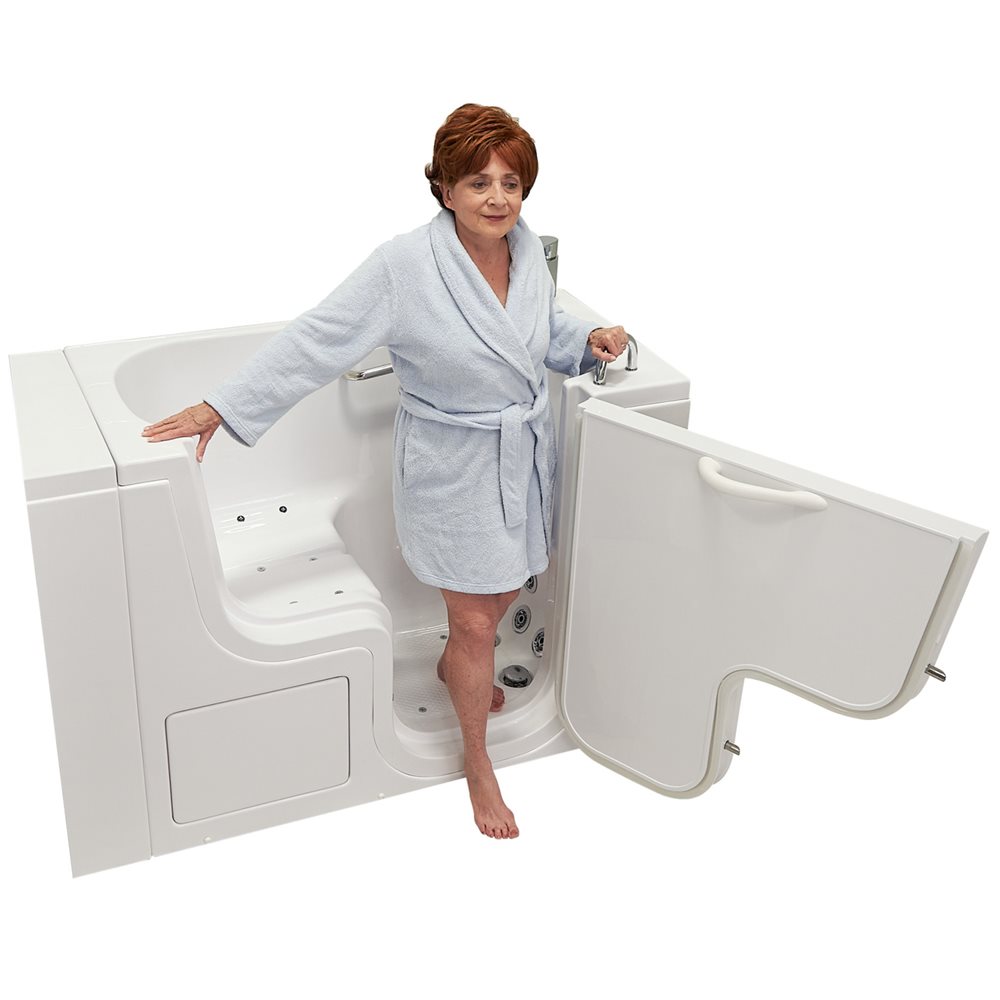

2-Latch L-Shape Outward Swing Door

White acrylic inward swing door panel for Ella wheelchair accessible walk-in tub with stainless steel hinges and built-in handle

Ella light-weight, yet durable aluminum L shape outward swing doors are made with a 2-latch gear and shaft lock mechanism which allows for equal pressure to the door gasket throughout its entirety and guarantees a leakproof door seal. The L shape door opening allows for toilet clearance up to 21” height and convenient transfer from the wheelchair into the seat over the soft and warm to touch acrylic shell.

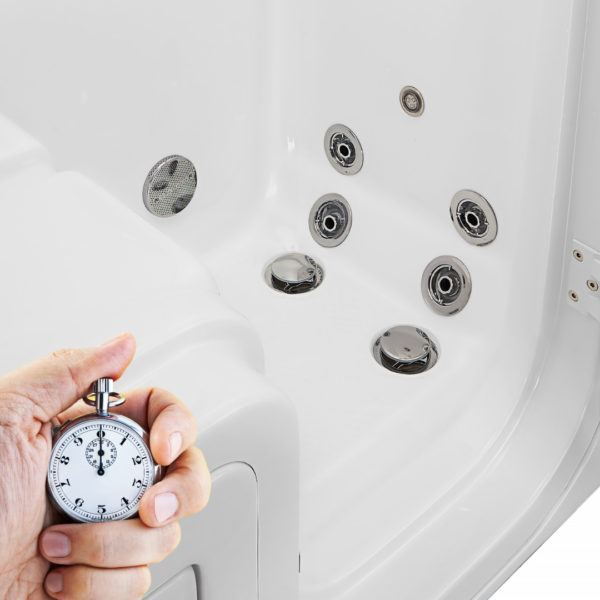

The best fast drain in industry – no power required! Ella gravity driven 2″ dual drain technology with independently operated 2 openers, 2 overflows for fast and reliable drainage and exit out of the walk-in tub. This drain can be connected to 4 x 2 inch outlets vs. one 1 1/2″ standard bathtub drain. See details in product page downloads or visit Dual Drain Technology.

The best fast drain in the industry – no power needed!

  • Gravity-driven 2″ dual drain
  • 2 independent openers and 2 overflows for swift, reliable drainage
  • Connects to 4 x 2″ outlets vs. 1 standard 1 1/2″ tub drain

See Dual Drain Technology

Our aluminum frame outward swing L-shaped door is equipped with our unique gear and shaft driven 2-latch door edges out our competition who typically use a single latch/lever system. A 2-latch door system provides a more secure and watertight door seal than the conventional single latch system, providing you with a leak-free bathing experience.

Our gear and shaft-driven 2-latch door outperforms conventional single-latch systems.

  • Aluminum frame, L-shaped outward swing door
  • More secure, watertight seal for a leak-free bath
  • Unique gear and shaft-driven latches instead of a single lever

See the 2-Latch Door

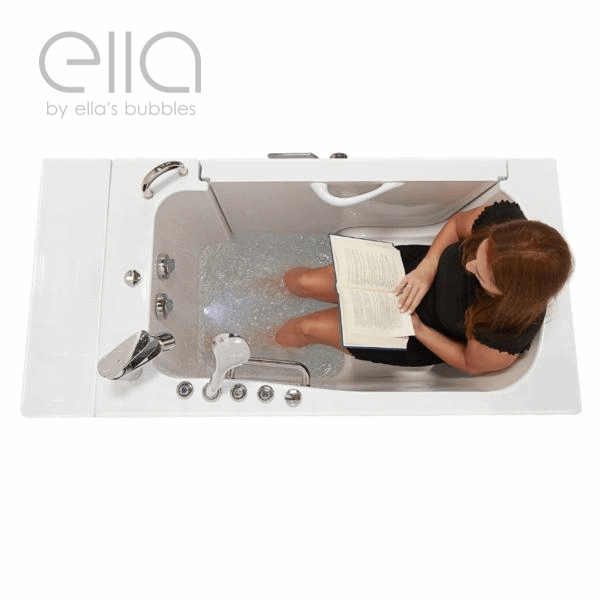

Ella walk-in tubs are equipped with 4 adjustable foot jets and 2 adjustable calf jets for maximum relaxation. These jets are strategically positioned in the lowest possible area of the floor for bathers to enjoy a powerful foot massage in a relaxed position. No need to fill the whole tub, the foot well fills in just a couple of minutes!

4 adjustable foot jets and 2 adjustable calf jets for maximum relaxation.

  • Jets placed in the lowest area of the floor for a powerful foot massage in a relaxed position
  • No need to fill the whole tub: the foot well fills in just a couple of minutes

See Independent Foot Massage
