Light Chromatherapy: Using the LED Colors and Fixing a Light That Will Not Turn On

Updated September 2026

▶Glossary6
  1. Using the Chromatherapy Light
  2. Which Packages Include the LED Light
  3. How the Chromatherapy System Is Wired
  4. Fixing a Light That Will Not Turn on
  5. Related Guides
  6. Common Questions

Light chromatherapy on an Ella walk-in tub is a multi colored LED inside the tub that cycles through a soothing range of colors, adding a relaxing visual dimension to your bath. Press the light button once to start the cycle, keep pressing to hold a color you like, and press and hold for two seconds to turn it off. It works the same way whether your tub has the easy touch push buttons or the digital touchpad. This guide covers how to use the chromatherapy light, which packages include it, how the system is wired behind the scenes, and what to check when the light will not turn on or will not turn off.

Using the Chromatherapy Light

Using Light Chromatherapy on an Ella Walk-In Tub

The controls are the same on the easy touch buttons and the digital touchpad: Watch: Relax with LED Light Chromatherapy in Your Walk-In Tub with a full transcript.

  1. Press the light button once and the LED cycles through its full range of colors.
  2. Repeat single presses to stop the cycle on a specific solid color you like.
  3. Press and hold the button for two seconds to turn the light off.

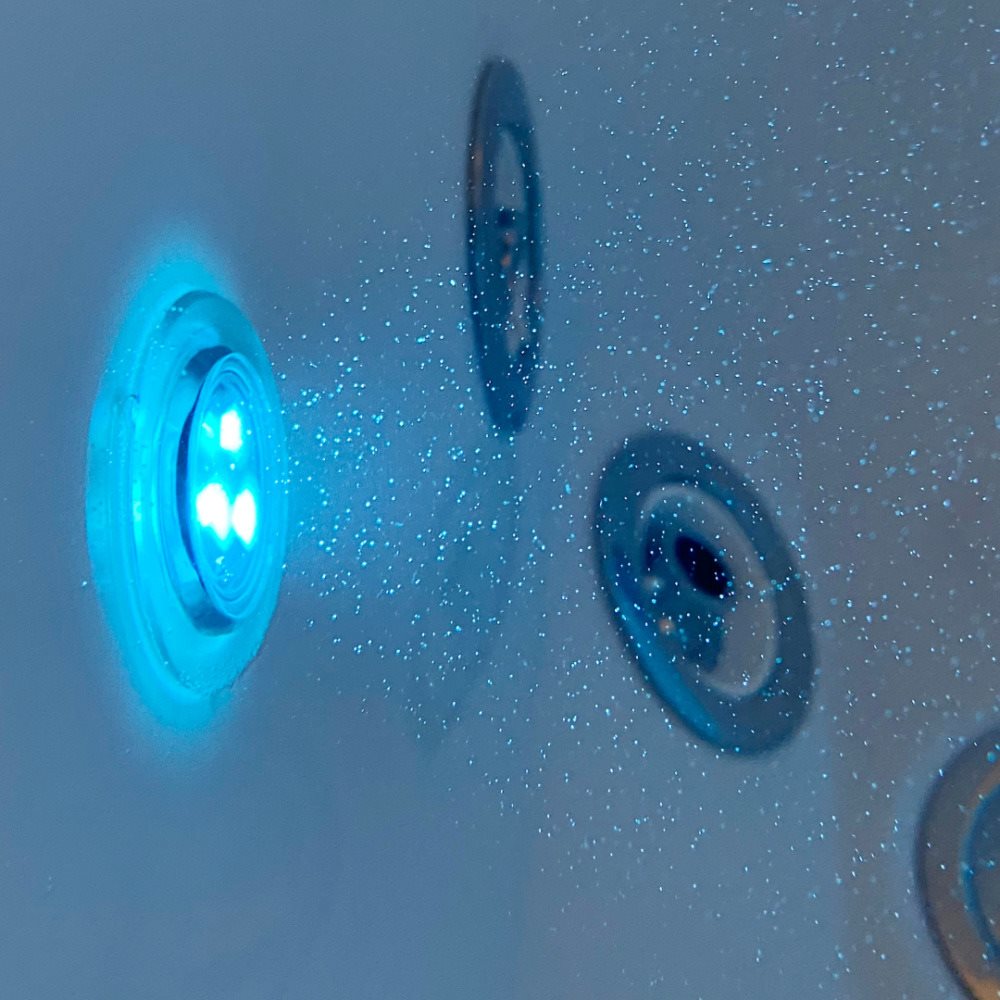

Glowing blue LED chromatherapy light beside the hydro massage jets on the wall of an Ella Royal walk-in tub
The LED chromatherapy light glowing blue beside the hydro jets on a Royal.
Light Chromatherapy Demo for Walk In Tubs
Chapters in this video
  1. 0:00 What Is Light Chromatherapy? Light chromatherapy is an added feature available on Ella's Bubbles walk-in tubs that provides a relaxing visual element to your bathing experience.
  2. 0:17 How To Cycle Colors A multi-colored LED in the tub cycles through a soothing color range when you press the button once.
  3. 0:32 How To Turn Off You hold the button for two seconds to turn the chromatherapy light off.

This short demo shows the light cycling through its colors inside a filled tub, which is the easiest way to see what the feature looks like before you decide whether to hold a single color or let it cycle. Our push controls vs digital touchpad article shows where the light button sits on each panel style.

Which Packages Include the LED Light

The LED chromatherapy light is included with the dual and triple therapy packages, is available as an extra with hydro-only tubs, is not offered on the Front Entry with any package, and is not offered on the LayDown tubs. Our therapy package inclusions cheat sheet lists what each package brings. If you would like scent as well as color, the separate aromatherapy canister option is the intended way to add it.

How the Chromatherapy System Is Wired

The Ella Chromatherapy Control Box Explained
Chapters in this video
  1. 0:00 Chromotherapy Control Box Explained The video explains the chromotherapy control box, showing how to power it and connect the LED light and air switch.
  2. 0:29 Air Massage Control Box Explained The video explains the air massage control box, demonstrating how to power it and connect the air pump and air switch.
  3. 0:50 Air Massage Speeds And Auto Purge The video details the three speeds and wave function of the air massage, along with the auto Purge feature.

Behind the access panel, the chromatherapy system has its own control box, and this is worth knowing because it means the light is fully independent of your massage pumps. A tub whose jets run perfectly can still have a light issue, and vice versa. From the video: Watch: Gray and Blue Control Box Explanations with chapters and a full transcript.

  • The chromatherapy control box turns the LED light on and off and changes the colors.
  • It is powered through a three prong connector on the back of the box.
  • The LED light connects to the box on its three pin connection.
  • The push button air switch connects to the box on its own fitting.
Ella LED chromatherapy light module shown in blue, yellow, green and teal colors
The replacement LED chromatherapy light module cycles through its range of colors.

For reference, the LED chromatherapy light is rated 0.5A and runs on its own transformer and control, separate from the pump circuits. The ozone sterilization system is a separate component with its own much smaller 0.04A rating. If the spec sheet that came with a Capri or Lounger lists the LED at .04AMP, that is a known misprint on those two sheets, and the correct LED rating is 0.5A.

Fixing a Light That Will Not Turn on

Ella Push Button Pneumatic Controls and the Chromatherapy Box
Chapters in this video
  1. 0:00 Pneumatic Push Button Controls The video introduces how push button controls work using pneumatic pressure and a red connection tube.
  2. 0:32 Activating the Relay Switch Pushing the button creates pneumatic pressure, which activates the relay switch inside the control box.
  3. 1:05 Relieving an Air Lock The video demonstrates how to relieve an air lock by disconnecting the red tube from the control box.
  4. 1:20 Reconnecting the Tube After reconnecting the tube, pushing the button should produce an audible clicking sound from the control box.

The push controls on your tub deck are pneumatic. Pressing the button creates air pressure that travels down a thin red tube and activates a relay switch inside the control box, so most light problems are connection problems rather than failed parts. Work through these checks: Watch: Push Button Control Issues and Repair with chapters and a full transcript.

  1. Confirm the red connection tube is securely attached to the chromatherapy control box. A loose tube means the button's air signal never reaches the relay. Our article on push-button air hoses and ports shows which port each hose belongs on.
  2. Check the other end of the tube at the push button, and make sure the connection is tight using the locking nut.
  3. If the push button is stuck in the down position, the line is air locked. Disconnect the red tube from the control box and the button will pop back up, then reconnect the tube at the box.
  4. Press the button and listen for an audible clicking sound inside the control box. That click is the relay activating, which tells you the button, tube, and relay are all doing their jobs.
  5. If the relay clicks and the light still does not come on, check that the box has power through its three prong connector and that the LED's three pin connection is seated, and confirm the GFCI outlet serving the tub has not tripped. A control box reset is the next step.

If your tub uses the digital touchpad rather than push buttons, or these steps do not bring the light back, our guide to touchpad and push control troubleshooting covers the next layer of checks. Replacement LED assemblies, transformers, buttons and control boxes are available, and our team can identify the exact part from your model and serial number.

Common Questions

Which packages include the LED chromatherapy light?
The LED chromatherapy light is included with Ella's Bubbles dual and triple therapy packages. It is also available as an extra option for hydro-only tubs. However, the LED chromatherapy light is not offered on the Front Entry walk-in tub model with any package, nor is it available on LayDown tubs. You can consult the therapy package inclusions cheat sheet for a complete list of features.
The light will not shut off, what do I do?
If your Ella walk-in tub's chromatherapy light will not shut off, first press and hold the light button for two seconds. This action is designed to turn the LED light off. If the light remains on after holding the button, switch the tub's breaker off and then back on to reset the system. If the issue repeats after this reset, please open a support ticket.
The light is stuck on one color.
A light that seems stuck is often just holding a color, because repeated single presses lock one in. Press and hold for two seconds to turn it off, then press once to restart the cycle. If it always comes back on the same color, the LED module or its control box may need replacing; the LED has its own box and transformer, and a control box reset is worth trying first.
The tub glows dimly at night and I cannot find a switch.
If your Ella walk-in tub glows dimly at night and you cannot find a switch, it is likely the LED chromatherapy light. To turn it off, press and hold the light button for two seconds. If the glow persists even after you release the button, please report it to the support team with your tub's model and serial number so they can check the light's control box.
Everything else works but the light does not. Is it the button or the bulb?
Listen for the relay click in the chromatherapy control box when you press the button. A click means the button and tube are fine and the LED or its connection is the place to look; no click points to the air tube or the button. Both parts are replaceable.
Can I get a jetted tub without a light?
The LED comes with dual and triple packages, and you can simply leave it off by holding the button two seconds. If you would prefer a tub built without it, ask your Ella dealer or the team at (800) 480-6850 before ordering.
What does the flashing red light on the seat heater button mean?
That indicator belongs to the heated seat system rather than the chromatherapy LED. If it flashes while the seat stays cold, open a ticket with your serial number and a short video so the team can check the heater keypad and box.
How many colors does the light have?
The LED chromatherapy light on Ella's Bubbles walk-in tubs cycles through a range of eight colors. To start the cycle, press the light button once. You can then press the button repeatedly with single presses to stop the cycle and hold a specific solid color you like. To turn the light off, press and hold the button for two seconds.
Is the light safe to use with the water in the tub?
Yes, the LED chromatherapy light is safe to use with water in the tub. It is a sealed, low-voltage fixture rated at 0.5A, designed to sit below the water line. The light runs on its own transformer and control box, which are separate from the pump circuits, ensuring its safe operation within the tub.
Do Ella tubs have a Bluetooth speaker?
A Bluetooth speaker has been mentioned as an optional feature on some accessible-tub pages for Ella's Bubbles walk-in tubs. To confirm if a Bluetooth speaker is currently offered for your specific model, please ask the support team. They can provide the most up-to-date information regarding available features.
Can I buy a replacement bulb at the hardware store?
No, and you should not need one; the LED does not burn out the way a bulb does. When the light stays off, the usual cause is the pneumatic light switch or a loose air tube at the control box. At the box, move the air tube from a working air massage button onto the light port and press that button; if the light comes on, the light switch or its tube is the fault. The box is reachable through the front access panel.
The light button housing is broken. Is that a big repair?
No. It is replaced as a complete button assembly held by a nut under the deck, and every other function keeps working meanwhile. A hydro only tub with a single water button has no LED; the light comes with combination packages.

Still need help? Our team is always happy to assist. Open a ticket at ellasbubbles.com/support or call (800) 480-6850.

About this guide. Answers in the Ella’s Bubbles Support Center are compiled from real conversations with tub owners, our technicians’ notes and the product documentation, then reviewed by our team. Tub models and options have evolved over the years, so a detail here may differ slightly from your exact tub. If something looks different on yours, send us your serial number and a specialist will confirm it for your model.
