Outward U-Door Tubs on Video: Capri, Monaco, Lounger, Front Entry, Mobile, Big4One and ShaK

The outward U-door tubs on video are the Capri, Monaco, Front Entry, Mobile, Lounger, ShaK and Big4One, the seven models that use the Ella's Bubbles outward-swing U-shape door: a plastic composite and tempered glass door that swings outward 165 degrees and locks with a 3-latch gear and shaft mechanism. Four videos are gathered here: the Capri product tour, the Mobile dimension tour, a short ShaK testimonial and the Big4One installation tips. This article maps each video to its model, adds one line for the models without a video in this set, and points you to the current spec sheets for exact numbers.

Video 1: The Capri with Independent Foot Massage

Watch: The Ella Capri: Walk In Tub Featuring Independent Foot Massage with chapters and a full transcript.

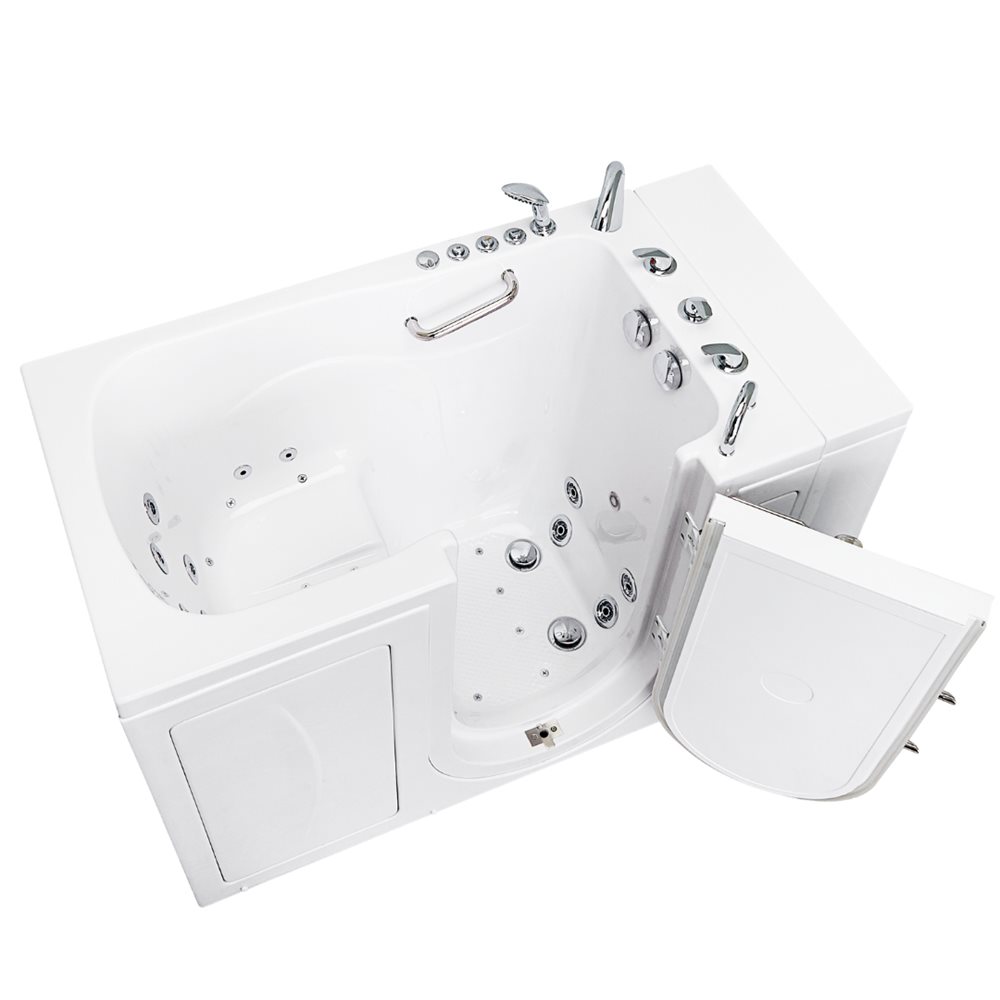

The Capri tour shows a 20 inch seat width, a 14 inch seat length, 24 inches of shoulder room and nearly 42 inches of interior length. It makes a fit point that is easy to miss: the outward-swing door needs about 21 inches of clear floor in front of the tub to open, so plan that space in front of the door side. It shows the three-shaft lock, the independent foot massage system with its own pump and intensity dial, the 5-piece fast-fill faucet with hand shower, the in-line water heater, chromatherapy, dual 2 inch drains and the optional four-fold screen and shower column. The current spec sheet gives the Capri's actual size as 30 by 52 by 40 inches, 85 gallons unoccupied, an 8 inch extension panel and a hydro system of 15 jets (9 seat, 6 foot) with an air system of 14 jets (8 seat, 6 foot) when the air package is chosen. The full profile is at Ella Capri 30x52.

Video 2: The Mobile and Its Interior Dimensions

Watch: Compact Acrylic Walk-In Tub With Outward Swing Door and Comfortable Seat with chapters and a full transcript.

The Mobile is the compact model for small bathrooms. The video gives 45 inches long and nearly 26 inches wide, a 19 inch seat width, a 13 inch seat length and a 36 inch interior length, then shows the exterior dimensions on screen. It demonstrates the outward-swing U-shaped door with its three-latch gear and shaft lock, the low threshold and textured floor, three-speed air massage with 14 air jets and auto purge, hydro massage with 15 jets, an intensity dial and foot jets, chromatherapy with the dual package, the 2-piece fast-fill faucet in chrome or brushed nickel with hand shower, the in-line heater, ozone, and the single oversized 2 inch drain with a large turn opener and an emergency pull chain. The current spec drawing agrees on the footprint, 45 inches overall length and 26 inches overall width, and adds a 39 1/4 inch height, a 165 degree door swing and a 19 1/4 inch door opening. The Mobile does not take an extension panel. See Ella Mobile 26x45: the smallest walk-in tub.

Video 3: The ShaK Testimonial

Watch: The ShaK: The World's Largest & Deepest Walk-In Tub with a full transcript.

This is a customer clip, not a spec tour, and it answers one question well: does a very tall bather fit? The bather, who says he is 6 feet 10 inches tall, describes being able to stretch out his legs for the first time in a tub in 22 years and enjoying the foot, calf and back massage. Treat it as proof of fit only; the numbers live on the ShaK spec sheet, which gives 36 by 72 by 39 inches, a 28 inch seat width, 145 gallons unoccupied and a shipping size of 39 by 74 by 49 inches at 429 pounds crated. The ShaK ships with the digital-controller air plus dual-hydro package included, with microbubble optional, and does not take an extension panel. See Ella ShaK 36x72: the largest single-seat walk-in tub.

Video 4: Big4One Installation Tips

Watch: Ella's Bubbles: Installation Tips For The Ella Big4One with chapters and a full transcript.

This installer video uses the Big4One, but the lessons apply to the whole outward-swing family. It shows a remodel where walls come down and the old tub comes out, then a fresh look at drain, water supply and electrical. The end panels, side panels and aprons come off before the tub is carried in. The tub is leveled on its adjustable legs, because an unlevel tub means a door that will not seal and can leak. The dual T-type four-port drains can use all four ports or two with the unused side capped; the installer shows individual P-traps and the connection to the main, with a 2 inch main recommended, though a T or Y into a 1.5 inch drain works. Accessible shut-off valves go near the tub with 3/4 inch supply lines, dedicated circuits get GFCI outlets and breakers, and access panels are designed into the remodel for future service. The family install guide is in installing the U-shape outward-swing family, part 1.

Models Without a Video in This Set

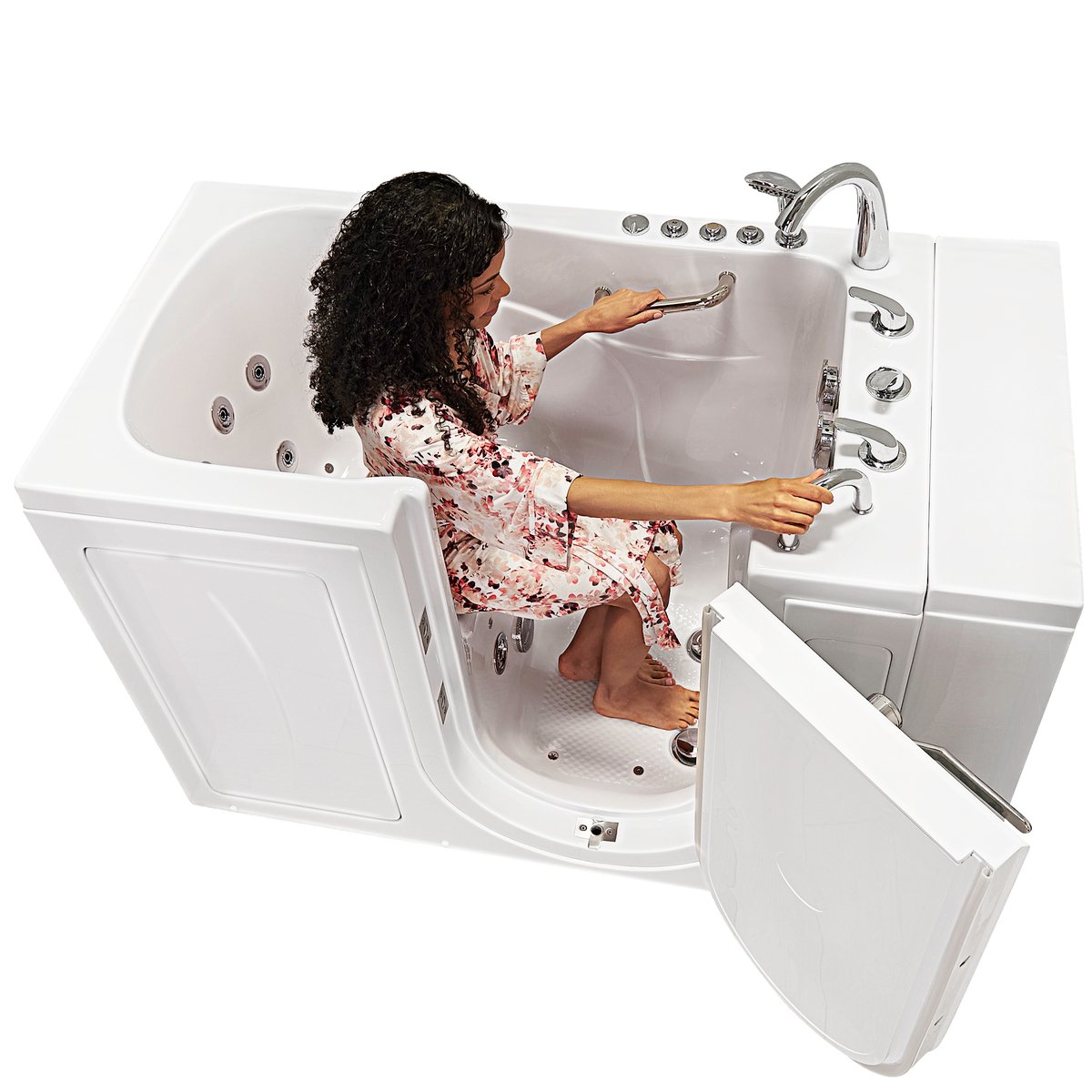

Ella Monaco

Outward-swing door · 32" x 52" x 39 1/4" (technical drawing) · Seat 22.5" x 13 3/4 in.

: 32 by 52 nominal, 165 degree door, 3 5/8 inch threshold on the drawing, 19 1/4 inch door opening. Extension panel available

Model ProfileProduct Page

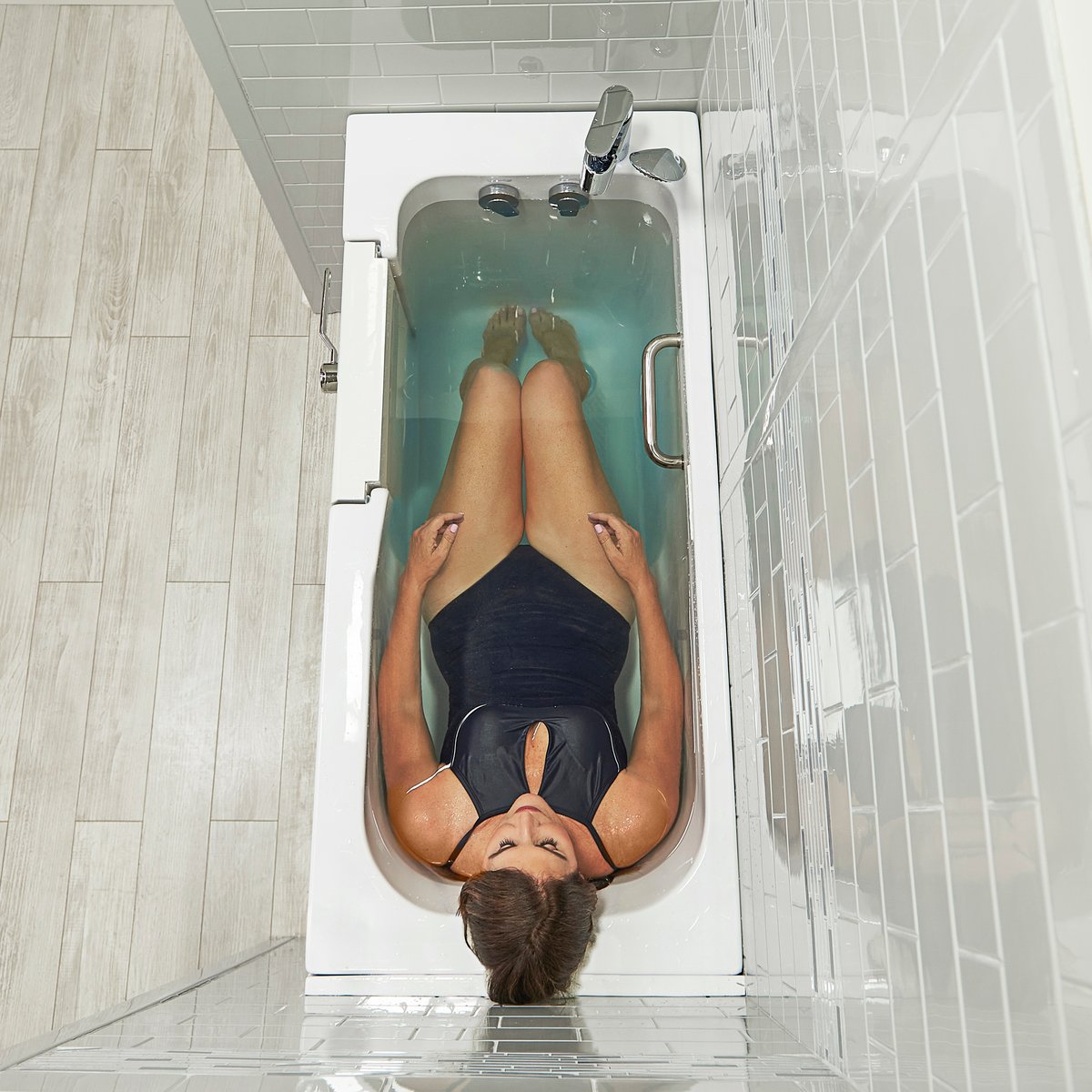

Ella Lounger

Outward-swing door · 27" x 59" x 40" · Seat 20" x 16 in.

: 27 by 59 by 40 inches, 20 inch seat, 2-piece 16 GPM faucet, 85 gallons, hydro of 17 jets (11 seat, 4 foot, 2 calf). Extension panel available

Model ProfileProduct Page

Ella Front Entry

Outward-swing door · 32" x 40" x 40" · Seat 25" x 13 1/2 in.

: 32 by 40 by 40 inches, 25 inch seat, door at the end of the tub, single 2 inch two-port drain, no LED with any package, no extension panel

Model ProfileProduct Page

Ella Big4One

Outward-swing door · 33 1/8" x 66" x 39.5" · Seat 24" x 21 1/4 in.

: 33 1/8 by 66 by 39 1/2 inches, 24 inch seat, 127 gallons unoccupied and 75 to 100 gallons occupied, digital air plus dual-hydro package included, no extension panel

Model ProfileProduct Page
