Ella Front Entry 32x40: The Compact End-Door Tub

Updated September 2026

▶Glossary7
  1. Size and Layout
  2. Single Drain and No LED
  3. Faucet and Electrical
  4. Watch the Front Entry
  5. Planning the Space
  6. Related Guides
  7. Common Questions

The Ella Front Entry walk-in tub is the shortest walk-in tub in the line, with the door at the end instead of the side: actual size 32 inches wide by 40 inches long by 40 inches high, a 25 inch seat, and 70 gallons unoccupied (25 to 55 occupied). It fits narrow spaces where a conventional tub or shower will not, and because the outward U-shape door faces the front it is the one Ella model that is not ordered as left-hand or right-hand.

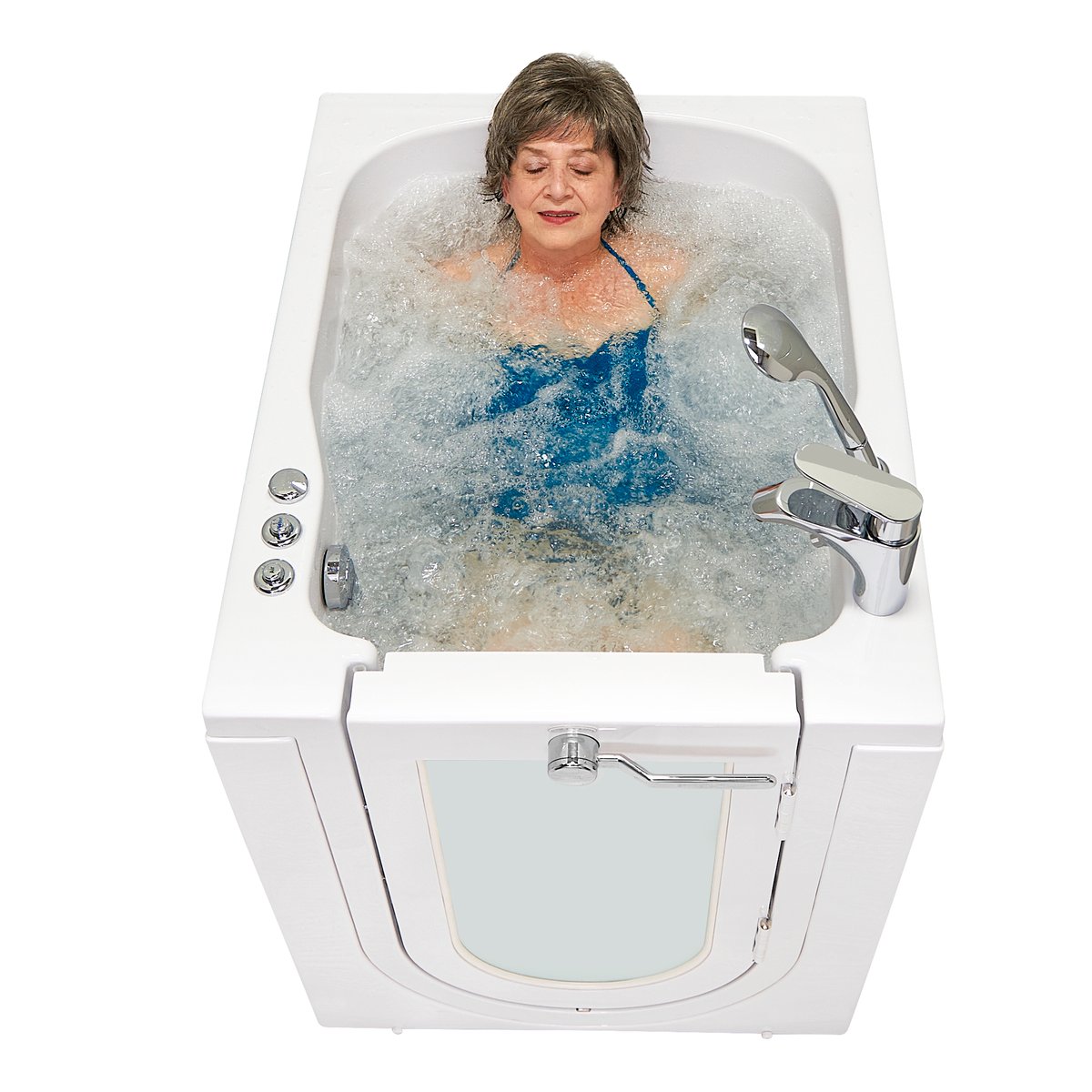

Senior woman relaxing in the Ella Front Entry walk-in tub with the outward-swing end door and hydro massage running
The Front Entry's door sits on the 32 inch end, so the tub can slide into a space only 40 inches long.

Size and Layout

  • Actual 32 x 40 x 40 in; crate 35 x 43 x 43 in; net 200 lb, shipping 280 lb.
  • Seat 25 in (spec sheet) or 24 in (video), 13.5 in long.
  • White composite and tempered glass U-door, 3-latch lock, swinging outward from the end; there is no left- or right-hand version. The outward U-door operation guide covers closing, locking and handle care.
  • Two removable side panels included for corner or single-wall placement; no back panel and no extension panel.

Single Drain and No LED

The Front Entry uses one 2 inch 2-port PVC drain (one end cap, two overflows, two chrome cable openers) with an emergency pull chain instead of dual drains. Packages: Air + Hydro, Hydro + Microbubble, Hydro, Soaking. There is no Hydro + Foot option, and the LED chromatherapy light is not included with any Front Entry package.

  • Hydro: 13 jets (11 seat, 2 calf), 7A pump, intensity dial, ozone, in-line heater 6A 650W.
  • Air: 16 jets (10 seat, 6 foot), 4.5A 500W pump with Auto Purge, which starts about 20 minutes after the air pump is turned off and runs 120 seconds.
  • Microbubble 1 HP 7.3A. Optional heated seat, digital controller, and seat cushions.

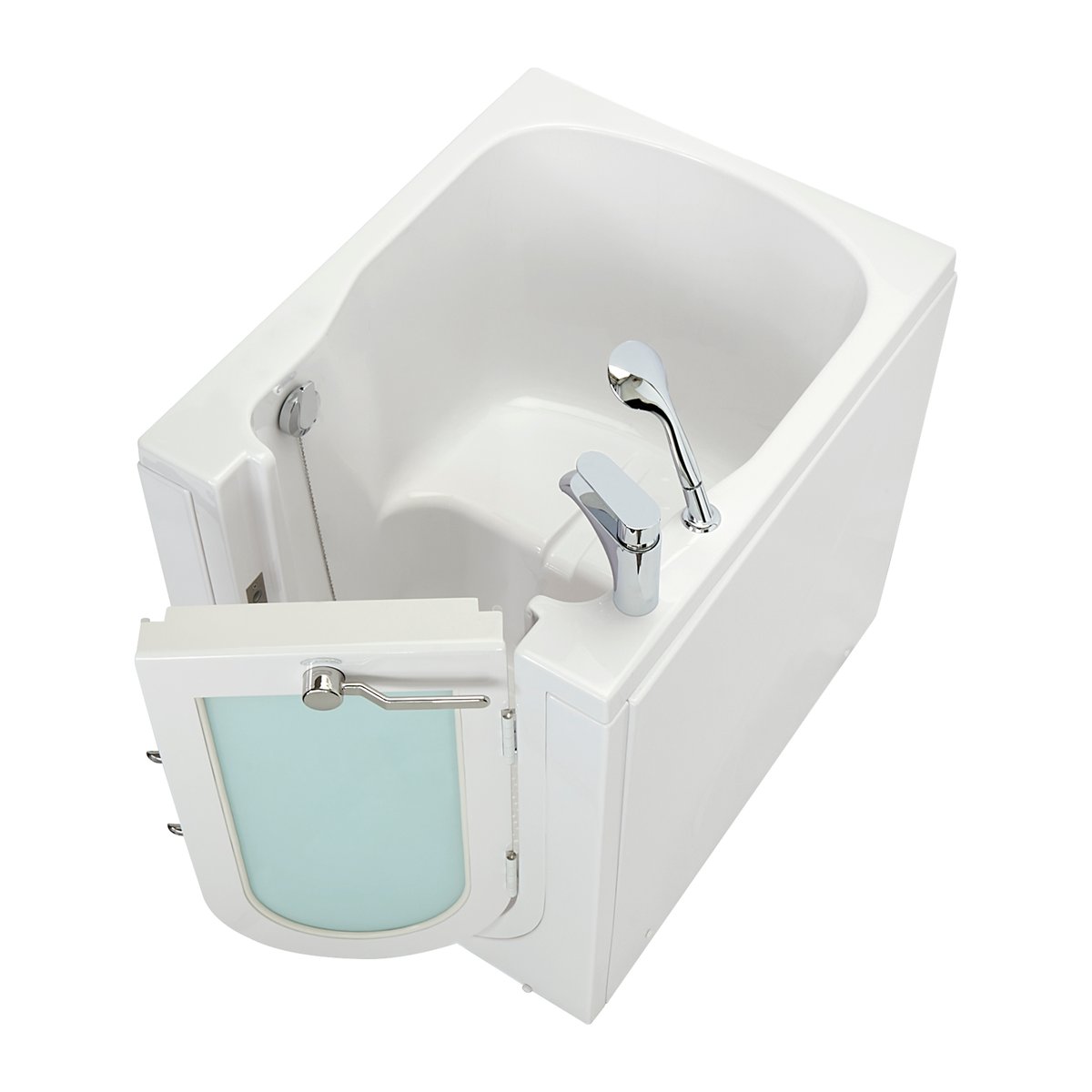

Angled overhead view of the white Ella Front Entry walk-in tub with the end door cracked open, chrome faucet and built-in seat
The single 2 inch drain and the 25 inch seat seen from above.

Faucet and Electrical

2-piece fast-fill faucet (up to 16 GPM) with two 3/4 in by 5 ft supply lines and a pull-out hand shower, in chrome or brushed nickel. Dedicated GFCI 110/120V 60Hz line(s): one for Hydro or Air + Hydro, two for Hydro + Microbubble or the heated seat, per the electrical requirements guide. The team recommends the Front Entry and Mobile for single-wide mobile homes and confirms the Soaking version is available.

Watch the Front Entry

Compact Easy-Access Walk-In Tub with Outward Door and Low Threshold
Chapters in this video
  1. 0:00 Compact Tub for Small Spaces Ella's Bubbles introduces a compact walk-in tub designed for smaller bathrooms, featuring an oversized seat for comfort.
  2. 0:46 Safety and Durability Features The tub features a low threshold, textured floor for safety, and a durable, easy-to-clean acrylic surface.
  3. 1:00 Innovative Jetting and Sterilization This tub includes three-speed air massage with auto purge, powerful hydrotherapy with an inline heater, and ozone sterilization.
  4. 1:29 Fast Drain and Faucet Options The tub comes with an oversized two-inch drain for fast draining and offers a two-piece fast-fill faucet set with a hand shower.
  5. 1:50 Secure Door and Comfort Options The U-shaped door has a secure, leak-proof seal, and optional heated seats and cushions add extra comfort.

The video presents the 24 inch seat width and 13.5 inch seat length, the air and hydro systems, the oversized 2 inch drain with emergency pull chain, the 2-piece faucet, and the removable side panels. Watch: Compact Easy-Access Walk-In Tub with Outward Door & Low Threshold for Seniors with chapters and a full transcript.

Front Entry Walk-In Tub: Acrylic, Outward Swing Door and Low Step Entry
Chapters in this video
  1. 0:00 Front Entry Walk-In Tub Overview Ella's Bubbles introduces the compact Front Entry walk-in tub, highlighting its comfortable oversized seat and removable side panels.
  2. 0:28 Safety Features And Acrylic Surface The tub features a low threshold, textured floor for safety, and a durable, easy-to-clean acrylic surface.
  3. 0:42 Innovative Jetting And Hydrotherapy This tub includes three-speed air massage with auto purge, powerful hydrotherapy with an inline heater, and ozone sterilization.
  4. 1:10 Fast Drain And Faucet Options The tub has an oversized two-inch drain with an emergency pull chain and offers a two-piece fast-fill faucet set with a hand shower.
  5. 1:31 Secure Door And Comfort Options The U-shaped door features a unique three-latch mechanism for a leak-proof seal, with optional heated seats and cushions for added comfort.

This tour covers the 24 inch seat, removable side panels, three-speed air, hydro with heater, the single 2 inch drain with pull chain, and the U-door with 3-latch lock. Watch: Front Entry Walk-In Tub u2013 Acrylic, Outward Swing Door & Low Step Entry with chapters and a full transcript.

Planning the Space

Because the door swings out from the end, the clear floor space must be in front of the 32 inch end rather than along the side; the outward door swing clearance article shows the envelope to plan for. With two side panels included the tub can sit against a single back wall, in a corner, or in a narrow alcove, and the freestanding and exposed-side installations guide explains what to do when more than one side shows. For narrow spaces that are longer, compare the Mobile 26x45 and the Flow 28x48.

Common Questions

Is there a 60 inch Front Entry?
No, the Ella Front Entry walk-in tub is only available in one size, 32 inches wide by 40 inches long. It is the shortest walk-in tub in the Ella line and does not use an extension panel to increase its length.
How tall is the Ella Front Entry 32x40 walk-in tub?
The Ella Front Entry 32x40 walk-in tub is 40 inches high, according to the current spec sheet. An older blog post previously stated the height as 42 inches.
Can I choose a left-hand or right-hand door?
No, you cannot choose a left-hand or right-hand door for the Ella Front Entry walk-in tub. The door is located at the front end of the tub and swings outward, with its swing fixed at the factory. This makes the Front Entry the only Ella model that does not have a left or right version; the drain side is at the back end of the tub.
Does it have the LED chromatherapy light?
No. The LED is not included with any Front Entry package, and independent foot massage is not offered on this model either.
Can it be installed with only one side accessible?
Yes, the Ella Front Entry walk-in tub can be installed with only one side accessible. Two removable side panels are included, allowing either side to be exposed. There is no back panel, so the back end of the tub should sit against a wall.
Is a soaker version available?
Yes, a soaker version of the Ella Front Entry walk-in tub is available. The Soaking package does not include jets or pumps and therefore requires no dedicated electrical circuit, unless you choose to add the optional heated seat. You can learn more about soaking-only walk-in tubs.
Is it a good choice for a mobile home?
Yes, the Ella Front Entry walk-in tub is a good choice for a mobile home. The Ella's Bubbles team recommends the Front Entry and the Mobile model for single-wide mobile homes due to their small footprint and the convenient door position.
Will a tall bather fit?
The Front Entry is compact, with a 13.5 inch seat length and a short footwell, so bathers around 6 feet tall may find it tight and often prefer a 30 by 52 or longer tub. Measure seated head-to-feet length against the drawing, or ask the team.
Which faucet does it use?
The Ella Front Entry walk-in tub uses the 2-piece fast-fill faucet with a pull-out hand shower. This faucet is available in chrome or brushed nickel finishes. The faucet comparison explains how this 2-piece set differs from the 5-piece set.

For anything model-specific, open a ticket at ellasbubbles.com/support or call (800) 480-6850.

About this guide. Answers in the Ella’s Bubbles Support Center are compiled from real conversations with tub owners, our technicians’ notes and the product documentation, then reviewed by our team. Tub models and options have evolved over the years, so a detail here may differ slightly from your exact tub. If something looks different on yours, send us your serial number and a specialist will confirm it for your model.
