Support Center / Walk-In Tub Models / Ella Lounger 27x59: Narrow Tub for Taller Bathers
Back to Walk-In Tub Models

Ella Lounger 27x59: Narrow Tub for Taller Bathers

Updated September 2026

▶Glossary7
  1. How a Narrow Tub Fits a Tall Person
  2. Packages, Jets, Controls
  3. Faucet, Drains, Electrical
  4. Watch the Lounger
  5. Lounger Versus the Ultimate and the LayDown
  6. Related Guides
  7. Common Questions

The Ella Lounger walk-in tub is the narrow tub for taller bathers who do not have a wide space: actual size 27 inches wide by 59 inches long by 40 inches high (27 x 60 nominal; the video gives 26 3/4 inches wide), a 20 inch seat, and 85 gallons unoccupied (45 to 65 occupied). Instead of width it adds length, with nearly 51 inches of interior and a reclined seat, behind an outward-swing U-shape door.

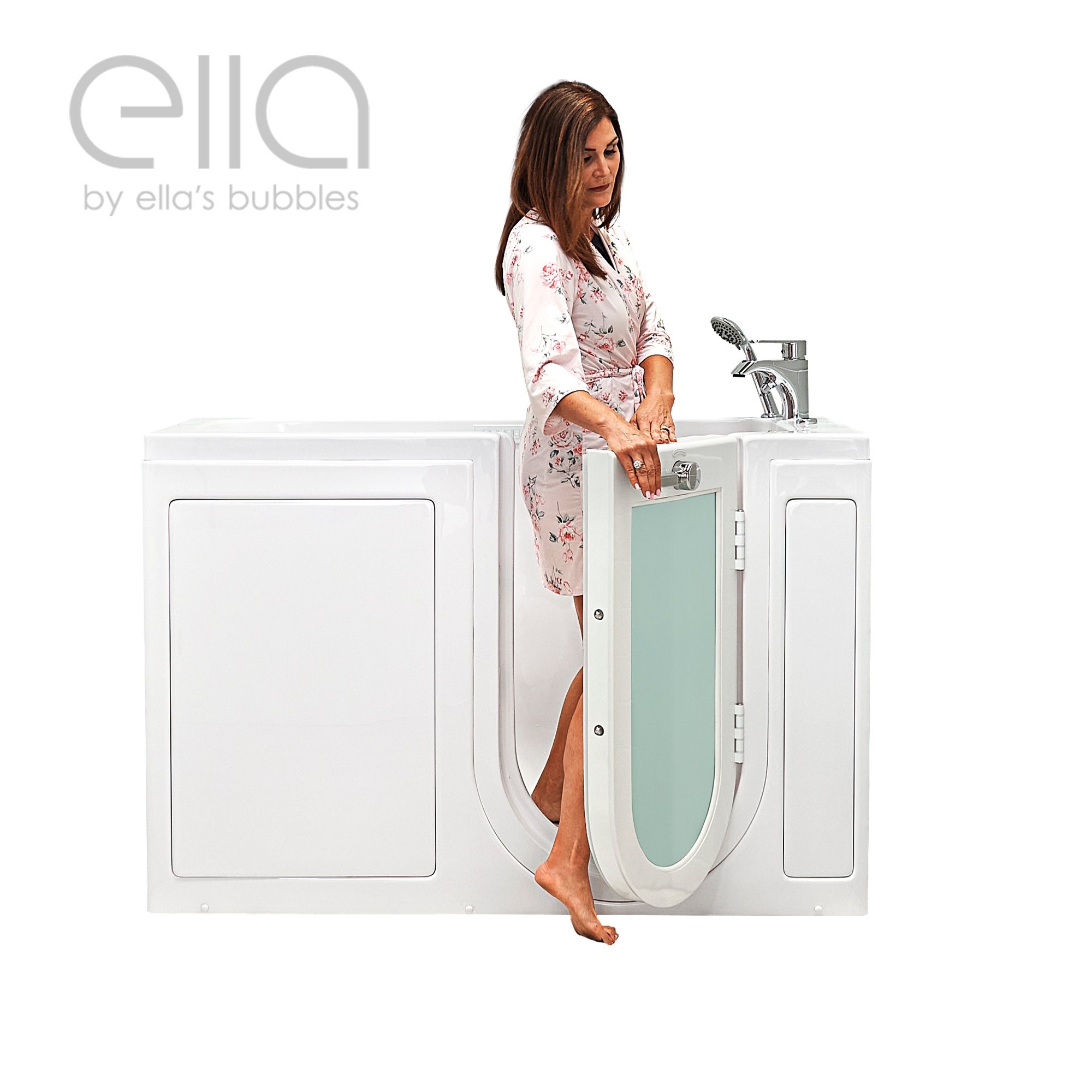

Woman in a floral robe stepping into the Ella Lounger walk-in tub through the outward swing glass door
The Lounger's outward U-shape door on its three-latch lock; the door begins about 28 3/4 inches from the wall.

How a Narrow Tub Fits a Tall Person

Instead of width the Lounger adds length: nearly 51 inches of interior, a seat about 20 inches long, 21.5 inches of shoulder width, and a 15.5 inch soaking depth. The team recommends it, along with the Ultimate, for bathers around 6 ft tall; the seat size and soaking depth guide shows how to measure yourself against the drawing.

  • Actual 27 x 59 x 40 in; crate 30 x 62 x 49 in; net 215 lb, shipping 365 lb.
  • White composite and tempered glass U-door, 3-latch lock, 165 degree swing needing 21 in of clearance. The team notes the door begins about 28 3/4 in from the wall, which helps beside a toilet; see the outward door swing clearance article.
  • Extension panel available for 60 in alcoves; reversible end panel and wall grab bar included.

Packages, Jets, Controls

  • Hydro: 17 jets (11 seat, 4 foot, 2 calf), 7A 900W pump, ozone, in-line heater 6A 800W.
  • Hydro + Independent Foot: pumps of 5A and 7A, two dials, push buttons.
  • Air: 16 jets (8 seat, 8 foot), 4.5A 500W pump with Auto Purge, which starts about 20 minutes after the air pump is turned off and runs 120 seconds. The Air + Hydro package comes with the digital controller only.
  • Hydro + Microbubble, Hydro, and Soaking are also offered. LED 0.5A with dual packages (the ".04AMP" on the sheet is a misprint). Optional heated seat.
  • Hydro + Air + Independent Foot together is a special order confirmed by the team.

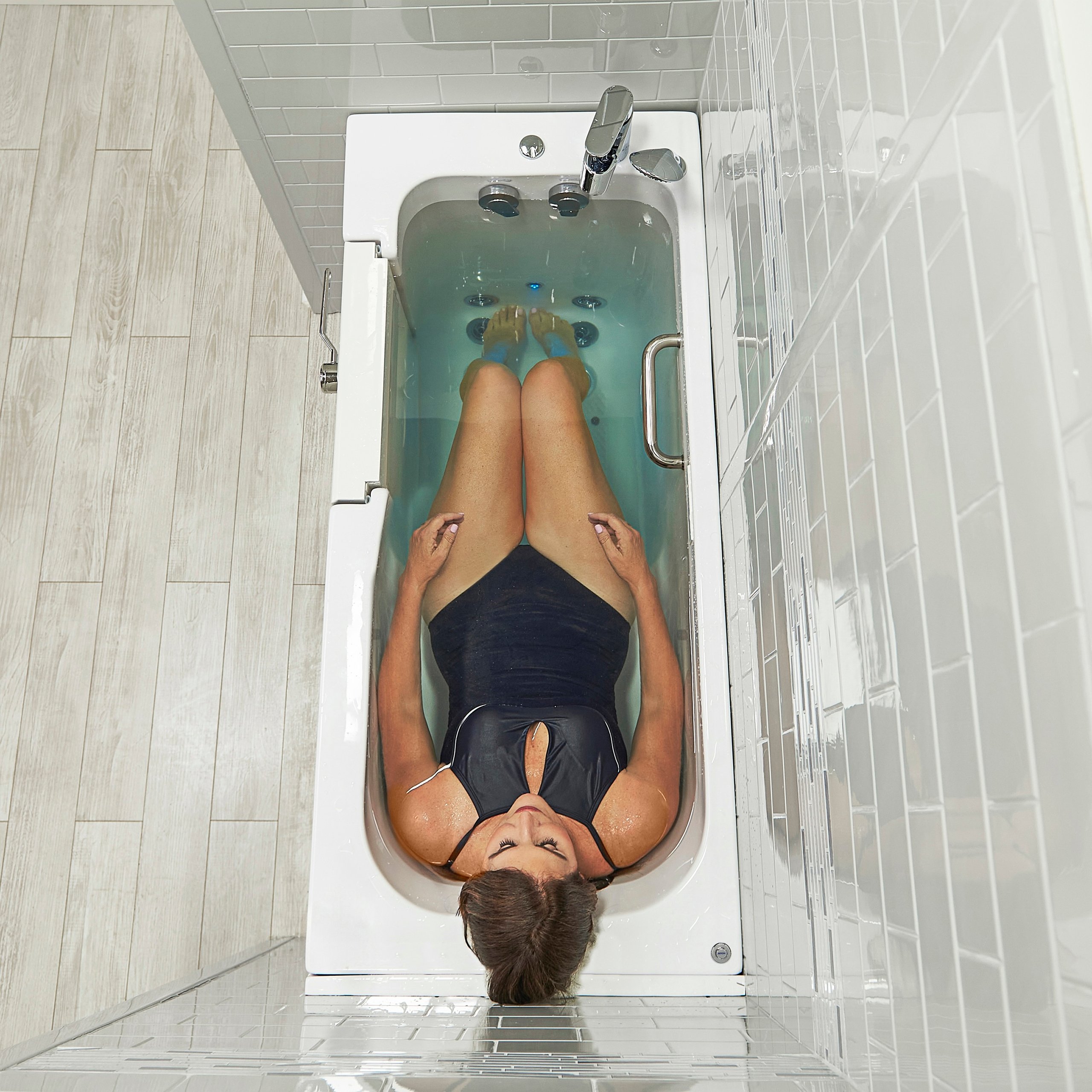

Overhead view of a woman soaking full length in a hydro Ella Lounger walk-in tub, left-hand configuration
The reclined seat and long footwell let a tall bather stretch out in a 27 inch wide shell.

Faucet, Drains, Electrical

2-piece fast-fill faucet (up to 16 GPM) in chrome or brushed nickel with 5 ft supply lines (one video also mentions a 5-piece choice); dual 2 in 4-port T-type drains (use two or four ports and cap the rest); dedicated GFCI 110/120V 60Hz service, with the circuit count depending on the package as shown in the electrical requirements guide.

Watch the Lounger

Lounger Lay Down Walk In Tub with Therapy Jets
Chapters in this video
  1. 0:00 Introducing The Lounger Walk-In Tub This chapter introduces the Lounger walk-in tub, designed for taller bathers seeking comfort and relaxation in a space-saving design.
  2. 0:30 Lounger Soaking Depth And Measurements This chapter explains how the soaking depth of an Ella's Bubbles walk-in tub is determined and provides the Lounger's specific measurements.
  3. 1:23 Innovative Jetting And Features This chapter highlights the Lounger's innovative jetting design, including hydro massage, air massage, ozone sterilization, and optional accessories.
  4. 2:30 Dual Drain Technology This chapter showcases Ella's industry-leading dual drain technology, which provides fast and efficient draining for maximum comfort.

The video covers the 20 inch seat, 21.5 inch shoulder width, roughly 20 inch seat length, nearly 51 inch interior, 15.5 inch soaking depth, 21 inch outswing clearance, hydro with foot and calf jets, and the 2-piece faucet. Watch: Lounger Lay Down Walk In Tub with Therapy Jets for Luxury & Safe Bathing with chapters and a full transcript.

The Lounger: Walk-In Tub with Hydro Jets and Low-Entry Threshold
Chapters in this video
  1. 0:00 Introducing The Lounger Walk-In Tub The Lounger walk-in tub is introduced, highlighting its space-saving design, comfortable length, and secure door mechanism.
  2. 0:26 Innovative Jetting and Sterilization The video showcases the tub's air massage with auto purge, hydro massage with an inline heater, foot jets, and ozone sterilization.
  3. 0:52 Dual Drain Technology Ella's industry-leading dual drain technology is explained, demonstrating its fast and efficient draining capabilities.
  4. 1:20 Installation and Faucet Options The video covers the simple plug-in electronics, included supply lines, and choices for fast fill faucet sets with a hand shower.
  5. 1:42 Relaxing Features Chromotherapy lighting and an optional heated seat and backrest are presented as features for added relaxation and comfort.

This overview gives the 26 3/4 inch width and roughly 60 inch length and shows the 3-latch door, dual 4-port drains, dedicated GFCI power, 5 ft supply lines, and the chrome or brushed nickel 2-piece faucet. Watch: The Lounger: Walk-In Tub with Hydro Jets & Low-Entry Threshold for Relaxed Bathing with chapters and a full transcript.

Lounger Walk In Tub Size and Dimension Video

A short size and dimension visual of the Lounger footprint.

Lounger Versus the Ultimate and the LayDown

The Ultimate is the other tub the team suggests for bathers around 6 feet: it is 30 inches wide with a stainless inward door and independent foot massage standard, so it suits a wider space with no swing clearance. The LayDown tubs have no seat at all and are the choice for lying flat. The Lounger is the narrow, seated middle ground, and the outward U-door family video tour places it beside the Capri, Monaco and Big4One.

Common Questions

Does the Lounger offer hydrogen therapy?
No, the Ella Lounger walk-in tub does not offer hydrogen therapy. Hydrogen therapy is exclusively available on the Ella Standard60 walk-in tub model.
How tall is the Lounger?
The Ella Lounger walk-in tub is about 40 inches tall to the top of its deck. Its actual dimensions are 27 inches wide by 59 inches long by 40 inches high.
Is the Lounger a lay-down tub?
No, the Ella Lounger is not a lay-down tub. The Lounger walk-in tub features an outward-swing U-shape door and a reclined seat with a long 20 by 16 inch footwell, designed for taller bathers to stretch out. LayDown tubs, in contrast, have no seat at all and are intended for lying flat.
Will it fit through a 27 or 28 inch doorway?
The shell is 27 inches wide (26 3/4 in the video), so the opening must be wider than that with the side panels removed; the crate is 30 inches wide and can be opened outside. Use the doorway measurement guide for every turn along the route.
Is it right for a 6 ft 1 bather with 22 inch shoulders?
The Lounger is built for bathers around 6 feet, with 21.5 inches of shoulder width at the backrest and a 20 inch seat, so a 22 inch shoulder measurement is at the edge of the fit. Measure seated against the drawing, and ask the team, who may suggest the Ultimate or Big4One for broader shoulders.
Can I get independent foot massage on the Lounger?
Yes, you can get independent foot massage on the Ella Lounger walk-in tub. The Hydro + Independent Foot package is available, which includes two pumps and two dials for separate control. Adding air massage to this combination (Hydro + Air + Independent Foot) is a special order that needs to be confirmed by the team.
Is a 60 gallon water heater enough?
A 60-gallon water heater may not be enough for the Ella Lounger walk-in tub. The Lounger holds 85 gallons when empty and between 45 to 65 gallons with a bather inside. The team recommends a 75-gallon water heater or larger for a comfortable fill; you can consult the water heater guide for more details.
Does it fill a 60 inch alcove?
Yes, the Ella Lounger walk-in tub will fit a 60-inch alcove. An extension panel is available specifically for the Lounger to accommodate 60-inch alcoves, and a reversible end panel is included with the tub.

For anything model-specific, open a ticket at ellasbubbles.com/support or call (800) 480-6850.

About this guide. Answers in the Ella’s Bubbles Support Center are compiled from real conversations with tub owners, our technicians’ notes and the product documentation, then reviewed by our team. Tub models and options have evolved over the years, so a detail here may differ slightly from your exact tub. If something looks different on yours, send us your serial number and a specialist will confirm it for your model.
