Ella Mobile 26x45: The Smallest Walk-In Tub

Updated September 2026

▶Glossary7
  1. Dimensions
  2. Doorways, Alcoves, and Mobile Homes
  3. Jets, Drain, Controls
  4. Faucet
  5. The Mobile on Video
  6. Related Guides
  7. Common Questions

The Ella Mobile 26x45 is the smallest walk-in tub Ella's Bubbles makes: 45 inches long, 26 inches wide (the video quotes 25 3/4), and 39 1/4 inches high, with an outward-swing U-shape door, a 19 to 20 inch seat, and a step-in of about 3 3/4 inches. It is the model to look at when a 52 inch tub will not fit the room or will not pass the doorway, and it still carries a full hydro or air and hydro therapy package.

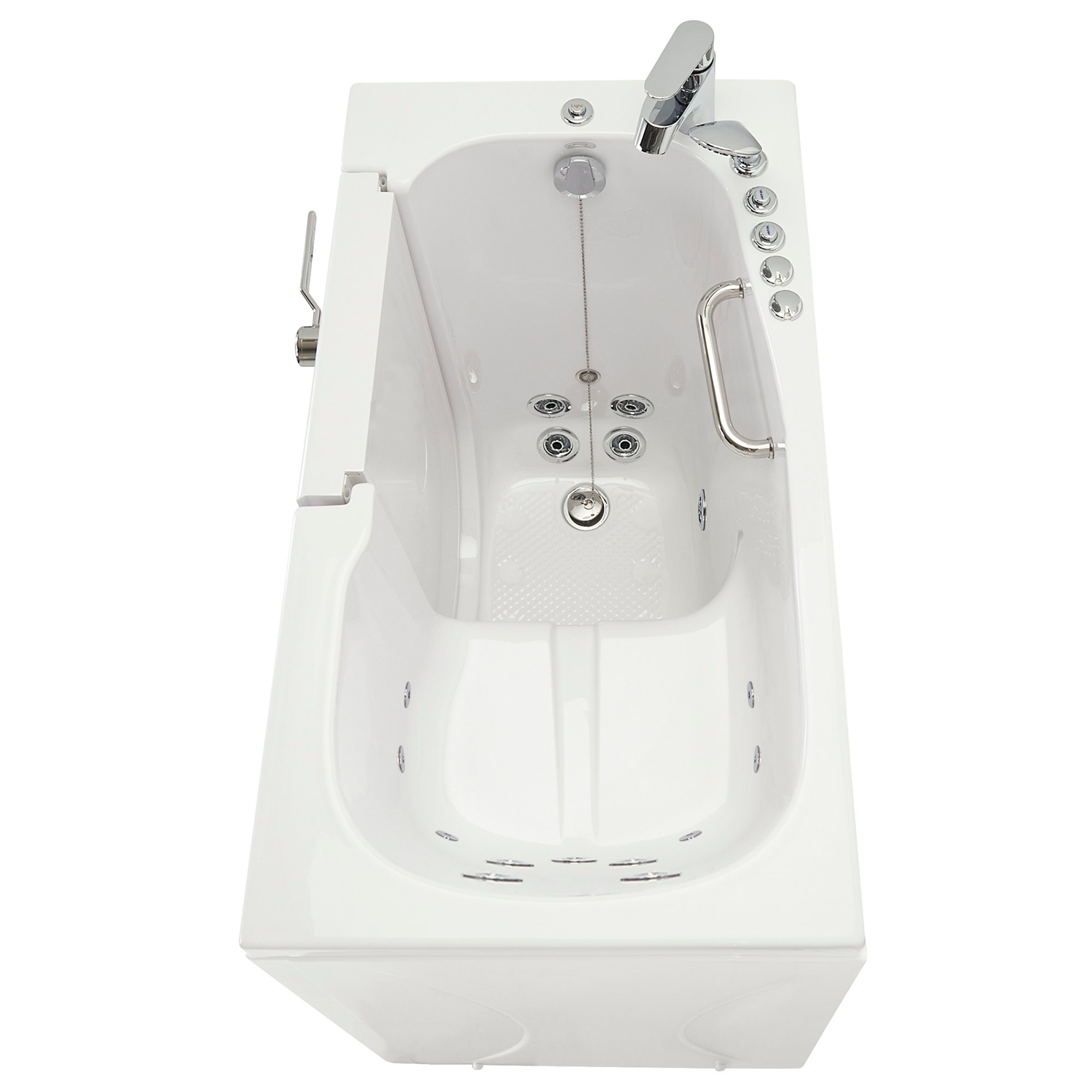

Overhead view of the Ella Mobile 26x45 walk-in tub interior showing hydro jets, chrome faucet, grab bar, and textured floor
The Mobile packs a full seat, grab bar, and jets into a 45 inch footprint.

Dimensions

  • Length 45 in; interior length 38 7/8 in; width 26 in; height 39 1/4 in; backrest 101 degrees.
  • Door 19 5/8 in wide with a 19 1/4 in opening, 165 degree outward swing, 3-latch gear-and-shaft lock.
  • Seat 19 in (video) to 20 in (manual); the dimension video shows a 13 in seat length and about 36 in of interior.
  • The capacity and weight lines on the spec sheet are printed as images; use the product page for those figures, or ask your Ella dealer or the team at (800) 480-6850.

Doorways, Alcoves, and Mobile Homes

For a 25 inch opening our team names the Mobile as the only option, and only with the door frame removed so the 26 inch shell can pass. No extension panel is offered, so it suits a 45 inch space or a corner rather than a 60 inch alcove. Our team recommends it, along with the Front Entry, for single-wide mobile homes; the name refers to its compact size, not to mobile homes alone. Because the U-door swings outward 165 degrees, leave clear floor in front of the tub; see outward door swing clearance and our doorway measurement guide before you order.

Jets, Drain, Controls

  • Air: 14 jets, three-speed pump with Auto Purge.
  • Hydro: 15 jets, intensity dial, in-line heater, ozone.
  • Packages follow the outward-door family menu (Air + Hydro, Hydro + Foot, Hydro + Micro, Hydro, Soaking); LED chromatherapy comes with the dual package. Because the equipment sits under the seat, this compact frame carries at most two systems; see therapy combinations by model.
  • One oversized 2 in drain with an easy-turn opener and emergency pull chain, not a dual drain.
  • Optional digital touchpad and heated seat and backrest.

Faucet

The Ella 2-piece single-lever fast-fill faucet in chrome or brushed nickel is included: solid brass spout, diverter button, two 3/4 in by 5 ft supply lines, and a 5-setting hand shower on a 5 ft hose (1.9 GPM; fill rate designed for 16 GPM). Cut-outs: 2-1/2 in faucet hole, 1/3 in rod holes, 7/8 in diagonal hand-shower hole. One video mentions a 5-piece option; confirm at order time. The differences are explained in 2-piece vs 5-piece fast-fill faucets.

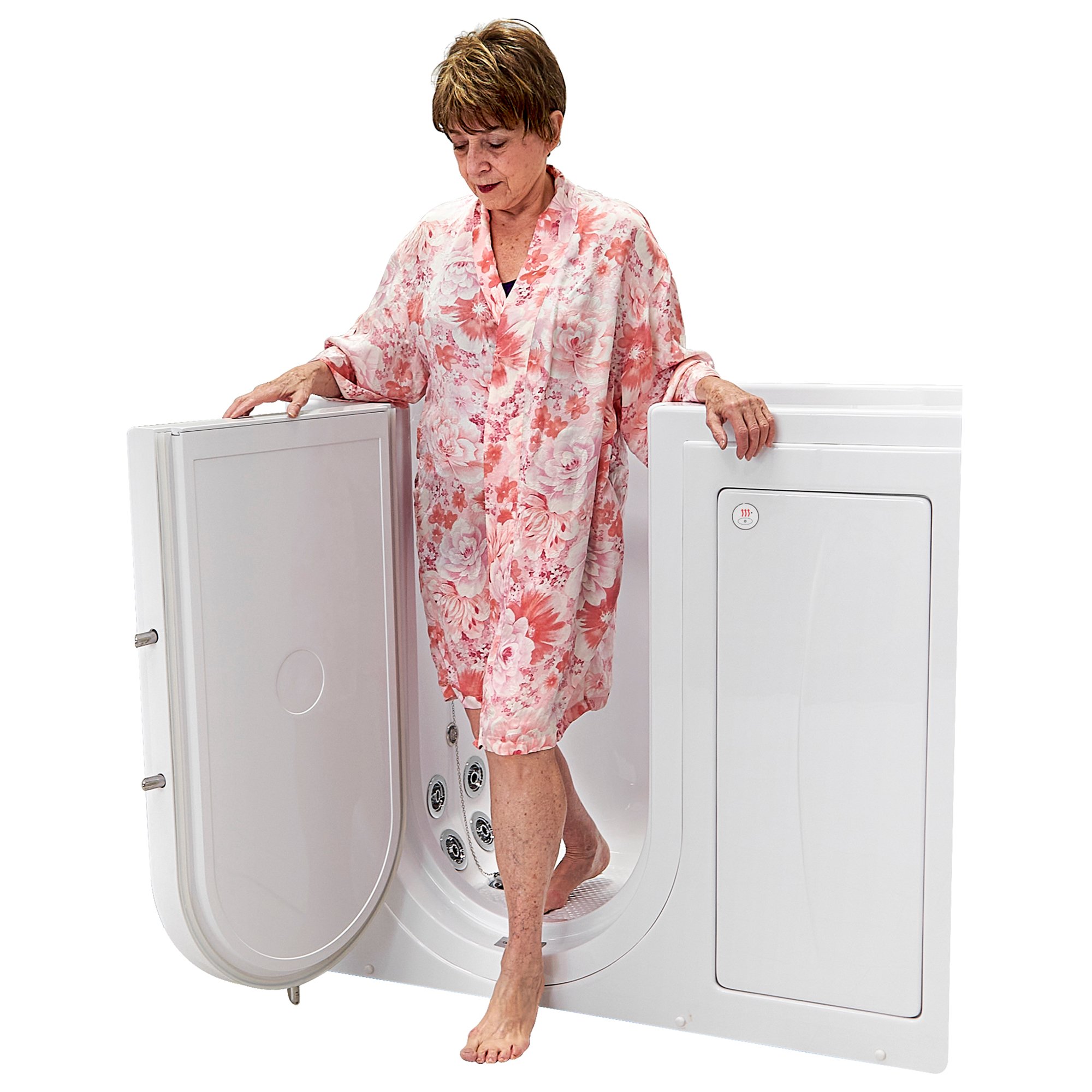

Senior woman stepping out of the Ella Mobile walk-in tub with the outward-swing door fully open
The outward-swing door opens 165 degrees for an easy step out.

The Mobile on Video

Mobile Acrylic Walk-In Tub: Space-Saving Design for Small Bathrooms
Chapters in this video
  1. 0:00 Ella Mobile Walk-In Tub Overview The Ella Mobile walk-in tub is introduced as a compact bathing solution for smaller bathrooms, highlighting its dimensions and generous seat width.
  2. 0:19 Door, Safety, and Surface Features The video showcases the easy-open outward swing U-shaped door, low threshold, textured floor, and durable acrylic surface of the tub.
  3. 0:43 Innovative Jetting and Massage Options Ella's innovative jetting design is featured, including the three-speed air massage with auto purge and the powerful hydro massage with intensity control.
  4. 1:20 Dual Massage, Faucet, and Heater The dual massage package with LED light chromotherapy is shown, along with the fast-fill faucet set, hand shower, and inline water heater.
  5. 1:47 Ozone, Drain, and Emergency Chain Eco-friendly ozone sterilization, the large easy-turn drain opener, oversized two-inch drain, and emergency pull chain are presented.

The video covers the 45 inch length and nearly 26 inch width, the 19 inch seat, the 3-latch outward door, 14 air jets with Auto Purge, 15 hydro jets, the 2-piece faucet, and the oversized 2 inch drain with pull chain. Watch: Mobile Acrylic Walk-In Tub: Space-Saving Design for Small Bathrooms with chapters and a full transcript.

Mobile Acrylic Walk-In Tub with Outward Swing Door and Seat
Chapters in this video
  1. 0:00 Compact Tub Dimensions The video introduces the Mobile walk-in tub, highlighting its compact size for smaller bathrooms.
  2. 0:18 Outward Swing Door Features The tub's outward swing door, low threshold, and textured floor are shown for easy and safe entry.
  3. 0:34 Jetting and Sterilization The tub's acrylic surface, air massage with auto purge, hydro massage, and ozone sterilization are presented.
  4. 1:09 Drain and Faucet Options The oversized drain, fast drain system, and available Fast Fill faucet sets are demonstrated.
  5. 1:35 Additional Comfort Options Chromotherapy, a digital touch pad, and a heated seat and backrest are shown as additional options.

This clip quotes the 25 3/4 inch width and shows air and hydro massage, chromatherapy, the digital touchpad and heated seat options, and the faucet choices. Watch: Mobile Acrylic Walk-In Tub with Outward Swing Door & Seat u2013 Easy Entry Bathing with chapters and a full transcript.

Mobile Walk In Tub Size and Dimension Video

The dimension video shows the seat width, seat length, and interior length in proportion so you can picture yourself in the tub before measuring your room.

Common Questions

Does the Mobile have dual drains?
No. The Mobile uses one oversized 2 inch drain with an easy-turn opener and an emergency pull chain. The Mobile and Front Entry are the two outward-door models with a single drain; the rest of the line uses the dual drain system.
What are the Mobile interior dimensions?
The Ella Mobile walk-in tub has a 19-inch seat width, a 13-inch seat length, and approximately 36 inches of interior length, according to the dimension video. If there are any discrepancies, the spec sheet is the governing document for these figures.
Will the Mobile fit through a 26 or 27 inch doorway?
The shell is 26 inches wide, so a 27 inch doorway is workable with the panels removed. For a 25 inch opening the door frame must come off. Measure every doorway and turn along the path to the bathroom, not just the bathroom door.
Can the Mobile fill a 60 inch alcove?
No extension panel is offered for the Mobile, so it is best in a 45 inch space or a corner. For a standard 60 inch alcove, a 52 inch model with its included extension panel is the better fit; see alcove fit and extension panels.
Is the Mobile available without jets?
Yes, the Ella Mobile walk-in tub is available without jets. The "Soaking" package is an option on the menu, which means the tub will have no jets and no jet holes. A plain soaker tub does not require an electrical outlet unless you choose to add the optional heated seat.
Can I get three therapies on the Mobile?
No, the Ella Mobile walk-in tub cannot accommodate three therapy systems. Its compact frame is designed to carry a maximum of two systems, such as the Air + Hydro or Hydro + Microbubble packages. The Royal, Monaco, and Transfer32 models are the smallest tubs that can support three therapy systems.
Is the Mobile a good choice for a mobile home?
Yes, the Ella Mobile walk-in tub is a good choice for mobile homes. Our team specifically recommends the Mobile and the Front Entry models for single-wide mobile homes due to their narrow shells. It is important to review the floor and drain planning guidelines that apply to mobile home installations.
How much water does the Mobile hold?
The capacity and weight lines on the Mobile spec sheet are printed as images rather than text, so please use the product page or ask your Ella dealer or the team at (800) 480-6850 for the current figures before sizing a water heater.
Can a folding glass screen be added to the Mobile?
A folding glass screen can be added to the Ella Mobile walk-in tub if it is sufficiently small. However, our team advises that the standard 4-fold screen may be too wide for this particular tub model. Before ordering, please consult with the team regarding screen fit for your specific drain side.

For anything model-specific, open a ticket at ellasbubbles.com/support or call (800) 480-6850.

About this guide. Answers in the Ella’s Bubbles Support Center are compiled from real conversations with tub owners, our technicians’ notes and the product documentation, then reviewed by our team. Tub models and options have evolved over the years, so a detail here may differ slightly from your exact tub. If something looks different on yours, send us your serial number and a specialist will confirm it for your model.
