Ella Royal 32x52: Widest Stainless-Door Seat and Triple Therapy

Updated September 2026

▶Glossary6
  1. Size and Fit
  2. Packages and Jets
  3. Features, Faucet, Electrical
  4. The Royal on Video
  5. Related Guides
  6. Common Questions

The Ella Royal 32x52 is the widest walk-in tub in our stainless-steel inward-swing door family and the only one offered with the triple Hydro + Air + Microbubble package. The spec sheet lists an actual size of 31.5 inches wide by 52 inches long by 35 inches high, a 23 inch seat (the widest in the stainless family), and 100 gallons unoccupied (45 to 65 occupied).

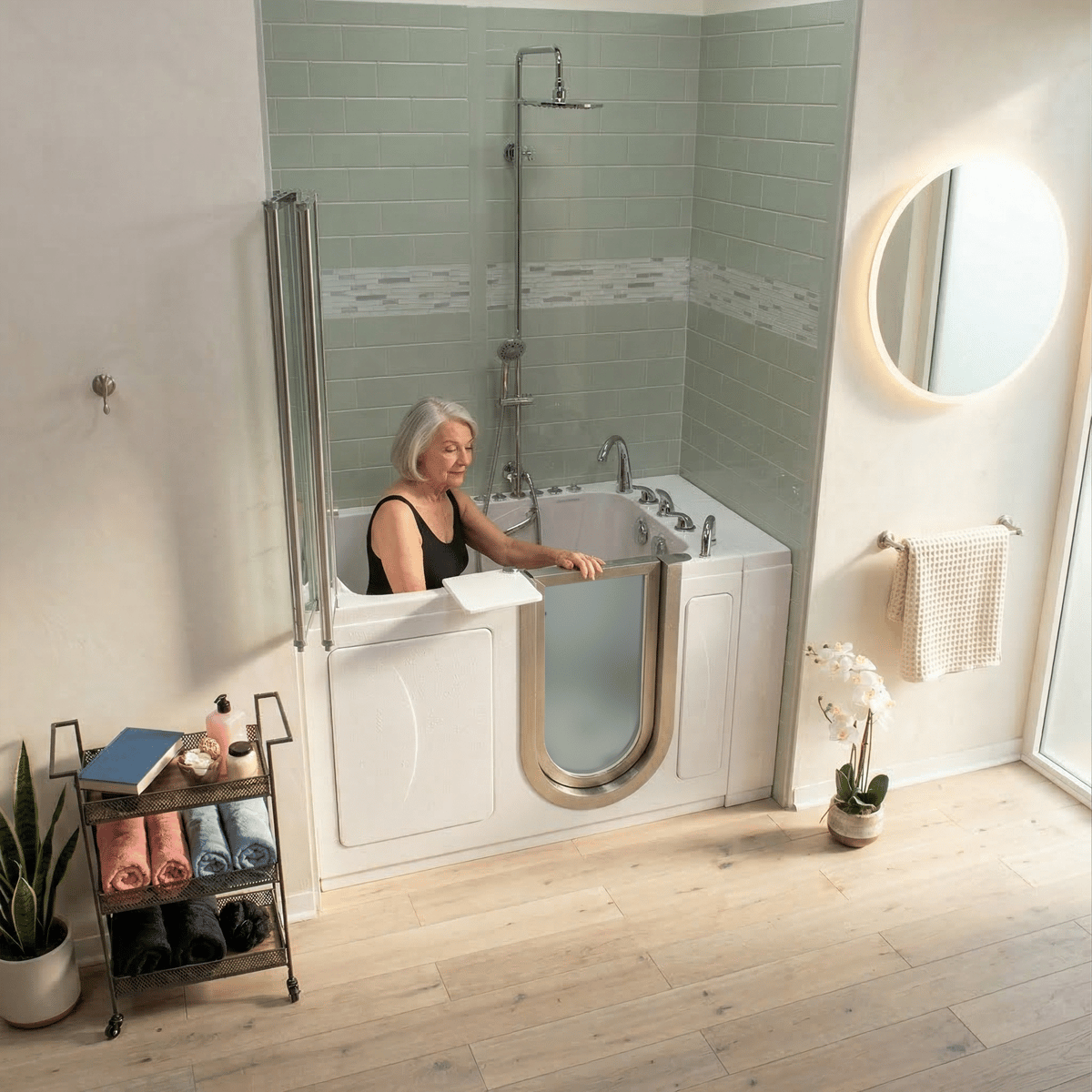

Senior woman seated inside the Ella Royal walk-in tub with the stainless door open and an overhead shower column
The Royal with the door open and the optional shower column.

Size and Fit

  • Actual 31.5 x 52 x 35 in; crate 36 x 57 x 46 in; net 230 lb, shipping 320 lb.
  • Seat 23 in on the spec sheet (the manual and video say 24 in), about 13 in long, with a soaking depth of about 14 in to the overflow.
  • The 7 in extension panel and reversible end panel are included, so it fills a 60 in alcove. At 35 in high it is one of our lowest tubs.
  • Doorways must be wider than 31.5 in; the crate is 36 in wide. Use our doorway measurement guide.

Our team positions the Royal for larger bathers who are not tall: it gives hip room on a 52 inch footprint. Bathers who need length as well should look at the Deluxe or Ultimate; see weight limits and bariatric options.

Packages and Jets

Six configurations: Hydro + Air + Microbubble, Air + Hydro, Hydro + Independent Foot (two pumps), Hydro + Microbubble, Hydro, and Soaking. LED chromatherapy (0.5A) comes with dual and triple packages. See therapy combinations by model for how the Royal compares.

  • Hydro: 16 jets (10 seat, 6 foot), 5 to 7A pump, ozone, in-line heater 6A 650W.
  • Air: 15 jets (7 seat, 8 foot) per the current spec sheet; the older video quotes 16. 4.5A 500W pump with Auto Purge.
  • Microbubble 1 HP 7.3A. Optional heated seat and backrest; a digital controller is also listed as optional.

For anything beyond these published packages, ask your Ella dealer or the team before planning electrical.

Close-up of the open stainless steel door on the Ella Royal walk-in tub showing the chrome latch and low step entry
The removable stainless door and chrome locking handle, seen from above.

Features, Faucet, Electrical

  • Removable stainless door, deck and wall grab bars, 360 degree swivel tray, textured floor, dual 2 in 4-port drains.
  • 5-piece fast-fill faucet (up to 18 GPM); a 2-piece set in chrome or brushed nickel is also offered. Only the faucet changes finish.
  • Dedicated GFCI 110/120V line(s); triple and microbubble packages need two 20A lines. See electrical requirements by model.

The Royal on Video

The Royal: The Most Luxurious Walk In Tub
Chapters in this video
  1. 0:00 Introducing The Royal Walk-In Tub This chapter introduces The Royal, one of Ella's Bubbles most luxurious walk-in tubs, highlighting its comfortable size and extension panel.
  2. 0:21 Dual Massage And Therapeutic Features The Royal's dual massage package with hydro and air jets, auto purge, inline heater, and ozone sterilization are explained.
  3. 1:16 Safety And Accessibility Features This section covers the low threshold, slip-resistant floors, grab bars, and the removable door for easy cleaning.
  4. 1:57 Faucets, Swivel Tray, And Lighting The video showcases fast-fill faucets, an extendable hand shower, the patented swivel tray, and LED chromotherapy lighting.
  5. 2:32 Optional Comfort And Shower Features Optional heated seats, a rain head shower column, and a four-fold glass screen are presented as additional comfort features.
  6. 3:01 MicroBubble Therapy And Dual Drains The benefits of Infusion MicroBubble Therapy and the efficiency of Ella's dual drain technology are detailed.

The video covers the 32 x 52 footprint, the extension panel for a 60 inch alcove, the 24 inch seat, the dual massage package, swivel tray, optional microbubble and heated seat, shower column, and 4-fold screen. Watch: The Royal: The Most Luxurious Walk In Tub with chapters and a full transcript.

The Royal: Walk-In Tub With Shower Column
Chapters in this video
  1. 0:00 Introducing The Royal Walk-In Tub The video introduces the Royal walk-in tub, highlighting its luxurious features and comfortable dimensions.
  2. 0:31 Comfortable Seating and Soaking Depth The Royal tub's generous seat dimensions and overall soaking depth are detailed for optimal comfort.
  3. 1:07 Therapeutic Massage Systems The dual massage package is showcased, featuring hydro and air massage jets with therapeutic benefits and ozone sterilization.
  4. 2:01 Safety and Accessibility Features The tub's low threshold, slip-resistant surfaces, grab bars, and easy-to-clean removable door are presented for user safety and convenience.
  5. 2:41 Elegant Faucet and Swivel Tray The five-piece fast-fill faucet, hand shower, and patented 360-degree swivel tray are shown as standard features.
  6. 3:01 Optional Enhancements and MicroBubble Therapy Optional features like LED chromotherapy, heated seats, a rain head shower column, and MicroBubble therapy are demonstrated.
  7. 4:01 Efficient Dual Drain Technology The industry-leading dual drain technology is highlighted, ensuring quick and efficient water drainage from the tub.

This overview adds the exterior measurements, the three soaking-depth factors, the dual massage package, ozone, the removable door, and the microbubble option. Watch: The Royal: Walk-In Tub With Shower Column - 2 in 1 Shower and Bathtub Combo with chapters and a full transcript.

Ella's Royal Walk-In Tub: Kelly's Customer Testimonial
Chapters in this video
  1. 0:00 Safety and Comfort The customer describes feeling safe and comfortable while using the walk-in tub for showering and bathing.
  2. 0:15 Fast Fill and Drain The customer explains how the tub fills quickly with good water pressure and drains rapidly after use.
  3. 0:50 Easy and Secure Bathing The customer appreciates the ease and security of sitting or standing while showering or bathing in the tub.

A Royal owner talks about safety, the fast fill and drain, and the microbubble therapy. Watch: Ella's Royal Walk-In Tub: Kelly's Customer Testimonial with chapters and a full transcript.

Common Questions

I need a 24 inch seat. Which models have one?
The Royal walk-in tub, with its inward-swing door, and the Transfer32, with its outward L-door, are the two 52-inch walk-in tub options that offer a wide seat. The Royal's spec sheet lists a 23-inch seat, while its manual states 24 inches. This makes the Royal a good choice for larger bathers who need hip room.
Is the Royal available with a white door?
No, the Ella Royal walk-in tub is not available with a white door; it is offered exclusively with a stainless steel door. If you are looking for a walk-in tub of the same size with a white outward-swing door, consider the Ella Monaco model. The Monaco offers similar dimensions but with a different door style and finish option. Ella Monaco 32x52: Wide Seat Outward-Swing Tub
Can the Royal have all four therapies?
The Ella Royal's published menu of therapy packages tops out at the triple Hydro + Air + Microbubble combination. While our team has described a special factory build that includes hydro, air, microbubble, and independent foot massage together, this is not a standard offering. If you are interested in this four-therapy combination, please ask your Ella dealer or our team before planning your electrical setup, as it may require specific electrical configurations. Which Therapy Combinations Fit Which Tub: Hydro, Air, Microbubble, and Foot Massage by Model
How much water does the Royal hold?
The Ella Royal walk-in tub holds 100 gallons of water when unoccupied. With a bather inside, the water capacity ranges from 45 to 65 gallons, according to the spec sheet. To ensure you have enough hot water for a full bath, please refer to our hot water heater requirements for sizing your heater appropriately. What Size Water Heater Do I Need for My Walk-in Tub?
Does the Royal fit a 60 inch alcove?
Yes, the Ella Royal walk-in tub is designed to fit a 60-inch alcove. It comes with a 7-inch extension panel and a reversible end panel, which are included to accommodate this standard alcove size. This ensures a seamless installation in most common bathroom layouts.
Which manual covers Royal care and cleaning?
The care and cleaning instructions for the Ella Royal walk-in tub are covered in the stainless steel inward-swing door manual. This manual is comprehensive and applies to several models, including the Elite, Petite, Royal, Deluxe, and Ultimate. You can find this manual, along with other model-specific documents, under the 'manuals and spec sheets by model' section on our website. Find Your Manual, Spec Sheet, Schematic, and Drawings by Model
Does the Royal include the drain and overflow, and is the faucet pre-plumbed?
Yes, the Ella Royal walk-in tub includes the drain and overflow, and the faucet comes pre-plumbed. The dual 2-inch drains with overflows and the deck-mounted faucet are installed at the factory. During installation, your installer will connect the drain, the 5-foot supply lines, and the dedicated GFCI electrical circuits. Electrical requirements by model: dedicated GFCI circuits for your walk-in tub
Is the Royal a good choice for a tall bather?
The Ella Royal walk-in tub is designed for width rather than length, making it ideal for larger bathers who are not necessarily tall. For bathers who need more legroom and height, the Deluxe 30x55 or Ultimate 30x60 models are better choices within the same stainless-steel inward-swing door family. These models offer increased length to accommodate taller individuals. Is There a Weight Limit? Bariatric and Large-Bather Walk-In Tub Options

For anything model-specific, open a ticket at ellasbubbles.com/support or call (800) 480-6850.

About this guide. Answers in the Ella’s Bubbles Support Center are compiled from real conversations with tub owners, our technicians’ notes and the product documentation, then reviewed by our team. Tub models and options have evolved over the years, so a detail here may differ slightly from your exact tub. If something looks different on yours, send us your serial number and a specialist will confirm it for your model.
