Ella Petite 28x52: The Narrowest Stainless-Door Tub

Updated September 2026

▶Glossary7
  1. Size and Fit
  2. Who Fits
  3. Packages and Jets
  4. Faucet and Electrical
  5. The Petite on Video
  6. Related Guides
  7. Common Questions

The Ella Petite 28x52 is the narrowest walk-in tub in our stainless-steel inward-swing door family. It is sold as 28 x 52 nominal; the current spec sheet lists an actual size of 27.5 inches wide by 52 inches long by 35 inches high with a 19 inch seat. Use 27.5 inches for any fit planning. A 27 inch figure in one manual table is a known misprint.

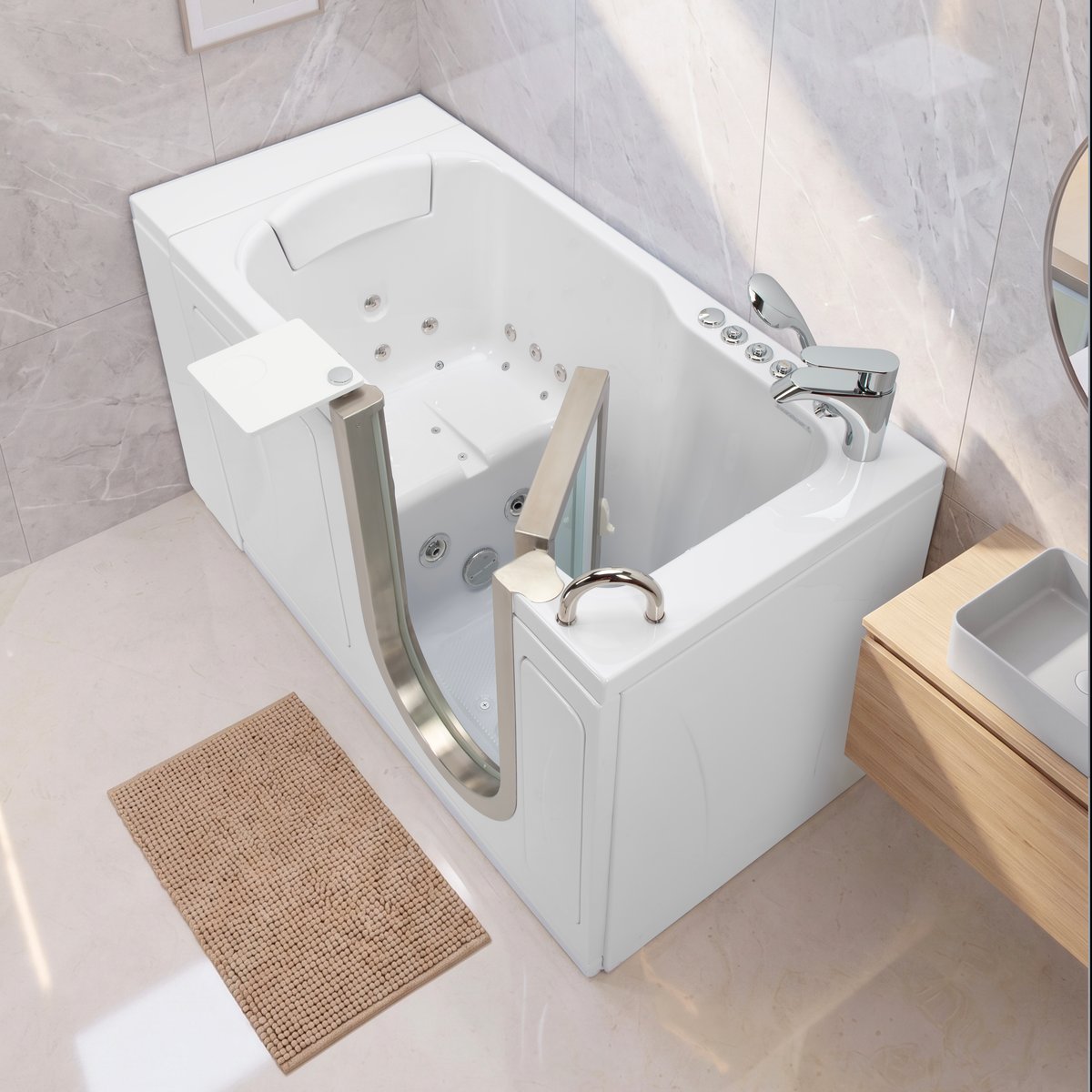

Ella Petite 28x52 walk-in tub with stainless steel door in a bright marble bathroom
The Petite in a small bathroom, with its stainless steel and frosted glass inward door.

Size and Fit

  • Actual 27.5 x 52 x 35 in; crate 31 x 57 x 47 in; net 200 lb, shipping 305 lb.
  • Seat 19 in wide; 65 gallons unoccupied, 30 to 50 gallons occupied.
  • Included: reversible end panel, 7 in extension panel for 60 in alcoves, deck-mount grab bar, dual 2 in 4-port drains, front apron with two access panels. Not included: swivel tray, wall grab bar, towel bar.
  • Doorways: the passage must be wider than 27.5 in. Our team confirms a 30 in door is no problem; a 28 in opening leaves very little margin, so measure carefully with our doorway measurement guide and check with support. The 31 in crate can be opened outside if needed.

Who Fits

The Petite suits small bathrooms and small to average bathers. Our dimensions guide notes that bathers over about 5 ft 10 may find legroom tighter than in longer models, and the 19 inch seat suits average widths. The team recommends it, along with the Elite and Mobile, for mobile homes. If you want the same door with a wider seat, the Elite 30x52 has 22 inches and the Royal 32x52 has 23 inches.

Overhead view of a woman seated in the Ella Petite walk-in tub showing the 19 inch seat width
Overhead view of the Petite seat and interior.

Packages and Jets

Air + Hydro, Hydro + Independent Foot (two pumps), Hydro + Microbubble, Hydro, or Soaking. Because the equipment sits under the seat, the Petite carries at most two therapy systems; see therapy combinations by model.

  • Hydro: 16 jets (10 seat, 6 foot), 5 to 7A pump, ozone, in-line heater 5.5A 650W.
  • Air: 16 jets (8 seat, 8 foot), 4.5A 500W pump with Auto Purge. Older Petites had 10 air jets; the current model has 16.
  • Microbubble 1 HP 7.3A; LED 0.5A with dual packages; optional heated seat and digital controller.

Faucet and Electrical

The spec sheet headlines the 5-piece faucet and documents the 2-piece single-lever set (up to 16 GPM); either is offered, with two 3/4 in by 5 ft supply lines and a 1.9 GPM hand shower. 2-piece cut-outs: 2-1/2 in faucet hole, 1/3 in rod holes, 7/8 in diagonal hand-shower hole. Electrical: dedicated GFCI 110/120V, one line for single or Air + Hydro packages, two for Hydro + Foot, Hydro + Micro, or a heated seat. The circuit table for every model is in electrical requirements by model.

The Petite on Video

Ella Petite Walk-In Tub: Compact Luxury for Small Bathrooms
Chapters in this video
  1. 0:00 Introducing the Ella Petite Tub The video introduces the Ella Petite walk-in tub, highlighting its compact size and generous interior dimensions for comfortable bathing.
  2. 0:31 Dual Massage and Ozone Sterilization The Petite tub features a three-speed air massage, powerful hydro massage with an inline heater, and eco-friendly ozone sterilization for a clean experience.
  3. 1:09 Safety and Fast Fill Features The tub includes Ella's Best in Class dual drain technology, a low threshold, a leak-proof locking handle, a grab bar, a textured floor, and a fast-fill faucet.
  4. 2:06 Luxurious Options and Accessories The dual massage package offers LED light chromatherapy, an optional heated seat, a four-fold glass screen, and a ring head shower column.

The Petite tour shows the compact footprint, the stainless inward door, the 19 inch seat, the deck-mount grab bar, and the extension panel that lets the 52 inch tub finish a 60 inch alcove. Watch: Ella Petite Walk-In Tub: Compact Luxury for Small Bathrooms with chapters and a full transcript.

Luxury Walk-In Tubs with Hydro Massage and Microbubble Infusion Therapy
Chapters in this video
  1. 0:00 Hydromassage and Microbubble Therapy Tubs Ella's Bubbles introduces walk-in tubs featuring hydromassage and microbubble infusion therapy, available on select models.
  2. 0:30 Innovative Jetting and Ozone Sterilization The video highlights the innovative jetting design, removable stainless steel doors, and eco-friendly ozone sterilization for a sanitary tub.
  3. 1:10 Fast-Fill Faucets and Dual Drains Customers can choose between five-piece or two-piece fast-fill faucet sets, both with an extendable showerhead, and benefit from dual drain technology.
  4. 1:33 Comfort and Convenience Features The video showcases the removable swivel tray, optional heated seat and backrest, chromotherapy lighting, and an extension panel for easy installation.

The video shows the Hydro + Microbubble package on the Elite, Royal, and Petite, notes that the Petite has no wall grab bar, and highlights the removable stainless door and the extension panel for a 60 inch alcove. Watch: Luxury Walk-In Tubs with Hydro Massage & Microbubble Infusion Therapy with chapters and a full transcript.

The Ella Petite Walk-In Tub: Abby's Honest Customer Review

A short customer review of the Petite from an owner who chose it for a small bathroom. Watch: The Ella Petite Walk-In Tub | Abby's Honest Customer Review on its own page.

Common Questions

Is the Petite available as a soaker?
Yes, the Ella Petite walk-in tub is available as a soaker model. A soaking-only Petite tub comes with no jets, no jet holes, and does not require an electrical outlet unless you choose to add an optional heated seat. You can find more details about this option on our soaking-only walk-in tubs page.
Can the Petite carry three therapies?
No, the Ella Petite walk-in tub cannot carry three therapy systems. The Petite can accommodate at most two therapy systems because the equipment sits under the seat. If you are looking for a tub that can carry three therapy systems, our team recommends the Royal, Monaco, or Transfer32 models as the smallest options available.
Why do some listings say 10 air jets and others 16?
Some listings for the Ella Petite walk-in tub may say 10 air jets, while others state 16, because older Petite models had 10 air jets. The current model of the Ella Petite walk-in tub has 16 air jets. Any listing that shows 10 air jets for the Petite is outdated and refers to a previous version of the tub.
Will the Petite pass a 28 inch doorway?
The Ella Petite walk-in tub's shell is 27.5 inches wide, so a 28-inch doorway opening leaves very little margin for passage. A 30-inch door is generally no problem for the Petite. You should carefully measure the finished opening, including the door stop, using our doorway measurement guide, and be prepared to open the 31-inch shipping crate outside if necessary.
Does the Petite come with the swivel tray or a wall grab bar?
No, the Ella Petite walk-in tub does not come with a swivel tray or a wall grab bar. The Petite ships with a deck-mount grab bar only. The swivel tray, a wall grab bar, and a towel bar are not included accessories for this specific model.
Can I add a shower column or folding glass screen to the Petite?
Yes, you can add a shower column or a folding glass screen to the Ella Petite walk-in tub. The shower column kit is designed to connect to either the Ella 2-piece or 5-piece deck-mounted faucet. A folding glass screen can be mounted to the side wall of your bathroom. For installation details, please refer to the shower column kit installation guide.
Can the Petite be lowered into the floor, and are there two end panels?
The Ella Petite walk-in tub ships with one reversible end panel of a fixed height, which typically makes lowering the tub into the floor impractical with the standard panel. If you are planning a recessed installation for your Petite tub, it is recommended to talk to our team before proceeding. This will help ensure proper planning and address any specific requirements for such an installation.
Will a tall bather fit in the Petite?
Bathers over about 5 feet 10 inches tall may find the legroom in the Ella Petite walk-in tub tighter compared to longer models like the Elite or a 60-inch tub. The Petite has a 19-inch wide seat that suits average widths. To compare interior figures and determine the best fit, please use the interior dimensions provided in our interior dimensions and soaking depth by model guide.
Where do I get parts for a Petite?
To get replacement parts for your Ella Petite walk-in tub, you should open a ticket at ellasbubbles.com/support. Please include photos of the part you need and your tub's serial number in your request. Our Technical Support team will then be able to identify the correct part for your specific model.

For anything model-specific, open a ticket at ellasbubbles.com/support or call (800) 480-6850.
