The LayDown Walk-In Tubs: 30x60 vs 32x72 Sizes, Faucet Options, and Features

Updated September 2026

▶Glossary9
  1. The Two Sizes Compared
  2. Faucet Options: This Depends Entirely on the Size You Choose
  3. Door and Drain: Different from Every Other Ella Family
  4. Therapy Options
  5. A Closer Look at the Hydro Models
  6. The LayDown60 Up Close, with Accessories
  7. Planning Your Installation
  8. Related Guides
  9. Common Questions

The Ella LayDown walk-in tubs are the two models built for lying down rather than sitting: the LayDown60 (30 inches by 60 inches) and the LayDown72 (32 inches by 72 inches). Most walk-in tubs are designed for seated bathing, and lying down in a seated walk-in tub is not recommended, so if a full-body soak is what you want, these are the tubs to look at. Both have a tempered glass side-entry door, straight sidewalls, a single oversized 2 inch brass drain and a soaking depth of 15 inches, compared to about 11 inches in a standard bathtub. This guide covers the sizes, the faucet rule that differs by size, the therapy choices, and the features that make the LayDown family different from every other Ella tub.

Ella LayDown Walk-In Tubs 30x60 and 32x72 Overview
Chapters in this video
  1. 0:00 Lay Down Tub Features The video introduces the 32x72 and 30x60 lay down walk-in tubs, highlighting their safety and comfort features.
  2. 0:43 Door and Drain Design The tubs feature a tempered glass door, a low threshold for easy access, and oversized drains for fast, efficient draining.
  3. 1:04 Faucet and Air Massage Options Customers can choose between a five-piece or two-piece fast-fill faucet set, and the air massage tub includes a three-speed air massage with auto purge.
  4. 1:42 Hydro Massage and MicroBubble Therapy The hydro massage option offers an intensity control dial and an inline water heater, with MicroBubble therapy available for a skin-softening experience.
  5. 2:10 Safety and Optional Accessories The tubs are designed with straight sidewalls to minimize slipping, and a tempered glass folding screen is available as an optional accessory.

Watch: 32x72,30x60 Lay Down Walk-In Tub with Hydro Therapy: Relaxed Bathing for All with chapters and a full transcript.

Highlights from the overview video: both LayDown sizes have a textured slip-resistant floor, a tempered glass door in a brushed aluminum frame, a low-threshold step-in, and large, easy-to-turn drain controls on an oversized 2 inch drain. The air version offers strategically placed jets for a full-body air massage, the hydro version adds hydro jets with an intensity dial and an in-line heater to keep the temperature consistent, and Infusion microbubble can also be ordered. The straight, narrow sidewalls minimize the tripping hazard that curved tub walls create, and a folding tempered glass screen is optional.

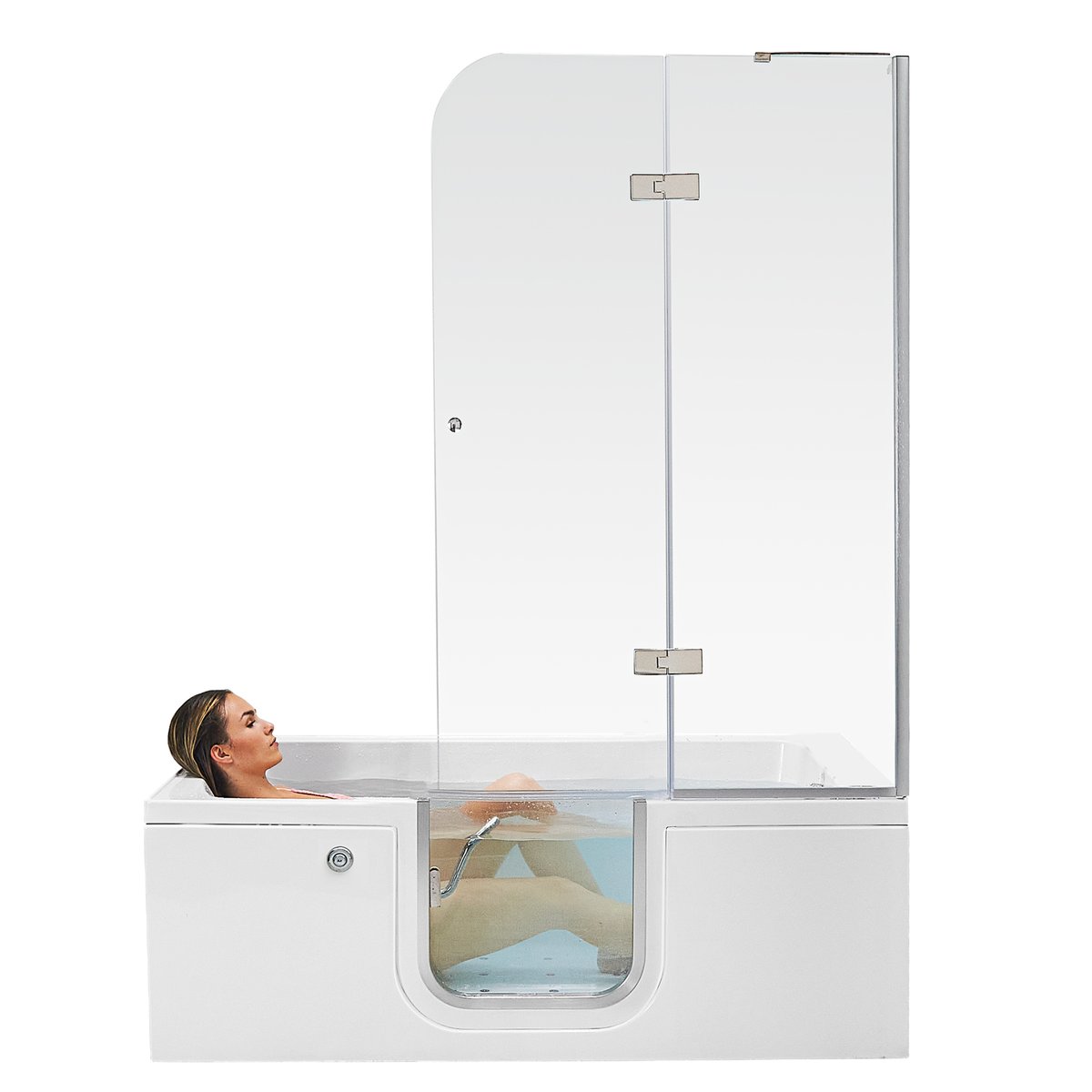

Woman reclining in an Ella LayDown 30x60 walk-in tub with the clear glass door and folding glass shower screen
The LayDown60 with its glass door closed and the optional bi-fold shower screen in place.

The Two Sizes Compared

LayDown60LayDown72
Overall size30"W x 60"L x 21"H32"W x 72"L
Shipping size63"L x 33"W x 29"HConfirm with the team for your order
Interior floor46"L x 20"W56"L x 22.5"W
Interior soaking spaceAbout 53"L x 25.5"WAbout 61"L x 28"W
Net weight160 lbsConfirm with the team
FaucetNot included, customer-supplied wall-mountFaucet-ready deck, optional Ella 2-piece or 5-piece

The LayDown60 measures 30"W x 60"L x 21"H. If you have an older family brochure whose cover lists the 30x60 model as 30" x 52", please disregard that figure. It is a known cover misprint, and the spec sheet and product page confirm 30" x 60". The LayDown72 is two inches wider at 32 inches, so confirm your alcove width before ordering, and its longer interior can comfortably accommodate bathers over six feet tall.

Faucet Options: This Depends Entirely on the Size You Choose

  • LayDown60: this tub does not come with a faucet, and there is no factory faucet option for it. Plan on using a pre-existing or new wall-mounted (or other customer-supplied) faucet with your LayDown60; standard in-wall fixtures work as long as the spout clears the deck and reaches the tub.
  • LayDown72: this tub comes faucet-ready, and an Ella 2-piece or 5-piece deck-mount fast-fill faucet can be added as an option when ordering. If you choose the No Faucet option instead, your SKU will carry an NF suffix (for example LA3272NF-R), and the faucet-ready deck lets you pair the tub with your own fixtures.

If you are checking an existing order, the SKU tells the story: any LayDown60, or a LayDown72 SKU ending in NF, ships without a faucet. The owner's manual's faucet operation sections (diverter, hand shower) apply only to LayDown72 tubs ordered with an Ella deck faucet. The no-faucet order guide covers planning your own fixtures.

Door and Drain: Different from Every Other Ella Family

  • Door: an inward-swing tempered glass door in a brushed-finish aluminum frame, with a chrome locking handle for a tight, leak-proof seal. The door swings through a 115 degree arc inside the tub with a 19 5/8 inch opening. Enter, remain standing, and close the door before sitting down, since closing it is harder from a seated position. See operating and caring for the LayDown glass door.
  • Drain: the LayDown family uses a single oversized 2 inch brass drain with an overflow, operated by a large, easy-to-turn drain opener. This differs from the dual-drain hardware on Ella's seated walk-in tubs, so if you ever need drain parts, mention that you have a LayDown model. A straight-down adapter and the 2 inch to 1.5 inch connection are covered in connecting the 2 inch drain to 1.5 inch plumbing.

Therapy Options

Each LayDown can be ordered in one of four configurations, and only one therapy at a time:

  1. Soaking: no jets and no therapy controls, just the deep 15 inch soak.
  2. Air massage: a three-speed air massage system. On the LayDown60 the spec sheet lists 20 air jets. About 20 minutes after you turn the air pump off, Auto Purge starts automatically and runs for 120 seconds to blow leftover water out of the air lines, preventing mold and mildew. It cannot be interrupted and stops on its own, and it is normal even if it starts while you are still in the tub.
  3. Hydro massage: hydro jets (fixed jets at the back and sides, adjustable jets at the feet) with an intensity control dial, an in-line water heater that runs automatically with the hydro pump, and ozone sterilization.
  4. Microbubble therapy: Infusion microbubble therapy delivered through one jet with an air switch, for a warm, skin-softening bath.

The LayDown tubs do not offer LED chromatherapy or the heated seat and backrest, and hydro and air cannot be combined on one LayDown.

A Closer Look at the Hydro Models

Ella LayDown Hydro Massage Walk-In Tubs
Chapters in this video
  1. 0:00 Introducing the 3272 and 3060 This chapter introduces the 3272 and 3060 hydro massage lay-down walk-in tubs from Ella's Bubbles.
  2. 0:13 Tub Dimensions and Design This chapter details the interior dimensions and unique sidewall construction of both walk-in tubs.
  3. 1:03 Safety Features and Door This chapter highlights the slip-resistant floor, tempered glass door, low threshold, and leak-proof seal.
  4. 1:20 Hydro Massage and Heater This chapter explains the hydro massage system with intensity control, 11 hydrojets, and an inline water heater.
  5. 1:43 Fast Drain and Faucet This chapter shows the large drain opener, oversized 2-inch drain, and fast-fill faucet options.
  6. 2:04 Center Door and Accessories This chapter describes the uniquely positioned center door and the option to add a folding glass screen.

From the hydro video: the LayDown72 offers interior soaking measurements of about 61 inches long by 28 inches wide and can accommodate bathers over six feet tall, while the LayDown60 offers about 53 inches of soaking length and 25.5 inches of width. The square, narrow sidewall construction provides more interior space than a standard curved-wall tub. The hydro massage activates easily, with an intensity control dial to adjust the power of the jet stream and an in-line water heater for consistent temperature. The large drain opener activates the oversized 2 inch drain, and the centered door position leaves extra deck space so options like the folding tempered glass screen can be added.

Ella 3272 Lay Down Tub
Chapters in this video
  1. 0:00 Introducing the 32x72 Lay Down Tub Ella's Bubbles presents the 32x72 walk-in lay down tub, designed for comfort and safety.
  2. 0:29 Faucet Sets and Showerhead Customers choose between a five-piece or two-piece fast fill faucet set, each with an extendable multi-function showerhead.
  3. 0:44 Hydro Massage and Sterilization The tub features easy touch push-button controls, hydro intensity dial, an inline water heater, and eco-friendly ozone sterilization.
  4. 1:04 Fast Drain and Safety Design An oversized two-inch drain provides fast, efficient draining, and straight sidewalls minimize tripping hazards.

This LayDown72 video shows the hydro jetting, textured floor, glass door with brushed aluminum frame, low threshold, push-button control, intensity dial, in-line heater, ozone, the oversized 2 inch drain and the straight narrow sidewalls. Watch: Lay Down Tub: 32x72 Walk-In Tub with Hydro Massage Jets - Your Own Home Spa with chapters and a full transcript.

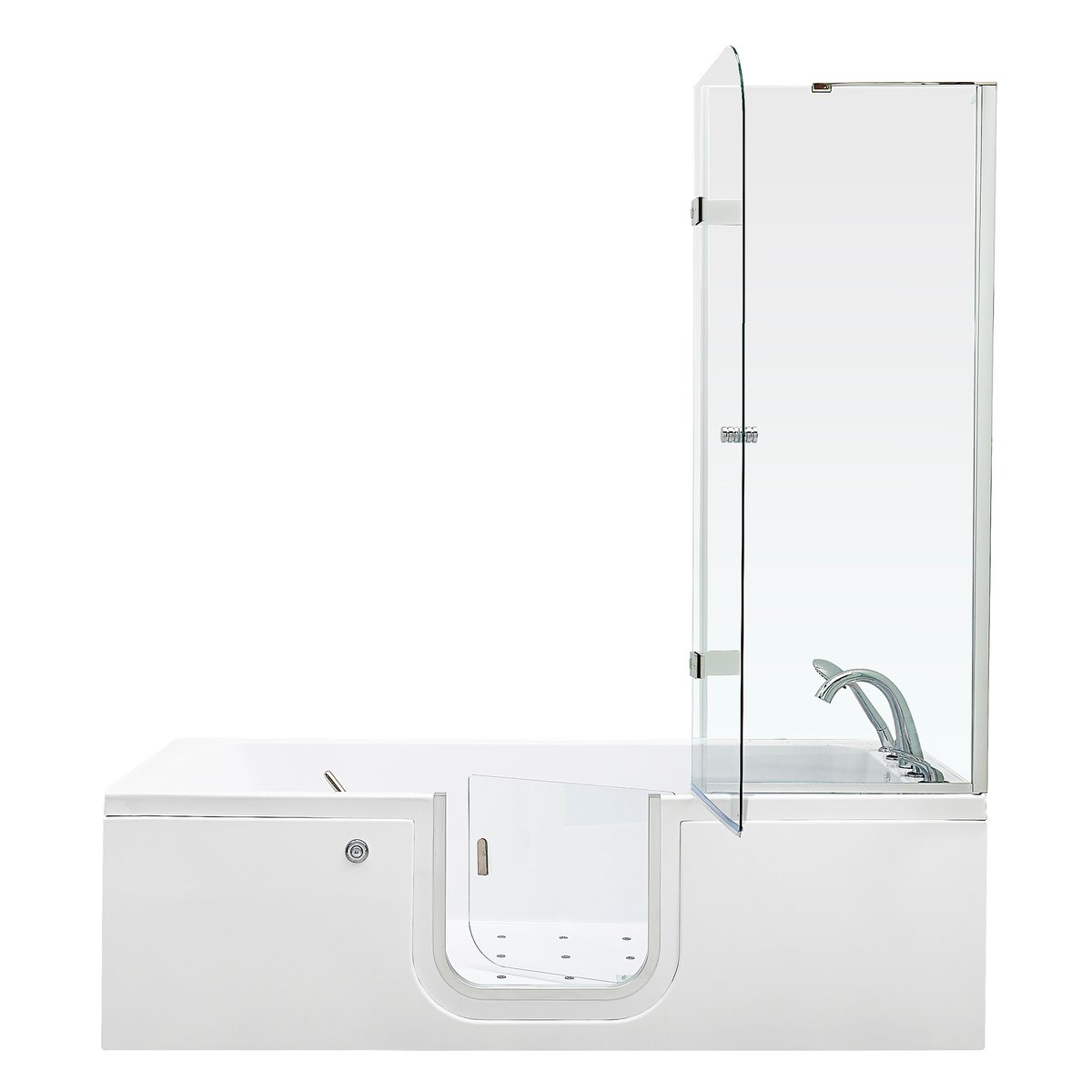

Ella LayDown 32x72 acrylic walk-in tub with the side entry glass door open and the folding tempered glass shower screen
The LayDown72 with its faucet-ready deck and the optional folding screen mounted on the wall side.

The LayDown60 Up Close, with Accessories

Ella LayDown60 Walk-In Tub and Accessories
Chapters in this video
  1. 0:00 Introducing the 3060 Laydown Tub The video introduces the 3060 laydown walk-in tub, highlighting its design, tempered glass door, and low threshold.
  2. 0:20 Air Massage and Hydrotherapy Options The 3060 tub features 20 powerful air massage jets and can be customized with hydrotherapy jets or MicroBubble therapy.
  3. 0:59 Fast Fill Waterfall Faucet The new Fast Fill waterfall faucet fills the tub in less than five minutes and includes an extendable multi-function hand shower.
  4. 1:37 Bi-Fold Glass Shower Door The 3060 laydown tub can be outfitted with a bi-fold glass shower door, featuring chrome hinges and a gasket to prevent leakage.

This video walks through the LayDown60: the chrome locking handle, tempered glass door and low threshold; the 20 jet air massage configuration; and the choice of soaking, hydro or microbubble. It also shows accessories, including a waterfall-style fast-fill faucet with a four-setting hand shower on an adjustable column, and the bi-fold glass shower door with chrome hinges and a bottom gasket. Since the LayDown60 ships without a faucet, fixtures like these are supplied separately, so confirm availability and compatibility with your Ella dealer or the team before ordering. The screen has its own installation document, summarized in installing glass shower screens.

Ella's Lay-Down Walk-In Tubs
Chapters in this video
  1. 0:00 Introducing Ella's Lay-Down Bathtubs Ella's Bubbles introduces their standard lay-down bathtubs, designed for families with young children and seniors with limited mobility.
  2. 1:02 High-Flow Faucets And Drain The video highlights the high-flow chrome finish faucets, handheld shower, and oversized 2-inch drain for fast water removal.
  3. 1:58 Spacious Interior And Safety Features The bathtub features a huge oversized bathing space with a textured anti-slip finish for safety and comfort.
  4. 2:23 Tempered Glass Door And Seal The tempered glass door has a large handle, a secure locking mechanism, and an integrated stainless steel jam and gasket for quality.
  5. 3:08 Adjustable Water Jet Controls The video shows the intensity control for the water jets and the plunger control to turn the air and water system on and off.

The showroom walkthrough shows both sizes, the diverter on a deck-faucet tub, the oversized 2 inch drain, the adjustable foot jets, the glass door with its integrated gasket, and where the controls sit: the intensity dial on the rear deck and the on/off plunger on the front skirt. Watch: Ellau2019s Lay-Down Walk-In Tubs: Safe, Comfortable Bathing for All | Best/Safest 2020 with chapters and a full transcript.

Planning Your Installation

  • Verify doorway and hallway clearance against the shipping crate: the LayDown60 crate measures 63"L x 33"W x 29"H.
  • Confirm your alcove width: the LayDown60 is 30 inches wide and the LayDown72 is 32 inches wide.
  • For the LayDown60, have your contractor plan the wall-mounted faucet supply before installation day.
  • As with all Ella tubs, use a licensed plumber and electrician; one dedicated 20 amp GFCI line covers air only, hydro only or microbubble only.

Common Questions

Can the LayDown have hydro and air together?
No, the Ella LayDown walk-in tubs offer one therapy at a time: air massage, hydro massage, MicroBubble therapy, or soaking only. You cannot combine hydro and air massage on a single LayDown tub. Additionally, LED chromatherapy and a heated seat and backrest are not offered on the LayDown models.
Does the LayDown have a seat?
No, the Ella LayDown walk-in tubs do not have a built-in seat. These models, the LayDown60 (30x60) and LayDown72 (32x72), are specifically designed for lying down, similar to a deeper standard bathtub with a door, allowing for a full-body soak. If you are looking for a seated tub, especially for taller bathers, the Ella Lounger walk-in tub features a seat with a long footwell.
What panels come included with a LayDown walk-in tub?
Each Ella LayDown walk-in tub includes the front cover panel and one side panel. If your installation requires a second exposed end, an extra side panel can be ordered separately. This allows for flexible installation options in your bathroom.
Where are the controls on a LayDown tub?
On Ella LayDown tubs equipped with therapy systems, the intensity control dial for hydro massage is located on the rear deck of the tub. The plunger on/off control for the water system is positioned on the front skirt. LayDown tubs ordered as 'soaking only' will not have any therapy controls.
Which sizes and drain sides do LayDown tubs come in?
Ella LayDown walk-in tubs are available in two sizes: the LayDown60, which measures 30 inches by 60 inches, and the LayDown72, which measures 32 inches by 72 inches. Both sizes can be ordered with either a left or right drain. The tempered glass door is centered on the tub and swings inward towards the drain end.
Do I have to take the glass screen?
No, you are not required to purchase the glass screen with your Ella LayDown walk-in tub. The bi-fold tempered glass shower screen is an optional accessory for both LayDown60 and LayDown72 models and can be ordered at a later time. The centered door design of the LayDown tubs leaves ample deck space, allowing for the addition of this screen.
Can grab bars be added to the LayDown?
Ella's Bubbles does not install grab bars on the LayDown walk-in tubs. The team has stated that grab bars are not installed on the LayDown 32x72, and none are listed for the 30x60. If you wish to have grab bars, they should be wall-mounted, and you should consult with the Ella's Bubbles team about your specific bathroom layout before planning wall bar installation.
Can I add a bath lift later?
Ella's Bubbles does not supply bath lifts for their walk-in tubs. If you wish to add a bath lift, you would need to source a third-party lift that is appropriately sized for the LayDown tub. The Ella's Bubbles team can provide the tub dimensions to help you check for compatibility and fit with external lift options.
How does the brass drain connect to 1.5 inch plumbing?
The single oversized 2-inch brass drain on the Ella LayDown walk-in tubs connects to standard 1.5-inch house plumbing using a standard 2-inch to 1.5-inch reducing fitting. If your installation requires the drain to exit vertically, a straight-down adapter is available and can be obtained through Ella's Bubbles Technical Support.
Is the inside of the LayDown all flat, with no drop offs?
Yes. The 30 by 60 has an entry door and a floor that is flat front to back, and you rise from the floor as in a regular bath; an optional folding bath seat lets a bather sit and soak the feet. There is no seat molded in and no built in grab bars, so bars go on the wall, never screwed into the shell.
Can I get a left door with a left drain, and can you make a 70 inch version?
Yes, Ella LayDown walk-in tubs are available with both a left door with a left drain and a right door with a right drain. These configurations are offered for tubs with soaking, air massage, hydro massage, or MicroBubble therapy systems. However, only two sizes exist for the LayDown models: 30 inches by 60 inches (LayDown60) and 32 inches by 72 inches (LayDown72); custom lengths, such as a 70-inch version, are not manufactured.
How does the drain work, and where does the pump sit?
The LayDown has a single drain with a turn handle inside the tub and no diverter, so shower controls are separate wall plumbing. The hydro or air pump sits opposite the drain, so a left drain puts the pump on the right, and that is where the dedicated 20 amp GFCI line should go. Set, level, screw the legs down, connect one drain and the supply, plug in; the front apron sits on magnets and a clip and is never tiled over.
Can my mother get out if the door is closed, and what glass is the screen?
The glass door handle has no lock, so a bather can always open it once the tub is drained. The optional lay down screen is clear glass only, the 32 by 72 can pair with a slide bar for showering, and the white acrylic is cleaned without bleach or abrasives.
What makes a LayDown tub safer for a senior than a regular bathtub?
A LayDown tub is essentially a regular tub with a door, so you walk in through the tempered glass door instead of stepping over a high tub edge. The low threshold, textured slip-resistant floor and straight sidewalls all reduce the chance of a slip or trip on the way in and out. For added support, grab bars can be installed on the wall beside the tub, and the team at (800) 480-6850 can help you plan placement for your bathroom.
Is a LayDown tub a good alternative to a seated walk-in tub?
Yes, the LayDown family is Ella's alternative for bathers who want a walk-in door but prefer to lie down and soak rather than sit upright. You still get the safety of a door and low threshold, without needing to step over a high edge, and you rise from the floor much as you would in a regular bath. If you are unsure which style fits your mobility needs, your Ella dealer or the team at (800) 480-6850 can talk through both options with you.

Still deciding, or have a question about your specific bathroom or order? Open a ticket at ellasbubbles.com/support and the team will be glad to help, or call (800) 480-6850.

About this guide. Answers in the Ella’s Bubbles Support Center are compiled from real conversations with tub owners, our technicians’ notes and the product documentation, then reviewed by our team. Tub models and options have evolved over the years, so a detail here may differ slightly from your exact tub. If something looks different on yours, send us your serial number and a specialist will confirm it for your model.
