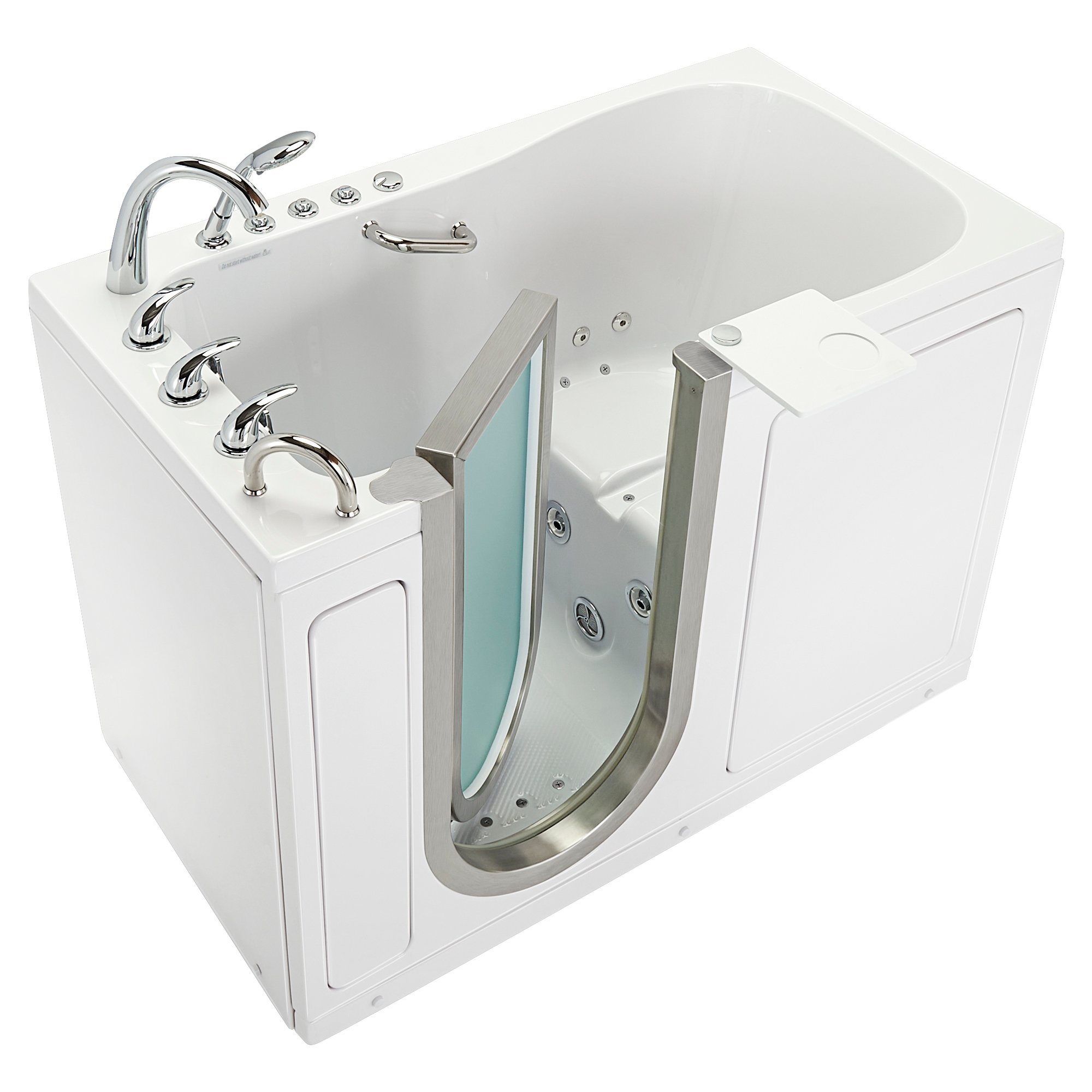

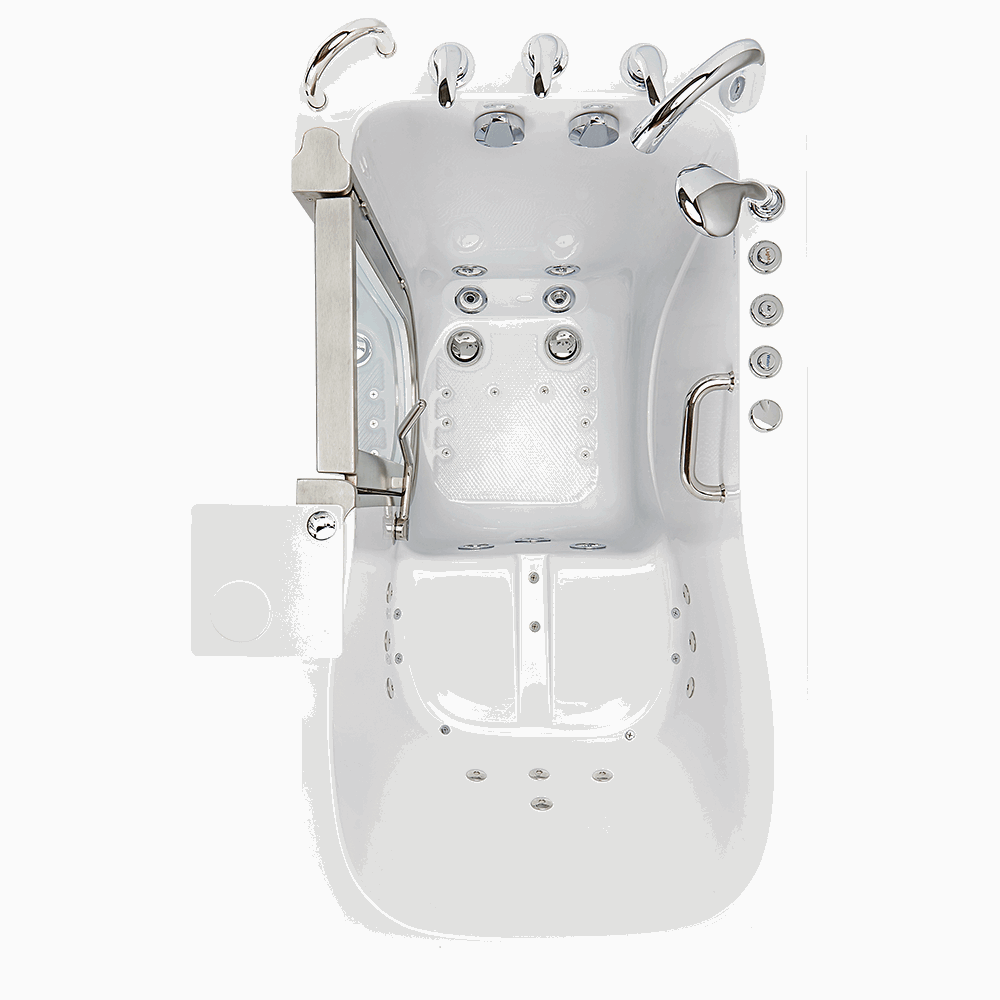

The Ella Deluxe walk-in tub is the 55 inch stainless-steel-door tub for average to taller bathers who want more legroom without a 60 inch footprint: actual size 29.5 inches wide by 55 inches long by 39 inches high, a 21 inch seat, and about 107 gallons unoccupied. Unlike its siblings in the stainless inward-door family it ships as a fixed dual-massage package, Air + Hydro with LED chromatherapy and ozone sterilization, and a 4 inch extension panel brings it to a standard 60 inch alcove.
Size and Fit
- Actual 29.5 in W x 55 in L x 39 in H; crate 58.5 x 33.5 x 46 in; net 212 lb, shipping 286 lb.
- Seat 21 in on the spec sheet (22 in in the video), 16 in seat length, 46.5 in interior length.
- 107 gallons unoccupied, 60 to 75 gallons occupied.
- At 29.5 in wide it passes a standard 30 in doorway, as the video and the team confirm; the doorway measurement guide explains how to check every turn along the route.
- A 4 in extension panel (not the 7 in panel of the 52 in models) plus a reversible end panel bring it to a 60 in alcove; see alcove fit and extension panels.
Included
- Air: 16 jets (8 seat, 8 foot), 4.5A 500W three-speed pump with Auto Purge, which starts about 20 minutes after the air pump is turned off and runs 120 seconds.
- Hydro: 14 jets (8 seat, 6 foot), 7A 1000W pump, intensity dial, ozone, in-line heater 6A 650W; the video highlights the hip and bidet jets.
- LED chromatherapy 0.5A; removable stainless door, deck and wall grab bars, 360 degree swivel tray, dual 2 in 4-port drains, 5-piece fast-fill faucet (up to 18 GPM) with 5 ft supply lines.
- Optional heated seat and backrest.
Changing the Package
The Deluxe is not offered as a soaker or hydro-only. The team can add Independent Hydro Foot Massage so it matches the Ultimate's Hydro + Air + Foot set, and microbubble therapy is available as a special order. Ask your Ella dealer or the team for the electrical schematic for your package before your electrician plans the circuits; the base package runs on dedicated GFCI 110/120V 60Hz service, and combinations with the foot pump or heated seat add a second line, as the electrical requirements guide explains.
Watch the Deluxe

Chapters in this video
- 0:00 Introducing The Ella Deluxe The Ella Deluxe walk-in tub is presented, highlighting its features for taller bathers and easy entry.
- 0:54 Therapeutic Jet Systems The video showcases the strategically placed air and hydro jets, an inline water heater, and auto purge system.
- 1:47 Fast Drain and Fill The tub's dual drain technology, fast fill faucet, and extendable hand shower are demonstrated.
- 2:07 Chromatherapy and Swivel Tray LED light chromatherapy and the patented 360° swivel tray are shown, adding to the bathing experience.
The video presents the Deluxe as a taller-bather tub with 46.5 inches of interior length and a 22 inch seat, shows that 29.5 inches of width fits a 30 inch doorway, and tours the air and hydro jets including hip and bidet jets, the dual 4-port drains, the 5-piece faucet, and the swivel tray. Watch: Ella’s Deluxe Walk-In Tub - More Legroom, More Comfort, More Luxury with chapters and a full transcript.

Chapters in this video
- 0:00 Inward Swing Door Walk-In Tubs Ella's Bubbles showcases its inward swing door walk-in tubs with custom brushed stainless steel doors and frosted tempered glass.
- 0:25 Safety and Durability Features The video highlights the low threshold, slip-resistant floor, grab bars, and a rust-proof stainless steel frame with leveling legs.
- 0:48 Dual Drain and Jetting Systems Ella's Bubbles explains the dual drain technology, three-speed air massage with auto purge, and hydro massage with an inline heater.
- 1:30 Foot Massage and Sterilization The video introduces the independent foot massage feature and eco-friendly ozone sterilization for a sanitary bathing experience.
- 1:51 Faucets and Comfort Options Ella's Bubbles presents fast fill faucet sets, a swivel tray, LED chromatherapy, and optional heated seats for enhanced comfort.
- 2:29 Shower Screens and Columns The video demonstrates how inward swing door tubs can be fitted with a four-fold glass shower screen or a rain head shower column.
This family overview shows what the Deluxe shares with the other stainless inward-door tubs: the brushed stainless door with frosted tempered glass that lifts out for cleaning, the stainless frame with adjustable leveling legs, dual 2 inch drains, three-speed air with auto purge, hydro with in-line heater and intensity dial, ozone, the 5-piece or 2-piece faucet, the swivel tray, chromatherapy, the optional heated seat, and the 4-fold screen or shower column accessories. Watch: Walk-In Tub with Custom Brushed Stainless Steel Inward Swing Door for Safe Bathing with chapters and a full transcript.
Deluxe Versus Elite and Ultimate
The Elite is 3 inches shorter at 52 inches with a 22 inch seat and a choice of packages, so it suits narrower spaces and bathers who do not need the extra legroom. The Ultimate fills a full 60 inches with independent foot massage standard. The Deluxe sits between them: more interior length than the Elite, and a 4 inch panel instead of a 5 inch gap to fill when the alcove is 60 inches.
Related Guides
- What Comes With Your Walk-In Tub Order: Faucet, End Panel, Grab Bars, Drains and What Your Plumber Supplies
- Ultimate, Zen, Standard or Deluxe: Comparing Ella's 30 by 60 Inch Inward-Swing Tubs
- How Tall Are Walk-In Tubs Compared to Standard Tubs?
- Where can I see photos of the Deluxe 30x55 walk-in tub?
- What is the difference between the Ella Ultimate and Ella Deluxe?
Common Questions
Is the Deluxe a good fit for a 5 ft 11, 175 lb bather?
How tall is the Deluxe?
Can I get brushed nickel?
Can I order the Deluxe as a soaker or hydro-only?
Does the Deluxe offer microbubble or independent foot massage?
Will it fit through a 30 inch doorway?
Can I choose the door and drain side?
How does it fill a 60 inch alcove?
How many electrical circuits does the base package need?
Why is the Deluxe recommended as the deeper tub?
Do existing wall grab bars need to come off before the Deluxe is installed?
How do I turn the LED chromatherapy light on the Ella Deluxe on and off?
What color is the seat on the Ella Deluxe walk-in tub?
How are the massage systems on the Ella Deluxe controlled?
For anything model-specific, open a ticket at ellasbubbles.com/support or call (800) 480-6850.
