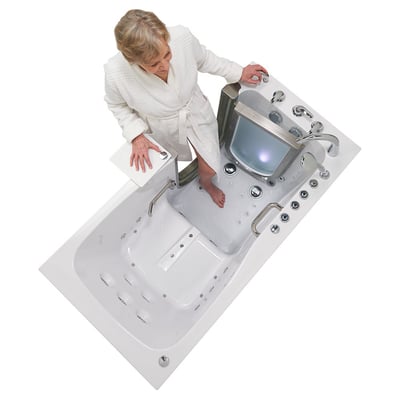

Ultimate Air+Hydro+Independent Foot Massage Walk-In Tub – 30″W x 60″L (76cm x 152cm)
$6,566.00 – $7,056.00
If you’re looking for the most invigorating spa experience in a walk-in tub this, is it. Packed with 17 hydro jets and 17 air jets, Ella’s Ultimate delivers the most comprehensive, invigorating air and hydro massage experience in the market. Well sized at 30” wide and 60” inches long, the Ultimate provides extra leg room, extra hip room and a longer seat for better hamstring support. This tub is all about comfort and luxury.
Also standard with the Ultimate walk-in tub, is our independent foot massage feature. No need to fill the entire tub to enjoy a soothing, hydro foot massage. Just fill the foot well and a separate pump activates four dedicated foot and calf massage jets creating a luxurious, calming experience.
The Ultimate also features a beautifully designed brushed stainless steel and frosted tempered glass inward swing door. The white glossy acrylic shell makes this walk-in tub look modern and sleek.
To see all other jetting options, click on the “Therapy & Jetting Options” tab below. Choose your options below for specific details, images and pricing
If you’re looking for the most invigorating spa experience in a walk-in tub this, is it. Packed with 17 hydro jets and 17 air jets, Ella’s Ultimate delivers the most comprehensive, invigorating air and hydro massage experience in the market. Well sized at 30” wide and 60” inches long, the Ultimate provides extra leg room, extra hip room and a longer seat for better hamstring support. This tub is all about comfort and luxury.
Read MoreAlso standard with the Ultimate walk-in tub, is our independent foot massage feature. No need to fill the entire tub to enjoy a soothing, hydro foot massage. Just fill the foot well and a separate pump activates four dedicated foot and calf massage jets creating a luxurious, calming experience. The Ultimate also features a beautifully designed brushed stainless steel and frosted tempered glass inward swing door. The white glossy acrylic shell makes this walk-in tub look modern and sleek. To see all other jetting options, click on the “Therapy & Jetting Options” tab below. Choose your options below for specific details, images and pricing

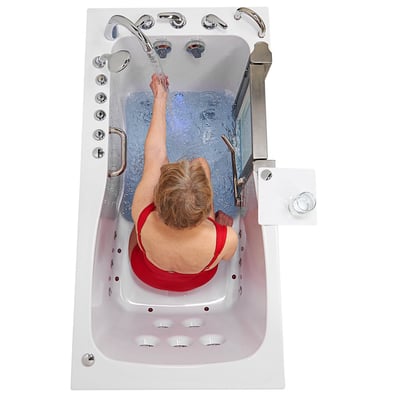

Note: Bather’s dimensions shown in the product images are 5’7″ and 120 lbs.
Choose Included Features
Ella Ultimate Walk-In Tub
The walk-in tub shell of the Ultimate is constructed with premium acrylic in a white glossy finish, supported by a stainless-steel frame with adjustable leveling legs, and reinforced with fiberglass gel coat layers. The nonporous acrylic surface is easy to clean and impermeable to mold and mildew. A textured floor, low step-in threshold, one deck and one wall mounted U-shape stainless steel grabs in a chrome finish, enhance your safety and allow quick and safe entry and exit in and out of the tub.

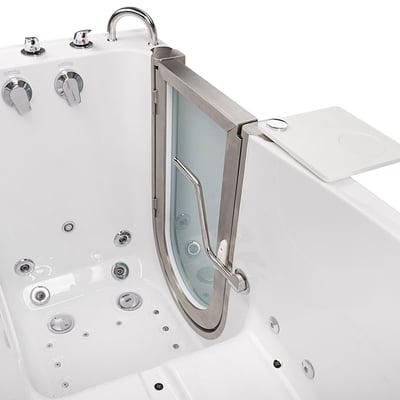

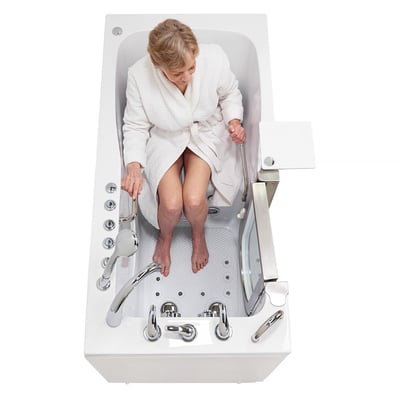

This fully-loaded walk-in tub measures at 30”W x 60”L and has a comfortable 21” wide seat. The Ultimate’s main feature is the door which is made from beautiful, custom brushed stainless steel with a frosted tempered glass window to give it a sleek, contemporary look. The door is 16 ½” wide, and swings into the tub to allow the bathers to easily enter and exit the tub without being in the way of other bathroom fixtures such as a toilet or vanity. These inward swing doors are also easier to close once inside the walk-in tub. The extended stainless steel door lever was uniquely designed to bypass the bathers’ leg when locking and unlocking the door in a seated position. The lever lock, along with the door gasket, creates a secure and watertight door seal, providing you with a safe, leak-free bathing experience. Another key feature available on all Ella inward-swing door models, is our patented detachable 360° swivel tray.
The Ultimate comes with one of the best and exclusive features: Dual Drain Technology, consisting of two independent 2” gravity driven drains with four 2” outlets, 2 overflows and 2 drain openers, allowing for a fast and reliable drainage. 2 caps are also included to cover up to 2 of 4 ports if needed. The 2” drain outlets can be connected to the standard 1 ½” house drain with a T or Y fitting and piping provided by a professional plumber. It is suggested to connect all 4 outlets to the house drain for the fastest drainage possible. Typical drainage time is approximately +/- 80 seconds for this standard size tub within ideal in-home plumbing conditions. Ella gravity driven dual drains are fast and reliable because they do not require an electric pump, whereas electrical driven drains may fail due to electrical shorts or power outages.
This model also includes one reversible end panel for left or right corner installation options and one extension filler panel kit for 60” alcove installations. The reversible end panel is used to cover the end of the tub that is exposing the walk-in tub shell. An additional end panel can be ordered if your tub will be installed against the wall with both ends exposed.
Warranty
We provide a limited lifetime parts warranty* for the original customer living at the address of installation. This warranty is non-transferable to other customers or locations. Please visit the “Downloads” tab for complete warranty information.

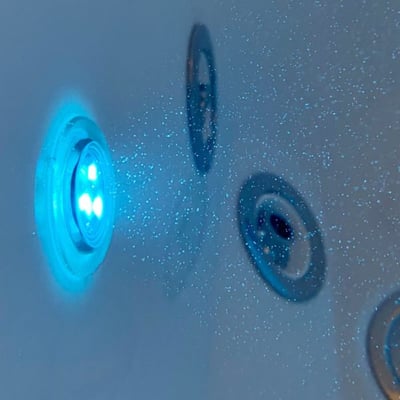

Note: LED Chromatherapy light is included with any dual jetting or therapy package.
Examples: air & hydro, hydro & hydro, Hydro & Microbubble therapy
One of the best features on the Ultimate is the full body Air + Hydro massage with an independently operated foot massage system.
Air + Hydro + Independent Hydro Foot Massage Massage System
Download Schematics: Air + Hydro + Independent Foot Massage
Hydro Massage

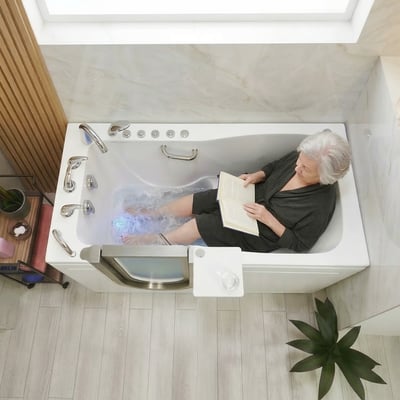

The Ultimate walk-in tub has seventeen (17) strategically placed hydro jets in order to deliver optimal therapeutic relief. Eleven (11) upper fixed jets work to provide relief for your back, hips and thighs, while six (6) lower adjustable jets massage your feet and calves.
The Hydro Massage System includes: a hydro pump with an in-line water heater, an eco-friendly ozone sterilization system, a hydro massage intensity control dial, and a strategically positioned hydro jet system for targeted and effective massaging.
The in-line water heater is designed to maintain the water temperature at a constant level while bathing for maximum comfort. The ozone sterilization system is the most eco-friendly, chemical free disinfectant that can eliminate a wide variety of inorganic, organic, and microbiological bacteria. This sterilization system is especially helpful in eliminating odors and hygienic maintenance.

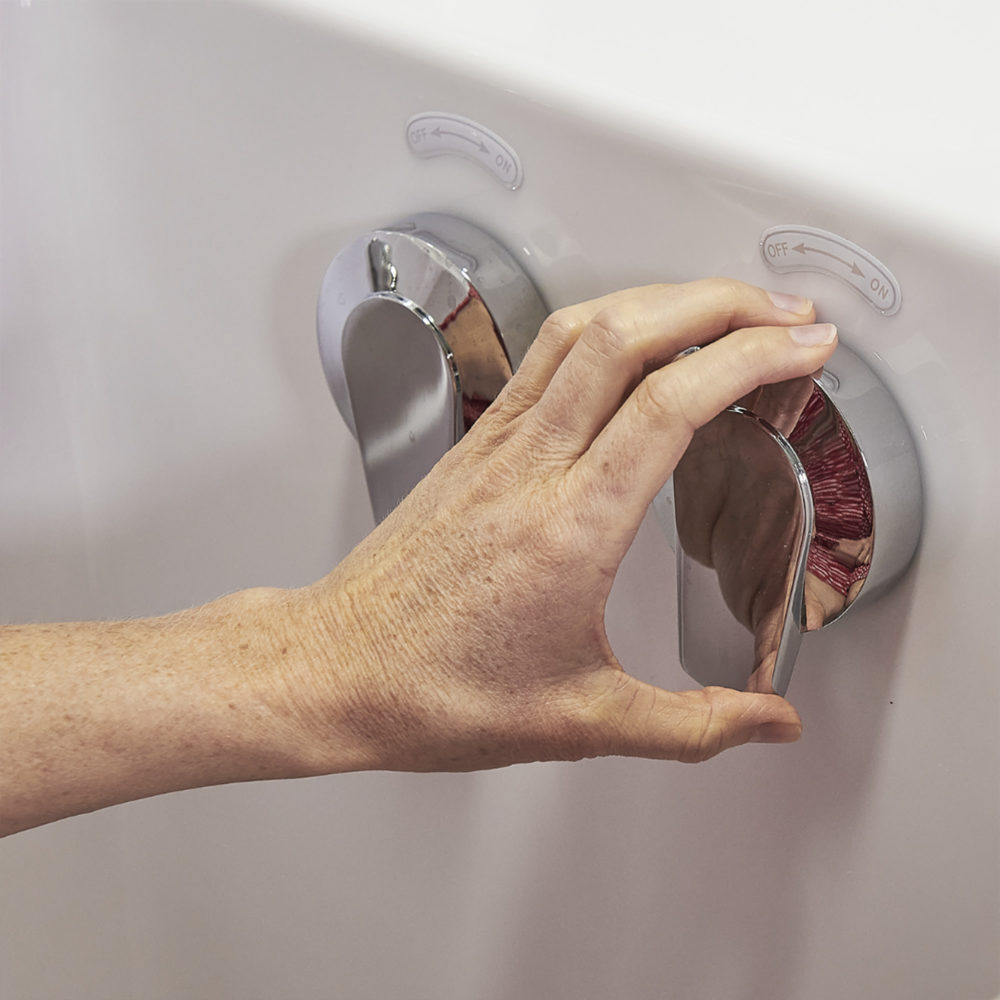

Lastly, the hydro massage intensity control dial allows you to adjust the strength of the water stream by adding more or less air into the hydro system.
Air Massage System

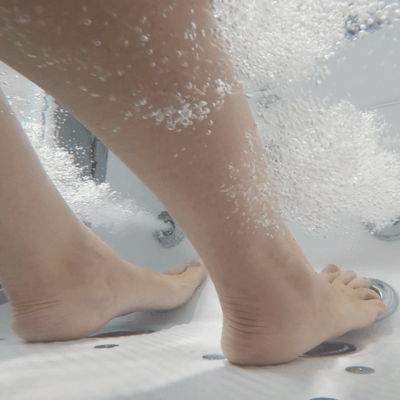

The Ultimate walk-in tub has seventeen (17) strategically placed air jets in order to deliver rejuvenating therapeutic relief. Nine (9) upper, fixed flat jets work to provide relief to your back, hips and thighs, while an additional eight (8) jets located in the lower foot area deliver a gentle massage to your feet and calves. Additionally, three (3) of the eight (8) upper jets are bidet jets.
The air massage system includes an air pump with a 3-speed variable push control, strategically positioned air jets for optimal therapeutic relief, and auto-purge to maintain an air system free of any build ups.
Ella’s Air Jet System includes an Auto Purge System. It automatically activates 20 minutes after completing your bath in order to blow out any excess water and bacteria from the air jet lines. Auto-purge will run for 120 seconds to ensure your system is clear and free of moisture and excess water helping to prevent mildew build up.

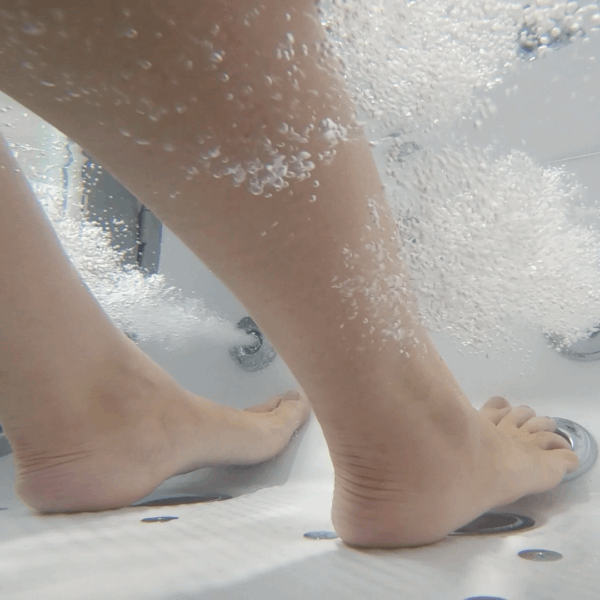

Independent Hydro Foot and Calf Massage System
The Hydro + Independent Foot and Calf Massage package uses two independently run pumps to give bathers a simultaneous full body massage and a powerful foot and calf massage. The strategically positioned upper and lower hydro jets powered by two hydro pumps include an intensity control dial to adjust the strength of the water pressure to your liking from a gentle pressure to a more rigorous massage. Bathers can enjoy an independent foot and calf massage within minutes by simply filling the foot well up the seat level.
Please note: if you choose this jetting package, your walk-in bathtub will come with one (1) in-line water heater that will be connected to the lower jets and used with the independent foot massage feature, and an ozone sterilization system connected to the upper jets.

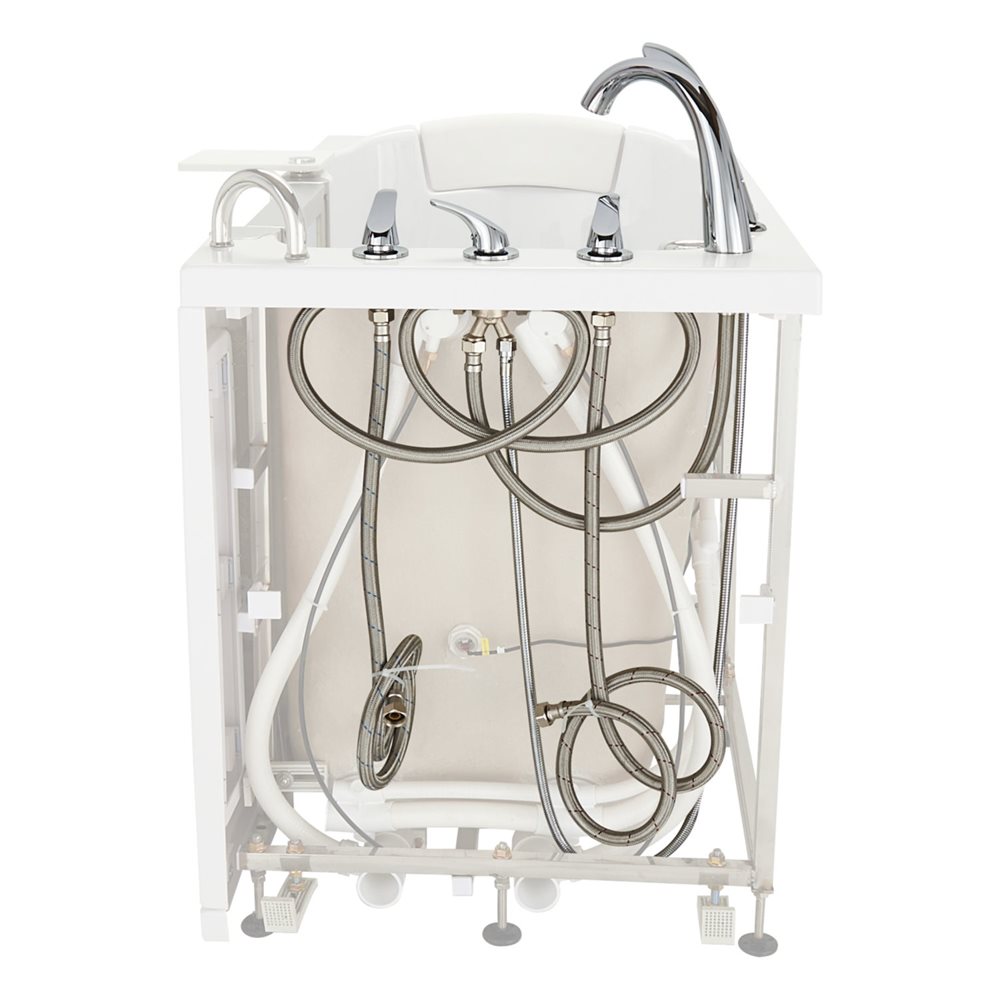

1. Ella 5 Piece Fast Fill Faucet

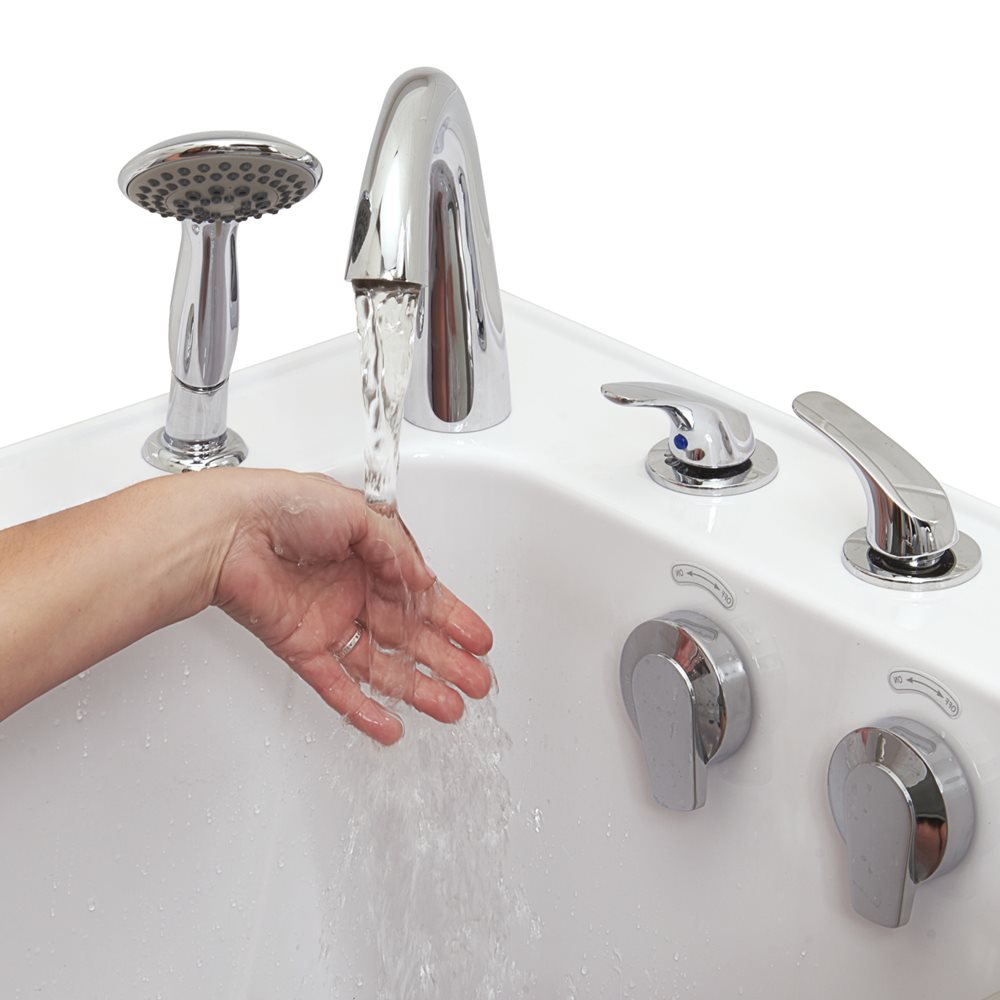

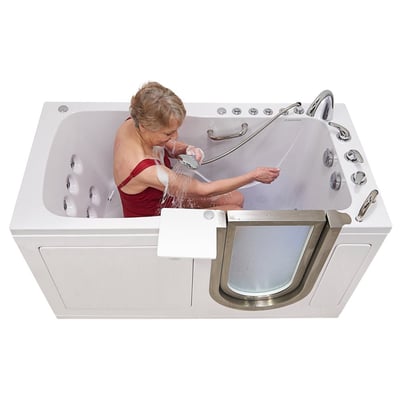

The Ella 5 Piece ¾” Fast Fill Faucet with pull out multi-function hand shower in chrome finish is perfect for your walk-in bathtub or any bathtub where fill time matters. The fast fill 5-piece fills at a rate of up to 18 GPM (gallons per minute) based on in house plumbing conditions. If desired, the pull-out hand shower can be used for showering while the bathtub is filled to stay warm.
2. Shower Column For Deck Mounted Faucets
The Shower Column Kit connects to a diverter on an Ella brand 5 piece deck mounted faucet in order to create an extended overhead shower. The stainless steel, chrome finish column can be effortlessly adjusted up to 7 feet tall. Along the column is a vertically movable, 5 mode multi-functional hand shower, and attached at the top is an oversize rain shower that can be directed with ease to the seat for a seated shower or footwell for a stand up shower. This shower column kit replaces the need for a wall-mounted showerhead.
1. Controller Options

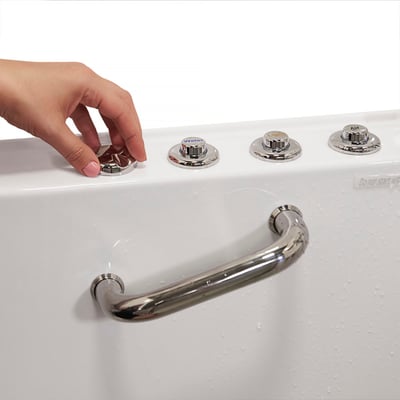

We offer two control options: Push Control or Digital Control. Our Push Controls are easy-to-use push down buttons that will operate your chosen jetting and any additional features.
The digital control is our more modern option, giving you a digital keypad from which to control your jets and additional features such as Chromatherapy LEDs and heated seat & backrest. Since the Digital Control is smaller, it may be more difficult for elderly to see and operate.
2. Ella 4-Fold Glass Shower Screen in Chrome Finish for Walk-In Tubs
The Ella brand 4-fold shower screen is the best option in the industry for walk-in tubs because of the foldable feature that’s not offered with a standard shower glass or curtains. This gives bathers an airy, open feeling with the option to easily push the screen aside. The lightweight glass, secured in an aluminum frame with quality gear hinges, is sturdy enough to endure rigorous daily use. Additionally, one of the 4-fold sections can be removed to create a 3-fold shower screen.
3. Standard Seat Pillow Riser
The Standard Seat Pillow Riser is designed to cover the bidet jets found in your Ella walk-in bathtub. This luxuriously thick pillow is incredibly comfortable and can be used as a riser or additional seat support in all walk in bathtubs. The interior material is washable and can be removed.
4. U-Shape Seat Pillow Riser
Our dual massage walk-in tubs have two air jets in the center of the seat. The U shape pillow is designed to accommodate these two bidet jets. If you want to cover bidet jets, you can utilize the regular seat pillow. This luxuriously thick pillow is incredibly comfortable and can be used as riser or additional seat support in all walk in bathtubs. The interior material is washable and can be removed.
5. Headrest & Neck Support
Increase your comfort with the Ella Walk-In Bathtub Headrest. The headrest can be mounted on the wall or on the deck using attached suction cups.
Size & Dimension Video
Ultimate Walk-In Bathtub – Crafted for Safety, Comfort, & Convenience
The best fast drain in industry – no power required! Ella gravity driven 2″ dual drain technology with independently operated 2 openers, 2 overflows for fast and reliable drainage and exit out of the walk-in tub. This drain can be connected to 4 x 2 inch outlets vs. one 1 1/2″ standard bathtub drain. See details in product page downloads or visit Dual Drain Technology.

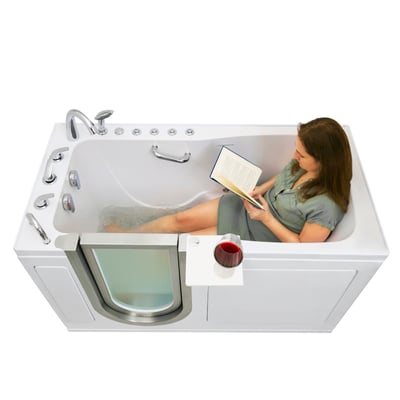

One of the best features we added to this line of walk-in tubs is our patented 360° swivel tray. Whether it be a beverage or a book, you no longer have to worry about where to put the items that aid in your relaxation. This unique swivel tray adds a touch of additional convenience to complete any bath. This is available for the Elite, Royal, Petite, and the Ultimate models.
The best fast drain in industry – no power required! Ella gravity driven 2″ dual drain technology with independently operated 2 openers, 2 overflows for fast and reliable drainage and exit out of the walk-in tub. This drain can be connected to 4 x 2 inch outlets vs. one 1 1/2″ standard bathtub drain. See details in product page downloads or visit Dual Drain Technology.
One of the best features we added to this line of walk-in tubs is our patented 360° swivel tray. Whether it be a beverage or a book, you no longer have to worry about where to put the items that aid in your relaxation. This unique swivel tray adds a touch of additional convenience to complete any bath. This is available for the Elite, Royal, Petite, and the Ultimate models.
| Weight | 350 lbs |
|---|---|
| Dimensions | 57 × 36 × 46 in |
| Door & Drain Position | Left, Right |
| Heated Seat & Back | Include ($490), Exclude ($0) |
| Free End Panel | Include ($0), Exclude ($0) |
