Ella Transfer30 30x52: Specs, Packages, Seat Size and Color Options
Updated September 2026

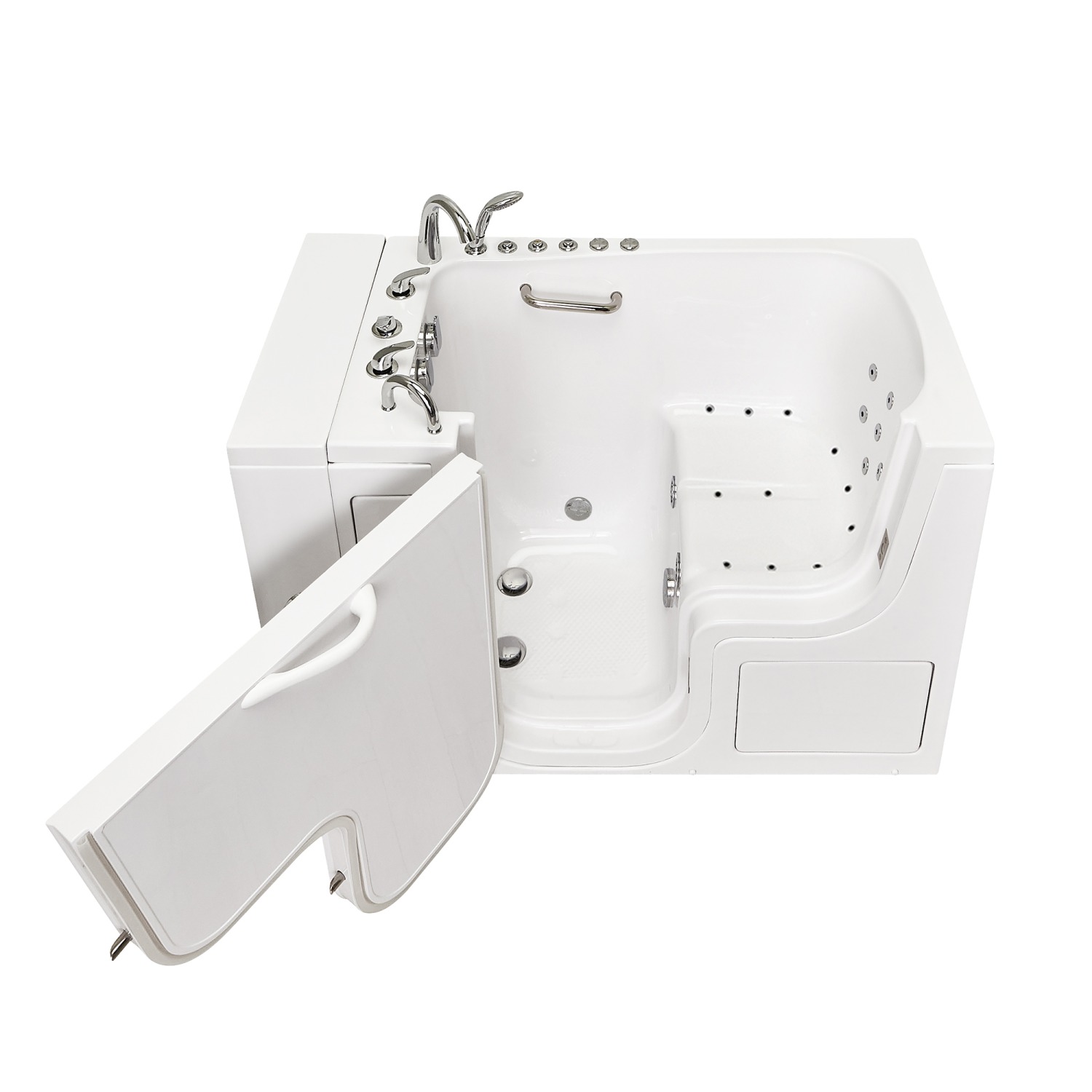

The Ella Transfer30 is the standard-size member of the wheelchair-accessible Transfer family and, according to its product page, the most popular one. Its actual size is 30 inches wide by 52 inches long by 40 inches tall with a 22 inch wide molded seat. It uses the 36 inch wide L-shaped outward-swing door with the two-latch gear and shaft lock, ships with an 8 inch extension panel for 60 inch alcoves, and is available with the full menu of single and dual therapy packages.
Dimensions and Capacity
- Actual size: 30 by 52 by 40 inches. Seat width: 22 inches.
- Comparison chart interior figures: 15 3/4 inch seat length, 43 3/4 inch interior length, 18 1/2 inches from seat to overflow, 17 inches from seat to footwell, 18 by 17 inch footwell.
- Water: 80 gallons unoccupied, 35 to 65 gallons occupied, per the current spec sheet.
- Weight: 220 pounds net, 366 pounds shipping, in a 33 by 55 by 50 inch crate.
- Door opening angle: 172 degrees, so leave clear floor in front of the tub.
The imperial figures printed on the current spec sheet are the authoritative specifications. If you see different gallon or weight numbers on an older chart or brochure, the most recently dated spec sheet governs. Interior figures for every model are gathered in interior dimensions and soaking depth by model.
Color Options
The spec sheet describes the shell as premium acrylic in a gloss white finish, reinforced with fiberglass gelcoat over a stainless steel frame. The ellasbubbles.com catalog also lists an Off White Transfer30; these are a few leftover units rather than a standing finish option, so ask your Ella dealer or the team at (800) 480-6850 to confirm availability before your order is placed. Finish options across the line are covered in tub colors and hardware finishes.
Door, Faucet Editions and Panels
The L-shaped door is a composite frame with a tempered glass panel and swings outward. Its winged shape is what lets it swing over a standard toilet in a typical vanity, toilet, tub layout while still providing a wide opening to transfer onto the seat. Inside, a soft-grip handle closes the door and a two-latch gear and shaft lock hidden under a decorative acrylic cover pulls it evenly onto its seal for a secure, watertight closure; see operating the L-shape transfer door.
Two faucet editions exist. The current spec sheet headlines the five-piece fast-fill faucet, rated up to 18 gallons per minute at 60 PSI under ideal in-home plumbing, and the catalog also lists a Transfer30 with the two-piece fast-fill faucet, rated up to 16 gallons per minute. Both come with two 5 foot 3/4 inch supply lines and a pull-out chrome hand shower on a 5 foot braided hose. Included with the tub are a removable front apron with two access panels, one reversible end panel, the 8 inch extension panel, a deck-mounted and a wall-mounted chrome grab bar, and two 2 inch four-port drains with two overflows and two cable openers.
Packages and Electrical
The Transfer30 can be ordered as a soaker or with one of these packages:
- Hydro Massage: 7 amp pump, intensity dial, ozone sterilization, in-line water heater, 22 jets (16 seat and 6 foot).
- Hydro + Hydro Independent Foot Massage: two hydro pumps (5 amp and 7 amp), two intensity dials, ozone, in-line heater on the lower jets, 22 jets.
- Air + Hydro: 4.5 amp three-speed air pump with auto purge, 17 air jets (11 seat including 2 bidet jets, 6 foot) and 11 hydro jets (5 back, 6 foot).
- Hydro Massage + Microbubble: hydro package plus the 1 HP microbubble pump, pressure vessel and agitator valve.
LED chromatherapy is included with the dual packages. A heated seat and backrest and a digital controller are optional. Every package needs dedicated GFCI-protected 115/120 V, 60 Hz lines, and the number of 20 amp circuits depends on how many pumps your package runs; see electrical requirements by model. Your electrician should size the circuits from the schematic that matches your order, since pump amperage can change with availability.
Transfer30 Versus Transfer26 and Transfer32
All three are 52 inches long and share the same door and drain system. The Transfer26 is 26 inches wide with a 19 inch seat and the two-piece faucet, for petite bathers and narrow rooms. The Transfer30 is 30 inches wide with a 22 inch seat, the standard-size choice for average bathers. The Transfer32 is 2 inches wider with a 24 inch seat and adds a triple Air + Hydro + Microbubble package. Each of the three includes the 8 inch extension panel for a 60 inch alcove.
Watch the Transfer30 and Transfer32 Together
Chapters in this video
- 0:00 Ella Transfer Walk-In Tub Features The video introduces the Ella acrylic Transfer walk-in tub, highlighting its L-shaped door, low threshold, textured floor, and secure two-latch gear and shaft lock.
- 0:45 Tub Sizes and Soaking Depth The video details the two available sizes of the Transfer tub, including seat dimensions and interior length, and explains how soaking depth is determined.
- 1:57 Air and Hydro Massage Systems The tub's air massage with auto purge and hydro massage with an inline heater are showcased, along with strategic foot jets and ozone sterilization.
- 2:38 Dual Drain and Fast-Fill Faucet The video explains the best-in-class dual drain technology for quick draining and presents the five-piece fast-fill faucet set with a hand shower.
- 3:00 MicroBubble and Chromatherapy Options The Infusion MicroBubble option for skin softening is presented, along with the heated seat and backrest, and the dual massage package with chromatherapy.
Watch: Wheelchair Accessible Transfer Walk-In Tubs in 30x52 & 32x52 Sizes with chapters and a full transcript.
This video presents both 52 inch models side by side. It shows the extra-wide frameless L-shaped door, the low threshold and textured floor, the two-latch gear and shaft lock, the deck and wall-mounted grab bars and the soft-grip handle. It then compares the 32 by 52 model with its 24 inch seat to the 30 by 52 model with its 22 inch seat, both described with 44 inches of interior length and a 15 1/2 inch seat length, before reviewing the three soaking-depth factors, the 17 jet three-speed air massage with auto purge, hydro massage with the intensity dial and in-line heater, ozone, the independent foot massage option, dual 2 inch drains, the five-piece faucet with hand shower, the microbubble option, the heated seat and backrest option and chromatherapy. Where the video's rounded interior figures differ from the spec sheet, the spec sheet governs.
A Dealer's Walkthrough of the Transfer Door
Chapters in this video
- 0:00 Transfer Walk-In Tub Overview The video introduces Ella's Bubbles transfer walk-in tubs, ideal for unobstructed access and available in five sizes.

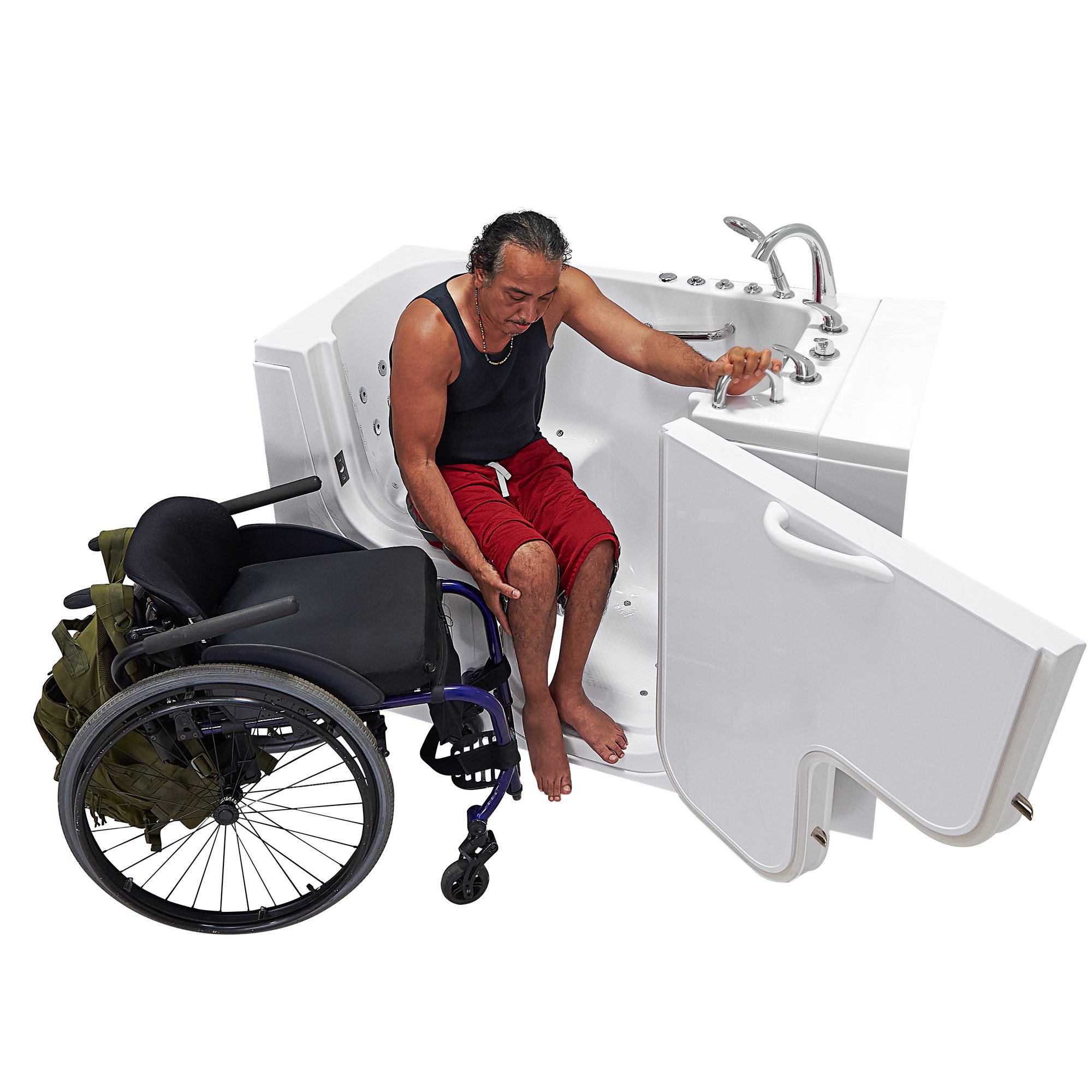

- 0:38 Easy Access and Transfer Options The presenter demonstrates how bathers can easily transfer into the tub from a wheelchair or by stepping in.
- 1:17 Quality Door and Tub Features The video highlights the robust, integrated door, ergonomic handle, and strategically placed grab bars for safety.
- 2:17 High-Flow Faucet and Customization The presenter explains the high-flow faucet, dual drains, and various customization options like hydro and air jets.
- 3:24 Space-Saving Design and Plumbing The video shows how the tub's door design allows installation in tight bathrooms, swinging over a toilet.
- 4:10 Unrestricted Water Flow System The presenter details the three-quarter inch braided supply lines and valve system for unrestricted, high-volume water flow.
- 4:51 Wide Range of Transfer Tub Sizes The video showcases the Transfer Triple XL model and emphasizes the wide selection of transfer tubs available to fit any space.
A dealer walks through the Transfer line: the two-pin lock, the wide-opening door with its mortised hinges and integrated seal, and the three ways to get in (wheelchair transfer, sit and swing, or step in). It also shows the 3/4 inch faucet supply lines that allow up to 18 GPM, the two 2 inch drains, the foot jets, and how the door wing swings over a toilet. Watch: Wheelchair Transfer Walk-In Tubs Designed for Easy Access | Voted Safest/Best 2020 with chapters and a full transcript.
Related Guides
- Which Ella Wheelchair Transfer walk-in tub sizes are available: 26x52, 30x52 or 32x52?
- How Do You Transfer From a Wheelchair Into an Ella Walk-In Tub?
Common Questions
What are the Transfer30 dimensions and seat width?
Is the Transfer30 offered in off white?
Which therapy packages are available on the Ella Transfer30?
Can I get the Transfer30 with air only?
How much water does it hold?
Does it need an extension panel for a 60 inch alcove?
How high is the seat and the threshold?
My Transfer30 mentions ozone. What does it do?
For anything specific to your Transfer30 or your order, open a ticket at ellasbubbles.com/support or call (800) 480-6850.
About this guide. Answers in the Ella’s Bubbles Support Center are compiled from real conversations with tub owners, our technicians’ notes and the product documentation, then reviewed by our team. Tub models and options have evolved over the years, so a detail here may differ slightly from your exact tub. If something looks different on yours, send us your serial number and a specialist will confirm it for your model.
