Deluxe vs Ultimate: Walk-In Tub Comparison

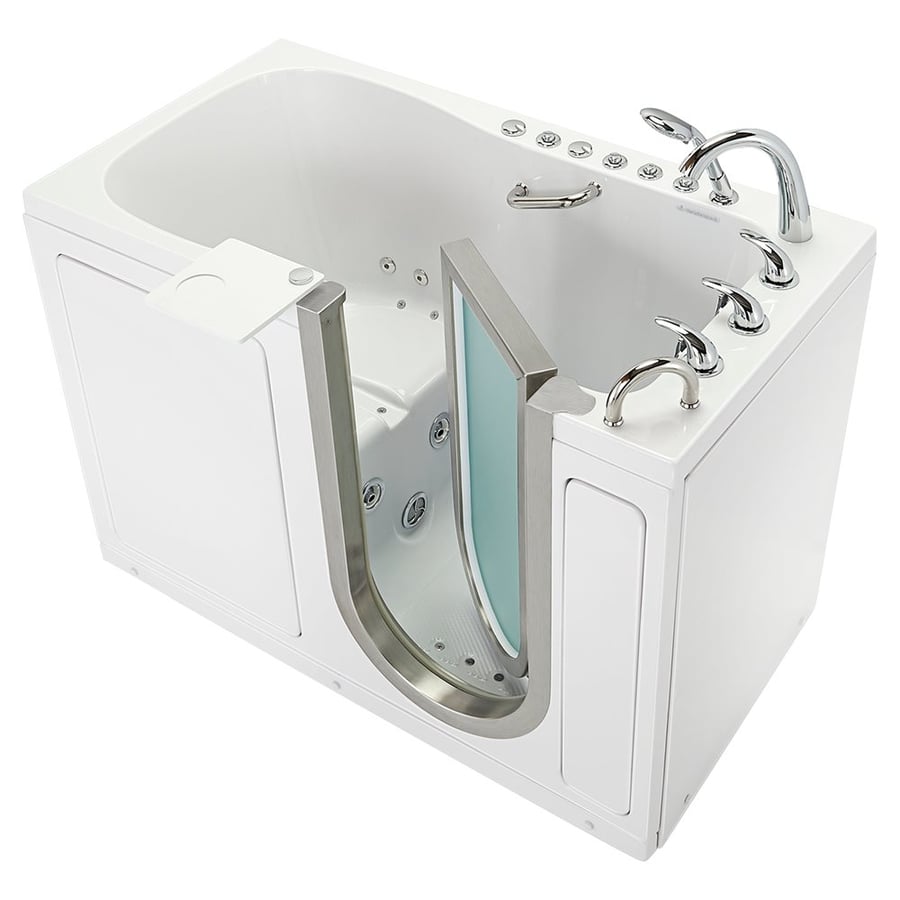

The Ella Deluxe and the Ella Ultimate side by side, using the actual dimensions from the spec sheets and technical drawings rather than nominal sizes. The profiles cover therapy packages, videos and installation notes for each tub.
VS
| Door style | Stainless steel removable inward-swing door | Stainless steel removable inward-swing door |
| Door swing | Inward | Inward |
| Seats | One bather | One bather |
| Actual size (W x L x H) | 29.5" x 55" x 39" | 29.625" x 59.50" x 35.75" |
| Seat | 21" x 15 1/2 in. | 21" x 16 in. |
| Interior length | 47 1/2 in. | 51 1/4 in. |
| Seat to overflow (soaking depth) | 19 in. | 18 1/2 in. |
| Seat to footwell | 15 in. | 15 in. |
| Footwell | 17 W by 19 L | 19 W by 21 L |
| Net weight | 212 lb | 220 lb |
| Shipping weight | 286 lb | 350 lb |
| Crate size (W x L x H) | 58.5" x 33.5" x 46" | 33" x 63" x 47" |
| Water to overflow, unoccupied | 107 gal | 95 gal |
| Water with a bather (typical) | 60-75 gal | 55-85 gal |
What is different
- The Ultimate is 0 1/8 in. wider than the Deluxe (29 5/8 in. vs 29 1/2 in.).
- The Ultimate is 4 1/2 in. longer than the Deluxe (59 1/2 in. vs 55 in.).
- The Deluxe is 3 1/4 in. taller than the Ultimate (39 in. vs 35 3/4 in.).
- They share the same door design: stainless steel removable inward-swing door.
- To the overflow, the Deluxe holds about 107 gallons and the Ultimate about 95, which matters for water heater sizing.
- Net weights are 212 lb (Deluxe) and 220 lb (Ultimate).
Common questions
Which is bigger, the Deluxe or the Ultimate?
The Ultimate has the larger footprint at 29.625" x 59.50" x 35.75", against 29.5" x 55" x 39" for the Deluxe.
Do the Deluxe and the Ultimate have the same door?
Yes. Both use the stainless steel removable inward-swing door, so the same operation, seal and latch guides apply to either tub.
How much water do the Deluxe and the Ultimate hold?
To the overflow when empty, the Deluxe holds about 107 gallons and the Ultimate about 95 gallons; with a bather the typical ranges are 60-75 and 55-85 gallons. Size your water heater to the larger figure.
Read the full profiles
Deluxe profileStainless steel removable inward-swing doorAdd a third model to this comparison → · Dimensions by model · Which door does my tub have?
Want help choosing?
Your Ella dealer or the team at (800) 480-6850 can walk you through both tubs for your space and needs.
