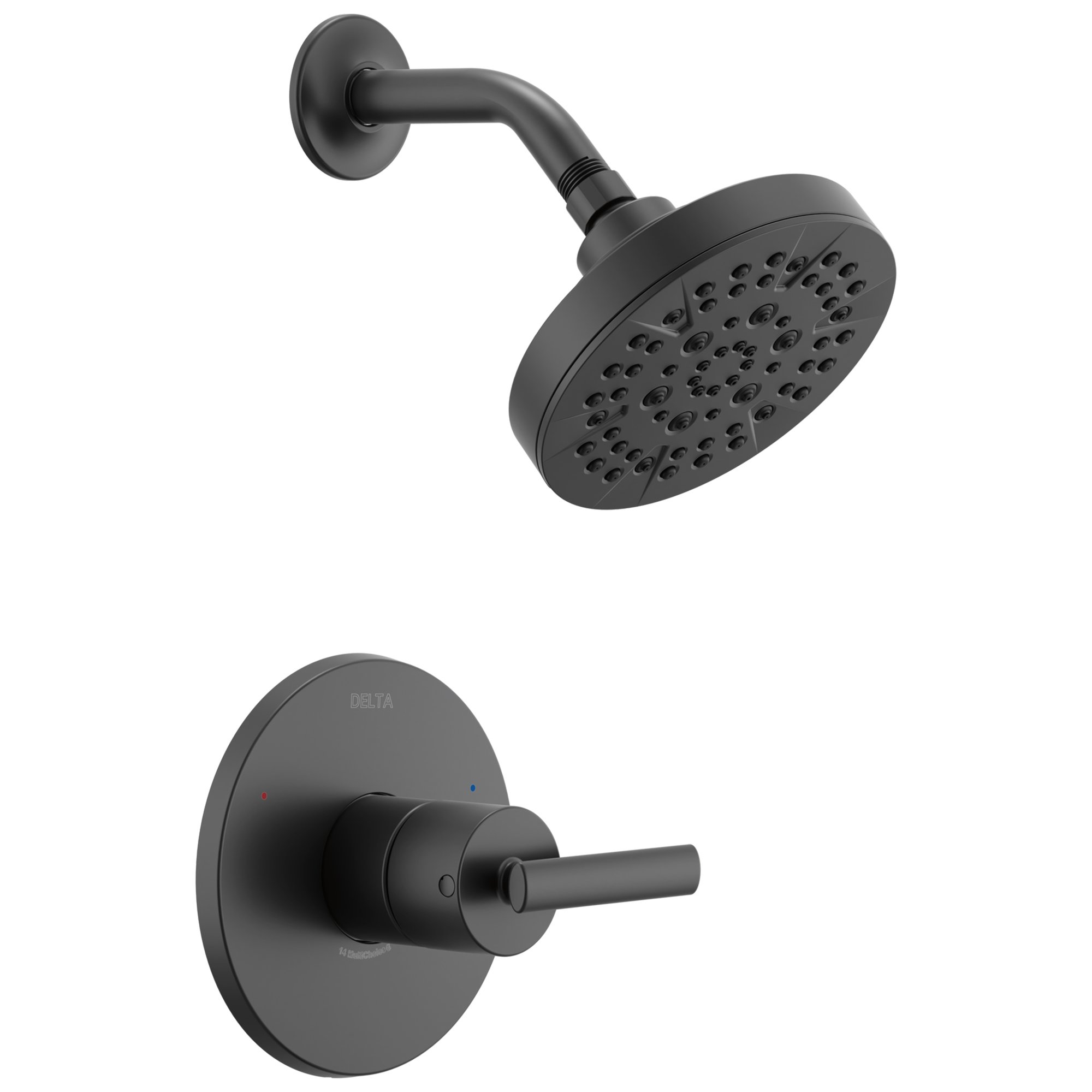

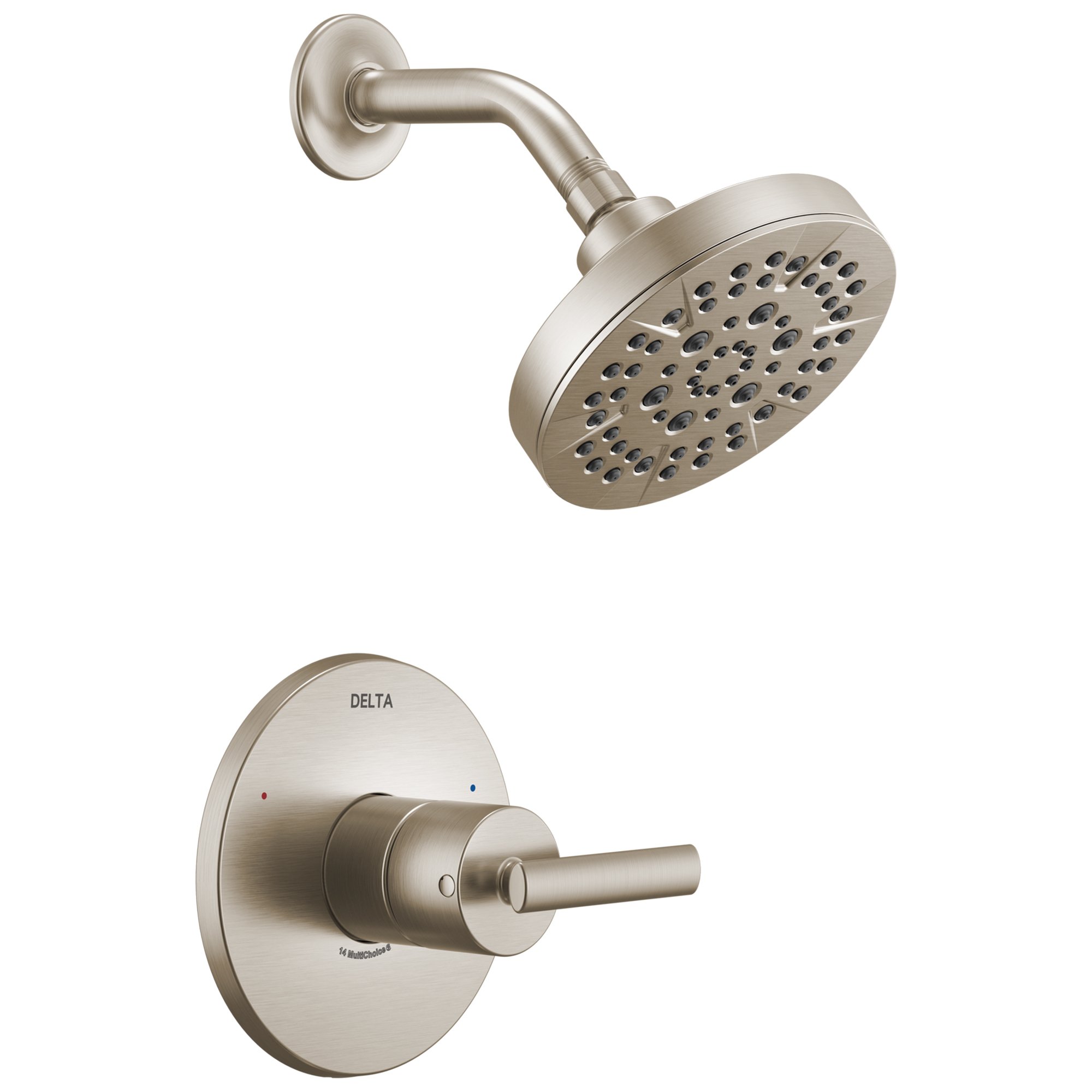

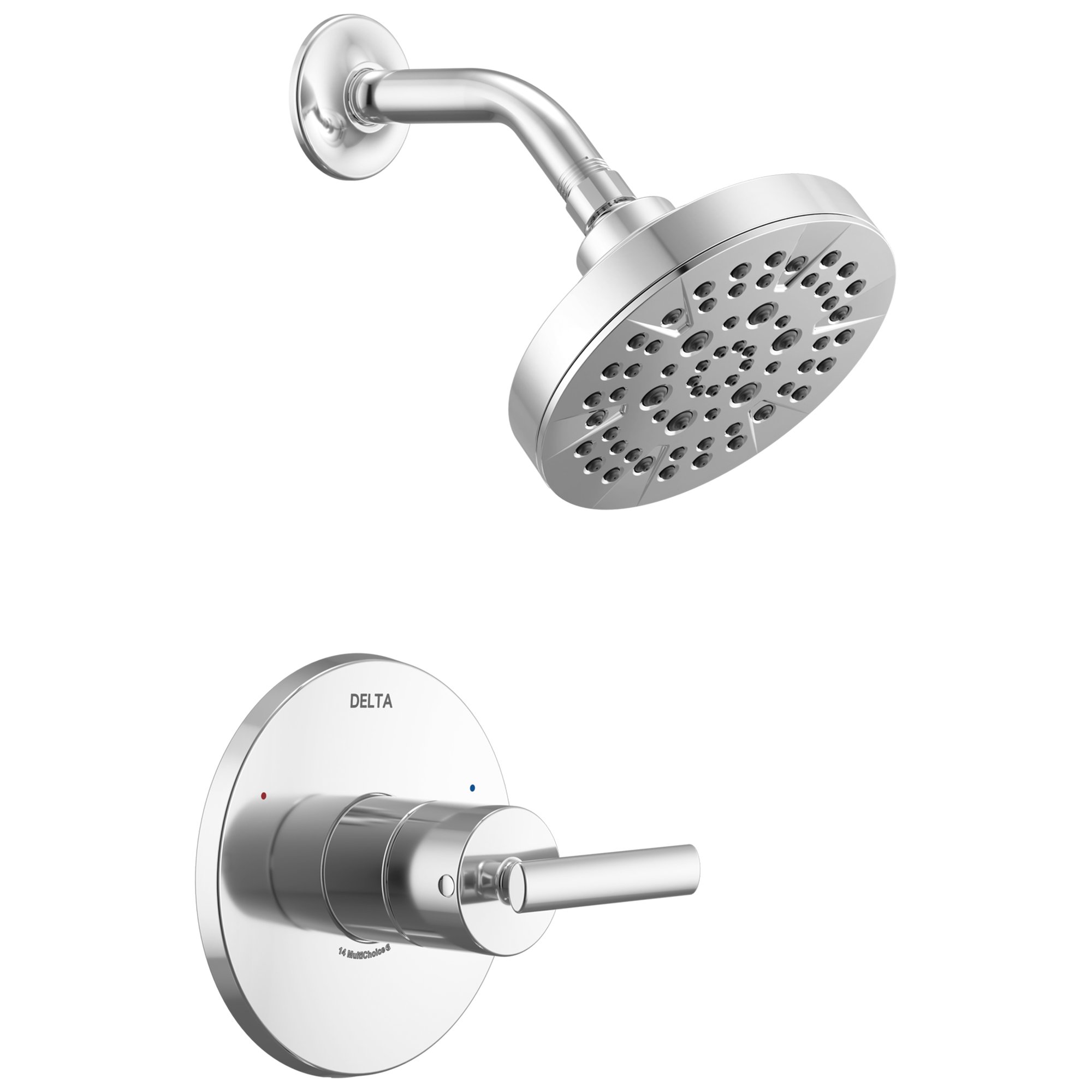

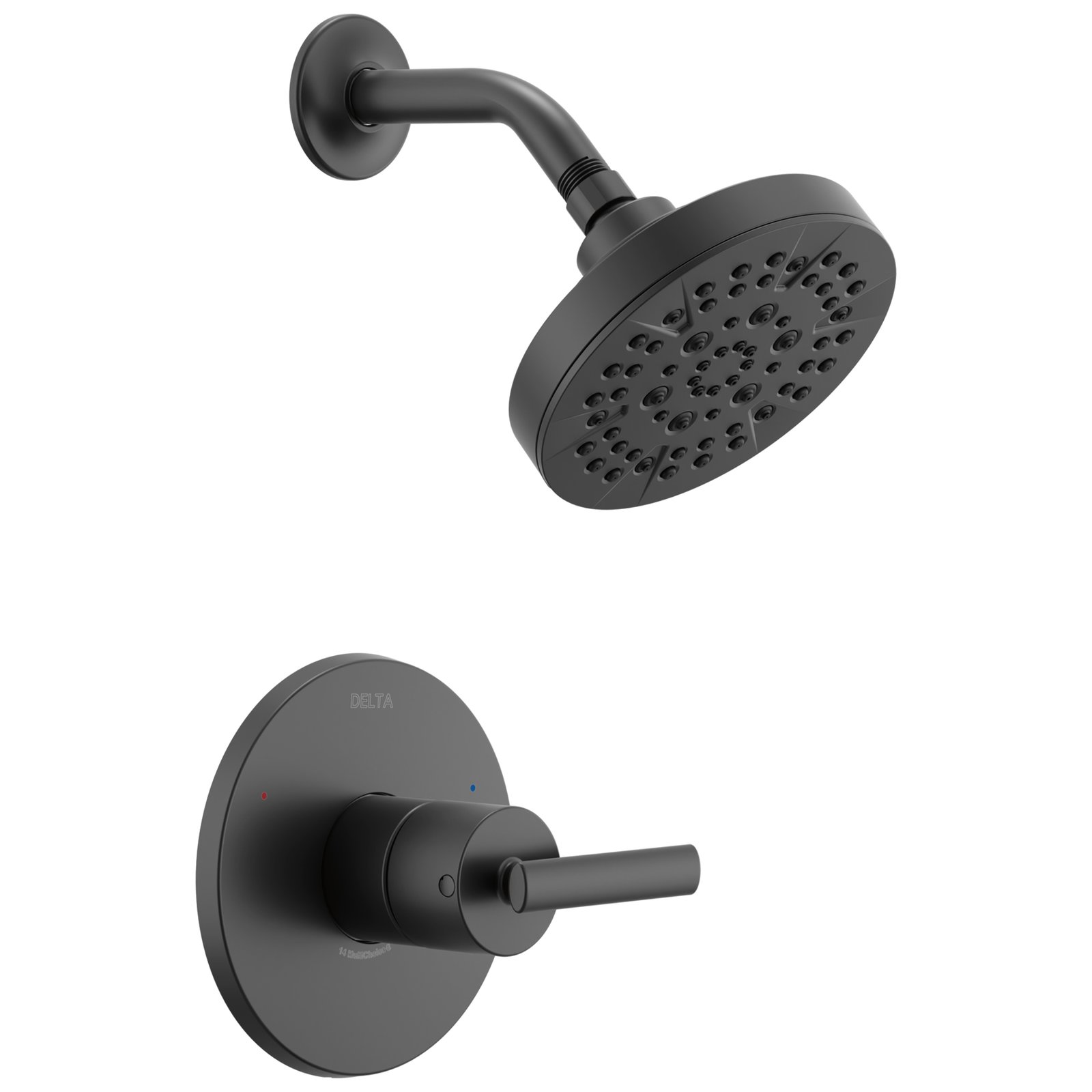

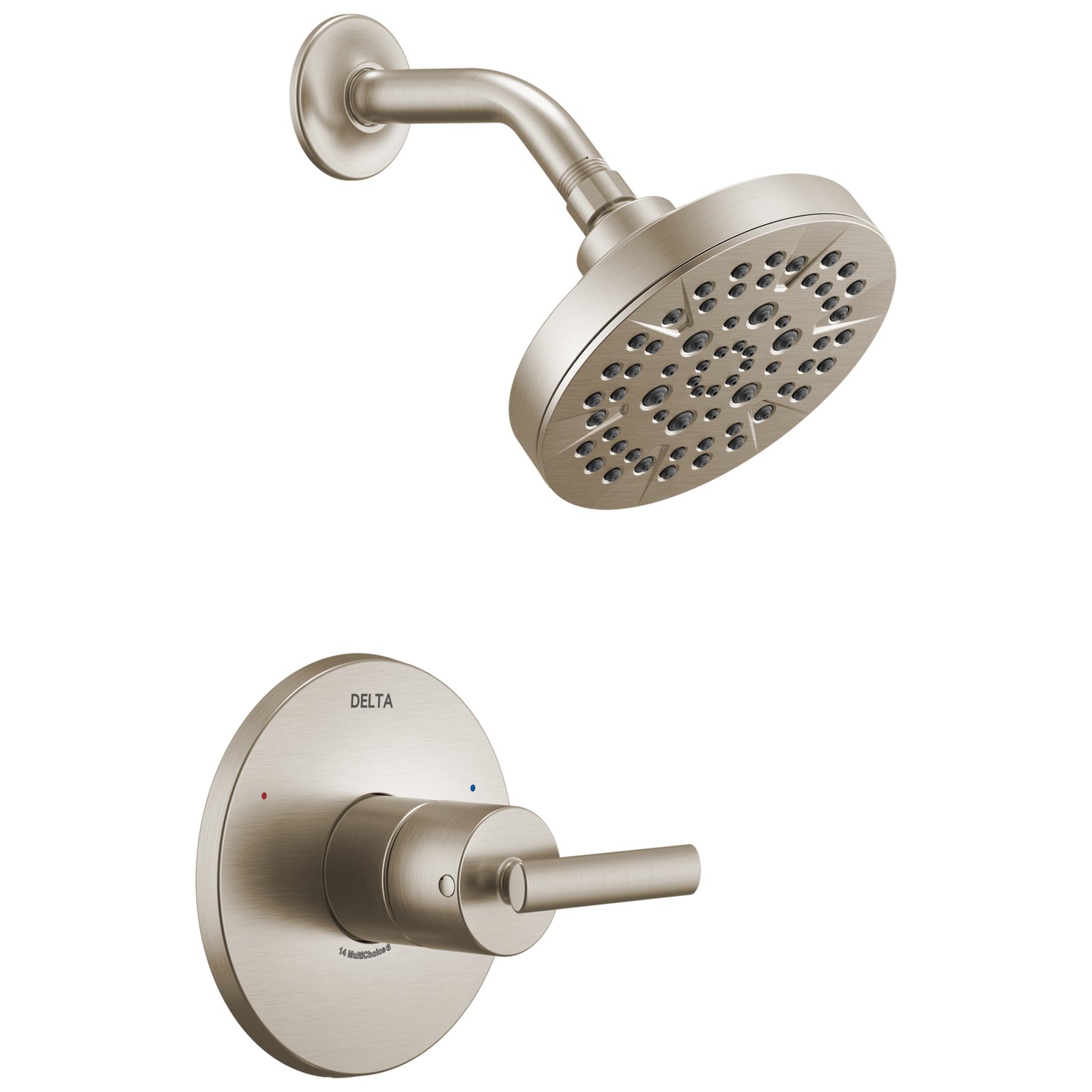

Delta T14242 – Altado™ Monitor® 14 Series Shower Trim
Single-handle, pressure-balanced shower trim from the Altado™ collection, designed for use with Delta MultiChoice® Universal rough-in valves. The Monitor® 14 Series cartridge helps maintain a consistent shower temperature, while the single-function 1.75 GPM showerhead supports water-saving requirements without sacrificing comfort. Soft rubber Touch-Clean® spray holes allow mineral buildup to be wiped away easily for low-maintenance performance.
Key specifications – T14242
-
Flow rate: 1.75 GPM at 80 psi (WaterSense®-compliant showerhead)
-
Valve type: Monitor® pressure-balance cartridge, shower-only trim (no tub outlet)
-
Trim diameter: approx. 6-1/2” round escutcheon
-
Handle: single lever handle, ADA compliant
-
Material/finish: zinc construction with plated finish (e.g., chrome, depending on model ordered)
-
Mounting: wall-mount trim for use with MultiChoice® Universal rough valve body (ordered separately)
-
Certifications: WaterSense® labeled; ADA compliant; Lifetime Limited Warranty

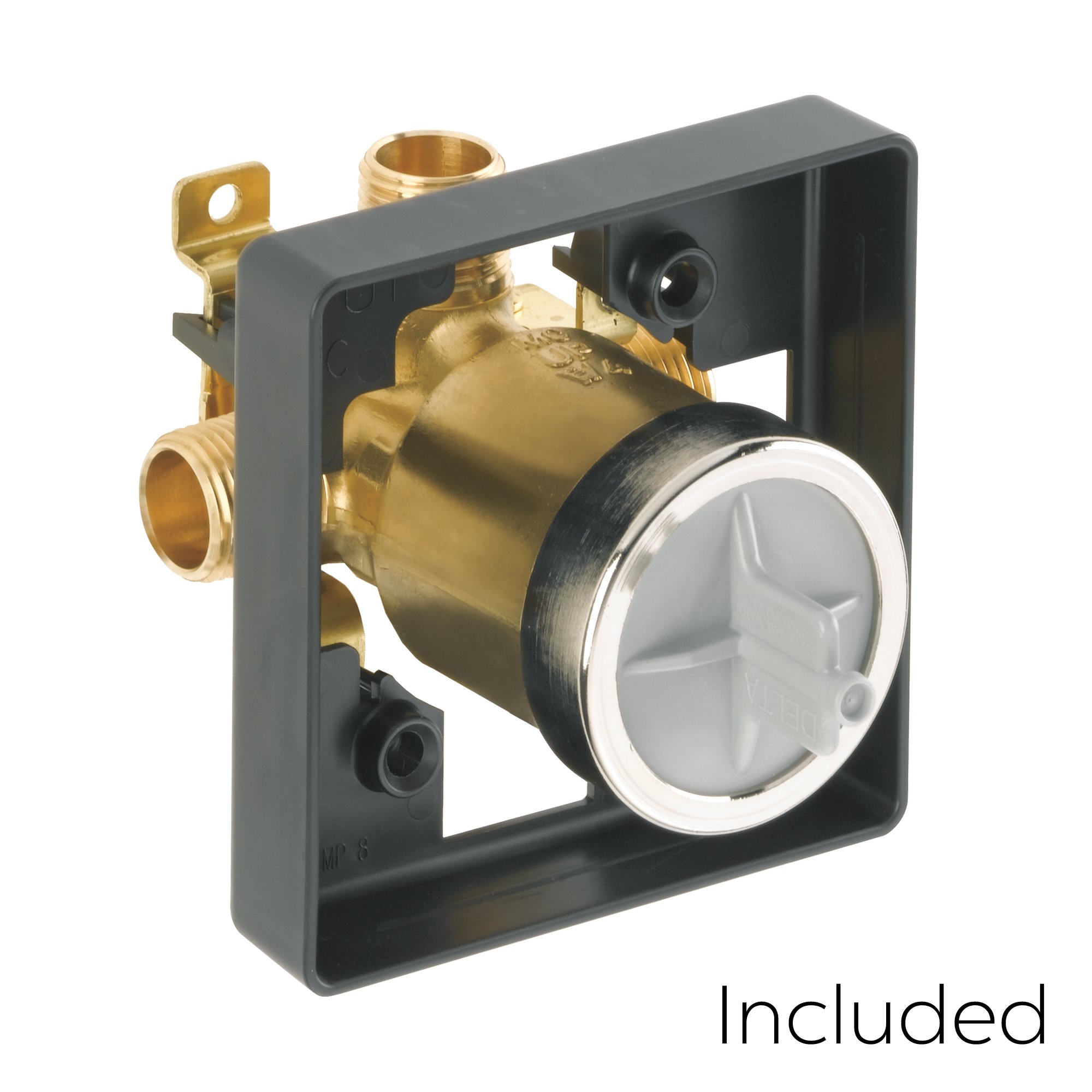

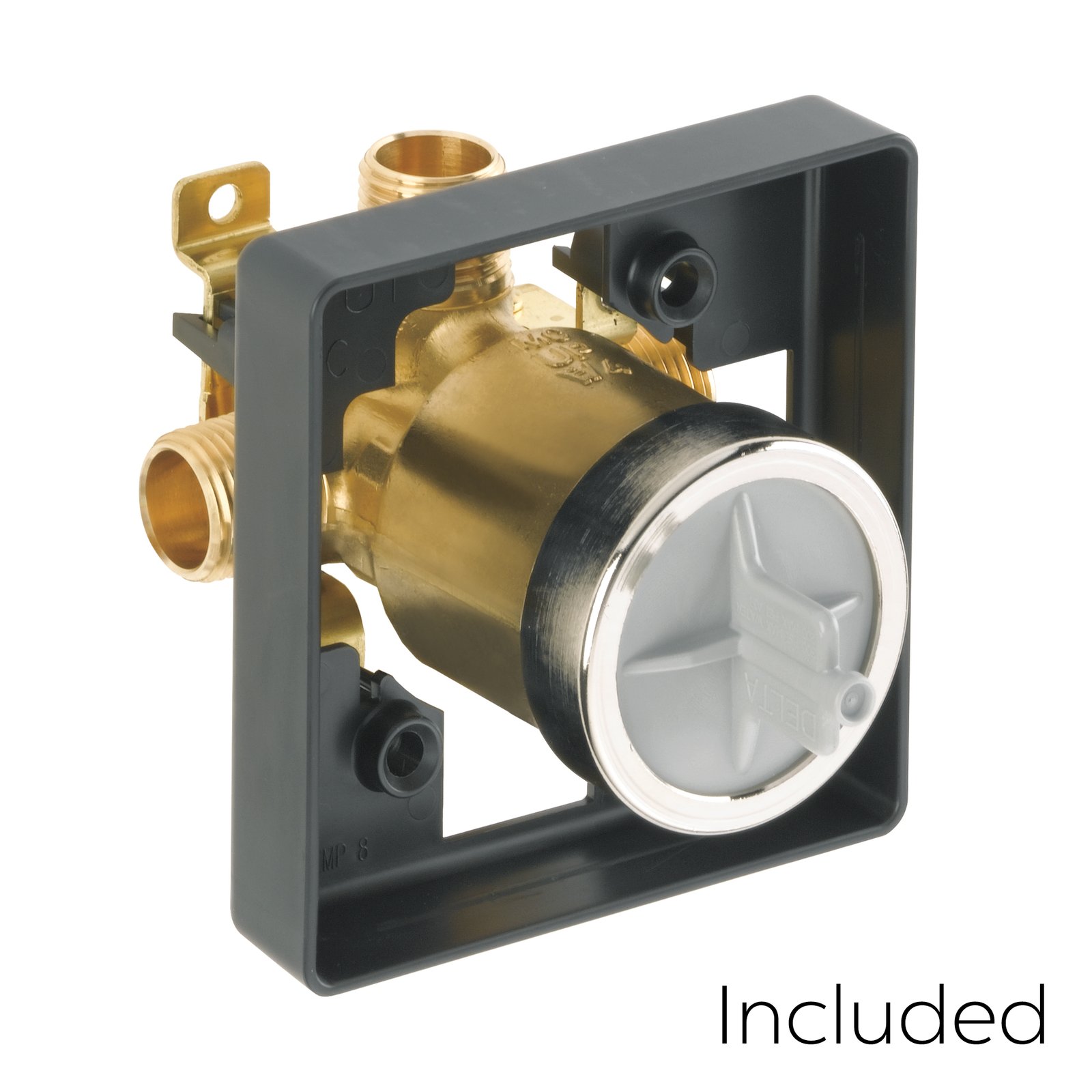

Delta R10000-UNBXHF – MultiChoice® Universal High-Flow Shower Rough
High-flow shower-only rough-in valve body designed for use with Delta MultiChoice® Universal trim kits. This valve is engineered specifically for shower applications, with the tub port factory-blocked to maximize flow to the shower outlet and remove the need for a separate tub-port plug. The MultiChoice® platform allows use of single-function, dual-function, or thermostatic cartridges so trim style and performance can be changed later without opening the wall. Universal 1/2” inlets/outlets accept multiple piping types, helping standardize plumbing both in manufacturing and in the field.
Key specifications – R10000-UNBXHF
-
Function: High-flow rough-in valve body for shower-only systems (tub port permanently blocked)
-
Valve platform: MultiChoice® Universal body; accepts 13/14 Series, 17 Series and 17T Series cartridges (cartridge ships with trim, not with valve)
-
Flow characteristic: High-flow design intended for shower-only models; optimized to support higher combined flow when multiple shower outlets are used (actual GPM depends on trim and system pressure)
-
Connections: 1/2” universal inlets/outlets; compatible with 1/2” copper, 1/2” iron pipe, and select PEX/CPVC connection methods
-
Body material: Forged brass valve body for strength and long service life
-
Features: Back-to-back installation capability; integral test cap for pressure testing before trim installation; factory-configured as shower-only so no additional tub-port plug is required
-
Application: Standardized rough-in for factory-built and field-installed shower systems requiring a dedicated, high-flow shower valve
-
Warranty: Lifetime Limited Warranty
