The low profile and accessibility features make this shower base a solid choice for any remodel.

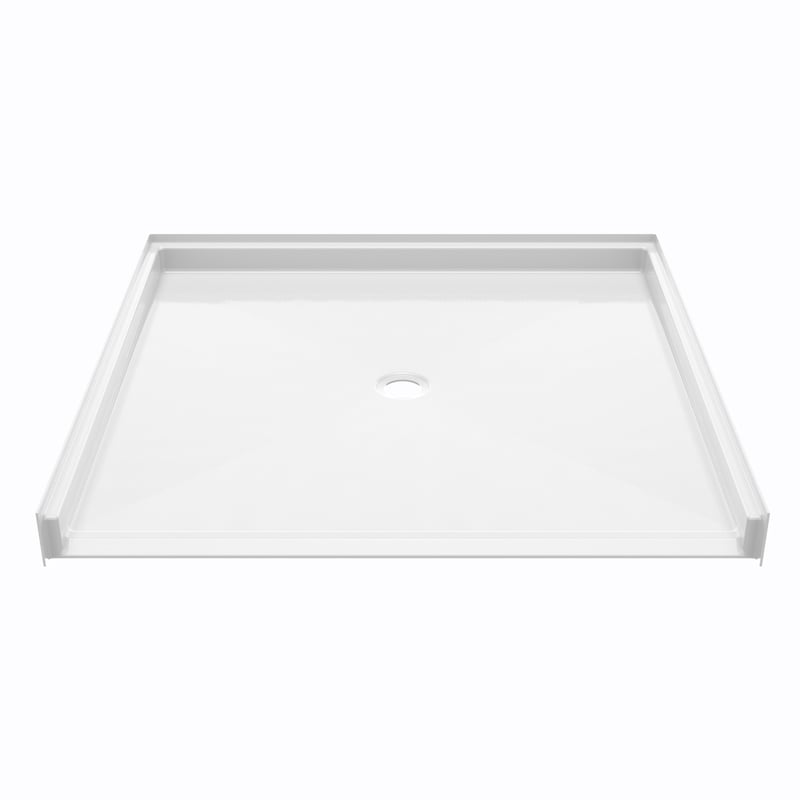

Ella Roll-in Barrier Free Shower Base 50.25 x 50.125 – Center Drain
$1,624.00
Ella’s shower pan, designed with accessibility and ease in mind, is the perfect solution for seamless tub-to-shower conversion projects. Measuring 50.25” x 50.125”, this low-threshold shower base is ideal for replacing a traditional bathtub or a shower with a threshold, offering a more accessible and comfortable bathing experience. To further enhance your bathroom, you can pair this shower base with Ella’s T&G Waterproof Shower Wall Tiles for a sleek, modern look without the hassle of traditional tile maintenance. In addition, Ella’s Bubbles now offers luxurious CNC-engraved acrylic shower walls, featuring refined patterns that add texture and visual interest while maintaining a smooth, easy-to-clean surface. If you prefer, you may also use your own choice of tiles to create a fully personalized design that reflects your unique style.
For enhanced safety and functionality, consider adding our range of grab bars and accessories, specifically designed to integrate seamlessly with the shower base and wall systems. These additions help create a more secure bathing environment, providing extra support where it’s needed most. For more information, please Contact Us or call 800-480-6850.
• Ella Roll-in Accessible Shower Base Installation Guide.pdf
Key Benefits
- Premium AcrylX™ applied acrylic
- Grip sure™ floor for safety
- Self-supporting & pre-leveled EasyBase™
- Shower door friendly
- Accessories are optional and shipped loose for field installation
- In stock for rapid ship
Barrier Free Shower Base Attribute Set
- Above-the-Floor Rough : No
- Accessible Type : Code compliant
- Installation Type : Alcove
- Material : AcrylX™
- Barrier Free
- Textured Slip-Resistant Floor
- Pre-Leveled, no Recess Needed
Barrier Free Shower Base Dimensions
- Threshold Height: 1”
- Height: 4 1/2”
- Width: 50 1/8”
- Length: 50 1/4”
- Approximative Weight: 90.00 lbs
Easy Installation
The pre-sloped, reinforced shower pans are designed to minimize construction time and can be easily installed on your existing sub-floor without recessing. The accessible 7/8″ beveled threshold and slip-resistant textured floor enhance bathing safety. The threshold includes a built-in stainless steel bar structure designed to withstand years of use and daily use.
INCLUDED FEATURES FOR
ELLA BARRIER FREE SHOWER BASES
Drain + Collapsible Rubber Dam
Our mobility-friendly collapsible rubber dam, also known as a water retainer or water stopper, offers a user-friendly solution for water containment. Designed to prevent falls and reduce facility liability and maintenance, it comes standard with our Roll-in Accessible Shower Bases. No special tools are required for installation, thanks to the strong, water-resistant, self-adhesive tape that ensures a mess-free application.
INCLUDED FEATURES FOR
ELLA BARRIER FREE SHOWER BASES
Drain + Collapsible Rubber Dam
Our mobility-friendly collapsible rubber dam, also known as a water retainer or water stopper, offers a user-friendly solution for water containment. Designed to prevent falls and reduce facility liability and maintenance, it comes standard with our Roll-in Accessible Shower Bases. No special tools are required for installation, thanks to the strong, water-resistant, self-adhesive tape that ensures a mess-free application.
HOW-TO-INSTALL
Collapsible Rubber Dam
Important Note!
For proper adhesion, the shower base area under the collapsible dam must be cleaned with Isopropyl Alcohol before installing the collapsible dam.
Tools & Materials required
Utility KnifeClean ragsTape measureStraight edgeMasking tapeRubbing AlcoholClear or White 100% Silicone adhesive caulk.Tile Application Grout Line joints
The grout line beneath the retainer must be caulked to prevent water travel beneath the dam. Wipe off excess caulk and let cure (according to caulk specifications) prior to use.
- Chemically clean mounting surface with clean rag and denatured rubbing alcohol. This is paramount to insuring proper adhesion.
- Peel back orange tape approximately 24 inches.
- Starting approximately ½ inch from square corner, press on and adhere first 4 inches of strip.
- Stretch align and pull toward center of shower, press firmly to shower surface.
- Pull and stretch to wall and align before removing remainder of orange peel-off strip.
- Peel back remaining length, repeat stretch align and pull to opposite corner.
- Measure and cut excess dam with razor blade approximately ½ inch from wall.
- Dry fit square caps to insure proper fit (trim if required).
- Remove caps and apply clear silicone adhesive caulk to male end of cap and re-insert male end into collapsible dam.
- Flex cap away from the wall to apply silicone caulk to wall side of cap.
- Release and wipe away excess caulking using clean alcohol-soaked rag.
- Apply masking tape to hold cap in position if needed until adhesive is cured.
Collapsible Rubber Dam
HOW-TO-INSTALL
Important Note!
For proper adhesion, the shower base area under the collapsible dam must be cleaned with Isopropyl Alcohol before installing the collapsible dam.
Tools & Materials required
Utility KnifeClean ragsTape measureStraight edgeMasking tapeRubbing AlcoholClear or White 100% Silicone adhesive caulk.Tile Application Grout Line joints
The grout line beneath the retainer must be caulked to prevent water travel beneath the dam. Wipe off excess caulk and let cure (according to caulk specifications) prior to use.
- Chemically clean mounting surface with clean rag and denatured rubbing alcohol. This is paramount to insuring proper adhesion.
- Peel back orange tape approximately 24 inches.
- Starting approximately ½ inch from square corner, press on and adhere first 4 inches of strip.
- Stretch align and pull toward center of shower, press firmly to shower surface.
- Pull and stretch to wall and align before removing remainder of orange peel-off strip.
- Peel back remaining length, repeat stretch align and pull to opposite corner.
- Measure and cut excess dam with razor blade approximately ½ inch from wall.
- Dry fit square caps to insure proper fit (trim if required).
- Remove caps and apply clear silicone adhesive caulk to male end of cap and re-insert male end into collapsible dam.
- Flex cap away from the wall to apply silicone caulk to wall side of cap.
- Release and wipe away excess caulking using clean alcohol-soaked rag.
- Apply masking tape to hold cap in position if needed until adhesive is cured.
