Description

The Ella HomeCare Assisted Bathtub is specifically designed for all users and individuals with mobility needs who require assistance getting in and out of the tub. The water temperature is preset using a thermostatic valve control, allowing the caregiver to adjust it to the desired level, with a suggested maximum temperature of 104°F to ensure safety.

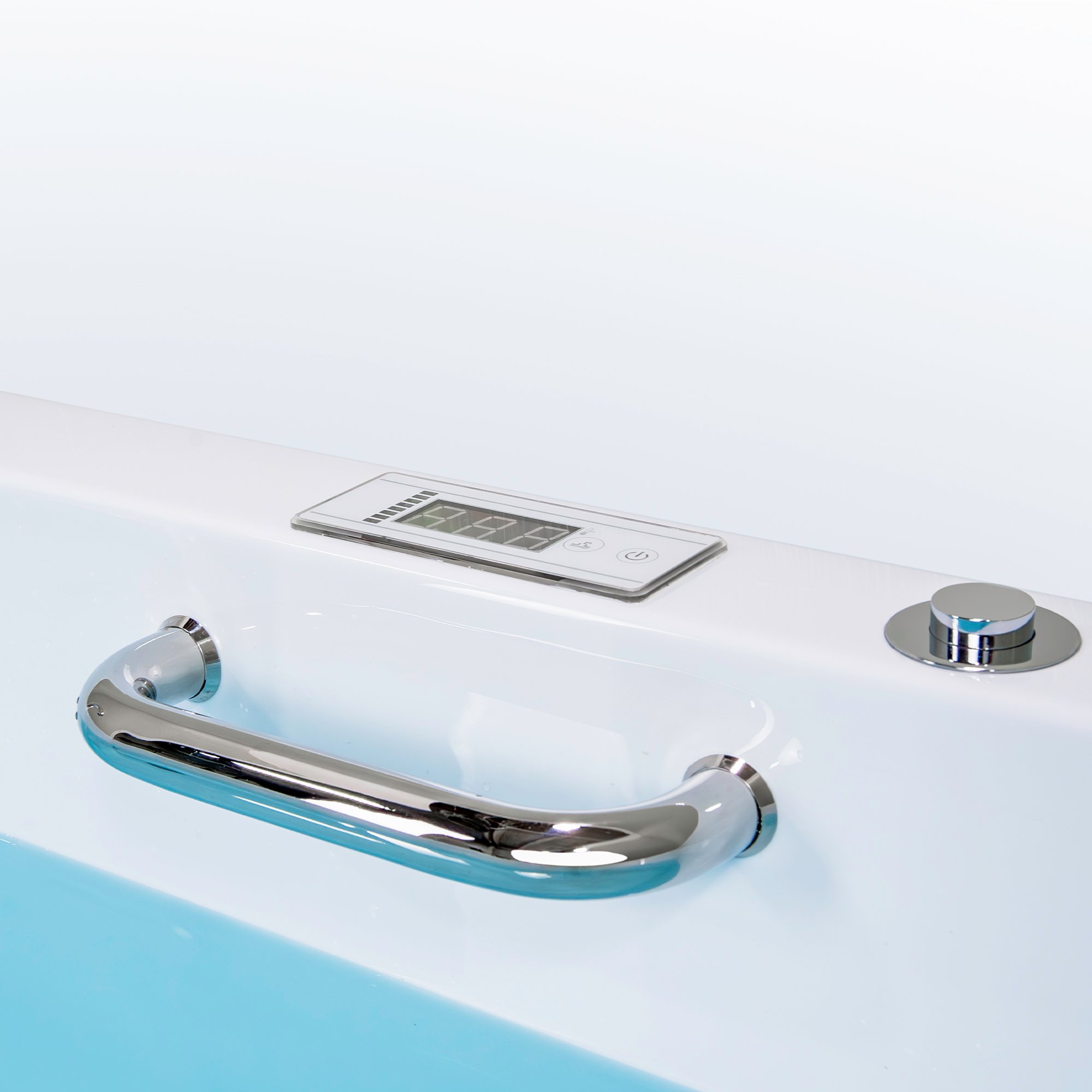

Once the temperature is set and the water tank is filled, the caregiver can assist the bather in transferring into the tub. After the bathtub door is securely closed and locked, the bathtub filler water pump can be activated via the digital controller’s on/off button. The water, maintained at the preset temperature, will fill the bathtub in under 2 minutes. If additional water is needed, it can be added using the wall-mounted waterfall faucet.

The hand shower, mounted on a 24” slider, provides convenience for the caregiver to shower the bather. The Fast Fill Hydro Option is designed to speed up the filling process and reduce waiting time for the bather. However, this option should only be used once per session, prior to the bathtub being fully filled.

Note: The fast fill option must not be activated once the water tank is emptied and the bathtub is filled.

For efficient drainage, the bathtub features a 2” drain, which can be opened using the drain opener. This quick-drain feature reduces waiting time for both refilling and exiting the tub.

Warranty

We provide a limited lifetime parts warranty* for the original customer living at the address of installation. This warranty is non-transferable to other customers or locations. Please visit the “Downloads” tab for complete warranty information.

Therapy Options

This model offers 4 jetting & therapy options. Due to limited space under the tub you can select one of the 4 options below. Please view descriptions of the different therapy options below, or click on the PDF links to see jetting schematics for easier understanding.

1. Hydro Massage System

Download Schematics: Hydrotherapy Massage System

The Hydro Massage System includes: a hydro pump with an in-line water heater, eco-friendly ozone sterilization system, hydro massage intensity dial control, and strategically positioned hydro jet system for targeted and effective massaging.

The in-line water heater helps maintain the water temperature at constant level while bathing, if the water tank can produce enough hot water. It is suggested to upgrade to the largest available 75-gallon water heater to ensure enough hot water. Please consult with a professional contractor to determine if your water tank can provide enough hot water for a walk-in bathtub. Our ozone sterilization system is the most eco-friendly, chemical free disinfectant that can eliminate a wide variety of inorganic, organic, and microbiological bacteria. The sterilization system is especially helpful in eliminating odors and hygienic maintenance. The in-line water heater and ozone sterilization automatically engage when the hydro massage push control is pressed down when turning on your jets. The hydro massage intensity dial control allows you to adjust the strength of the water stream by adding more or less air into the hydro system.

The Tramo 30” x 60” has eight (8) strategically placed hydro jets in order to deliver optimal therapeutic relief. These jets provide relief to your back, hips, thighs, feet and calves.

2. Air Massage System

Download Schematics: Air Massage System

The Air Jet Massage System includes an air pump with a 3-speed variable push control, strategically positioned air jets for optimal therapeutic relief, and an auto-purge to maintain an air system free of any build ups. The Air Massage System’s most popular control system is the on/off push control because the buttons were designed to rise above the deck in order to make it easier to push.

The Tramo3060 has twenty (20) strategically placed air jets that pull in air and blow it into the water to create a gentle, relaxing massage. These fixed flat jets work to provide relief to your back, hips, thighs, foot, and legs.

The Air Jet Massage System also includes an auto-purge feature. This feature engages automatically 20 minutes after the pump has been turned off to purge water out of the air jet lines. The auto-purge will run for 120 seconds to ensure your system is clear and free of moisture and excess water helping to prevent the mildew buildup.

Note: This massage is gentler than a Hydrotherapy Massage.

3. Infusion™ Microbubble Therapy

Download Schematics: Infusion Microbubble Therapy

Ella Infusion™ Microbubble Therapy System consists of a single Microbubble jet connected to a hydro pump and Microbubble Tank System. The high-pressure hydro pump, along with the Microbubble tank, breaks down the water molecules into billions of tiny bubbles which are then sent out through the single jet. At the push of an on/off button, this feature can provide a moisturizing, exfoliating therapeutic experience all while detoxifying and relieving skin related issues.

For more information, visit Infusion™ MicroBubble Therapy.
