Soaking Option (No Jetting)

To view all jetting options, click on the “Therapy Options” tab.

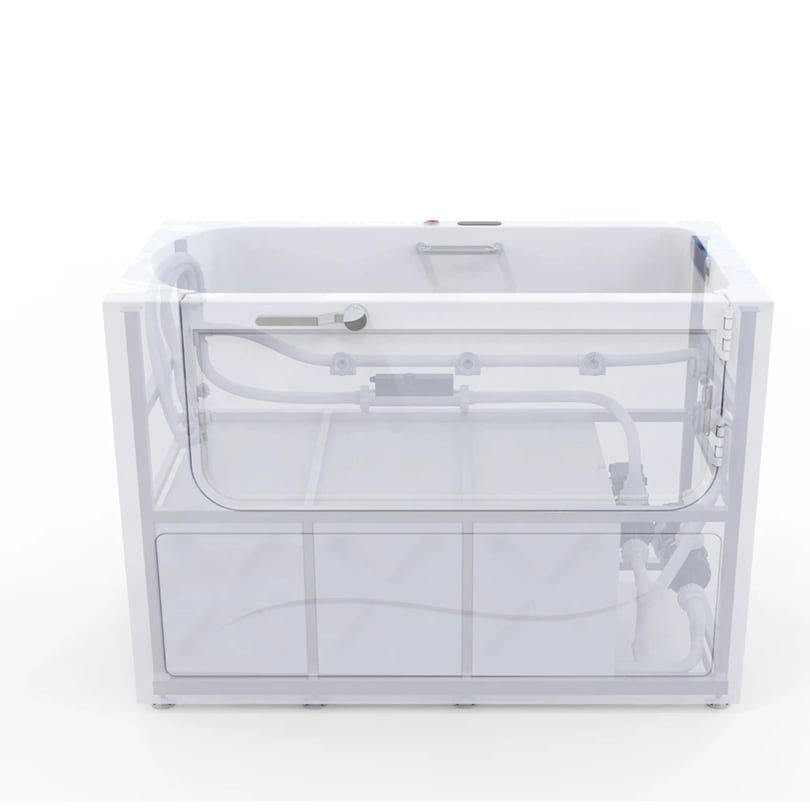

The Assisted 3266 walk-in tub shell is constructed from premium acrylic in a white glossy finish, supported by a stainless-steel frame with adjustable leveling legs, and reinforced with layers of fiberglass gel coat. The nonporous acrylic surface is easy to clean and resistant to mold and mildew. Additionally, the textured floor and wide opening angle of the front door facilitate easy access for both assisted and independent bathing.

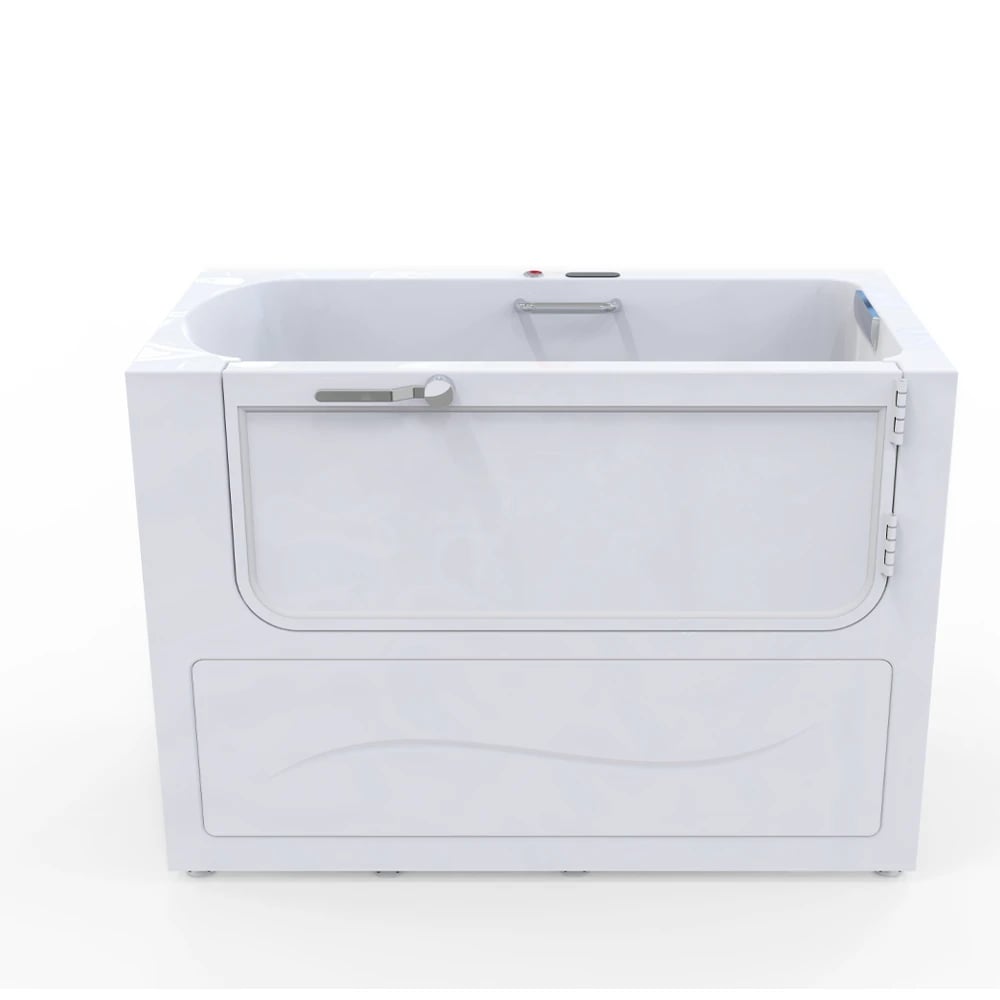

This standard size tub measures at 32″ x 66″ (81cm x 167cm) and has a spacious outswing door of 59″ (125cm). The Tremo Series main feature is the easy access door which allows an easy assessment during the entry. The door is 46” wide, and swings into the tub to allow the bathers to easily enter and exit the tub. These outward swing doors are also easier to close once inside the tub. The lever lock, along with the door gasket, creates a secure and watertight door seal, providing you with a safe, leak-free bathing experience.

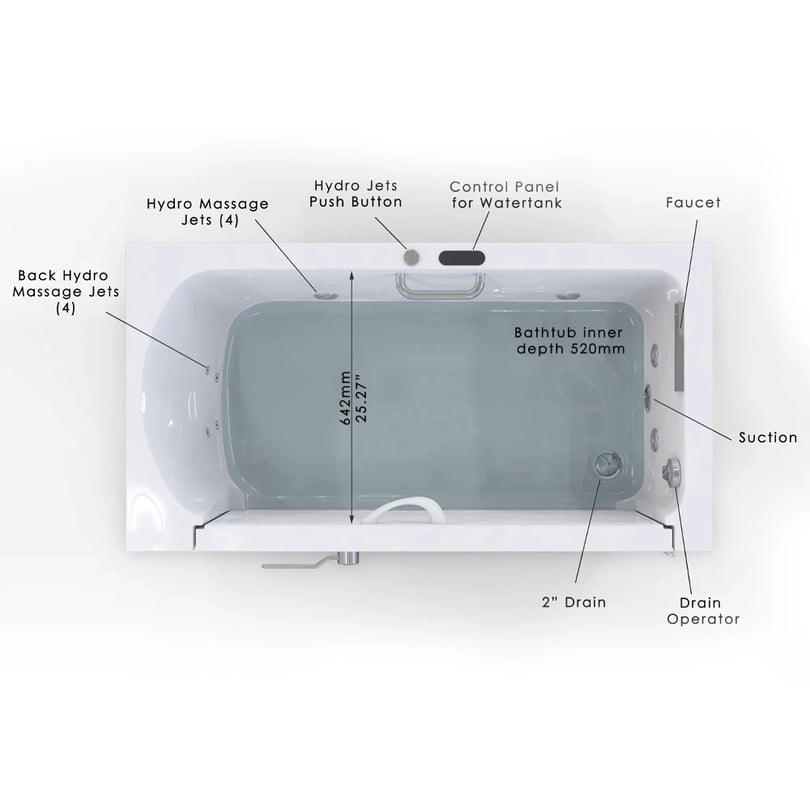

The Assisted 3266 comes with one of the best and exclusive features: Single 2” Drain with an emergency pull up chain, consisting of two 2” outlets and an overflow. A cap is also included to cover 1 of 2 ports if needed. The 2” drain outlets can be connected to the standard 1 ½” house drain with piping selected by a professional plumber. The selection of drain pipe configuration and the pipes and fittings are up to the homeowner or licensed plumber. However, for the most efficient drainage, please consider connecting both ports to a 2” house drain if possible. Typical drainage time is approximately +/- 80 seconds for this particular tub within ideal in-home plumbing conditions.

Warranty

We provide a limited lifetime parts warranty* for the original customer living at the address of installation. This warranty is non-transferable to other customers or locations. Please visit the “Downloads” tab for complete warranty information.

Therapy Options

This model offers 4 jetting & therapy options. Due to limited space under the tub you can select one of the 4 options below. Please view descriptions of the different therapy options below, or click on the PDF links to see jetting schematics for easier understanding.

1. Hydro Massage System

Download Schematics: Hydrotherapy Massage System

The Hydro Massage System includes: a hydro pump with an in-line water heater, eco-friendly ozone sterilization system, hydro massage intensity dial control, and strategically positioned hydro jet system for targeted and effective massaging.

The in-line water heater helps maintain the water temperature at constant level while bathing, if the water tank can produce enough hot water. It is suggested to upgrade to the largest available 75-gallon water heater to ensure enough hot water. Please consult with a professional contractor to determine if your water tank can provide enough hot water for a walk-in bathtub. Our ozone sterilization system is the most eco-friendly, chemical free disinfectant that can eliminate a wide variety of inorganic, organic, and microbiological bacteria. The sterilization system is especially helpful in eliminating odors and hygienic maintenance. The in-line water heater and ozone sterilization automatically engage when the hydro massage push control is pressed down when turning on your jets. The hydro massage intensity dial control allows you to adjust the strength of the water stream by adding more or less air into the hydro system.

The Assisted 32” x 66” has eight (8) strategically placed hydro jets in order to deliver optimal therapeutic relief. These jets provide relief to your back, hips, thighs, feet and calves.

2. Air Massage System

Download Schematics: Air Massage System

The Air Jet Massage System includes an air pump with a 3-speed variable push control, strategically positioned air jets for optimal therapeutic relief, and an auto-purge to maintain an air system free of any build ups. The Air Massage System’s most popular control system is the on/off push control because the buttons were designed to rise above the deck in order to make it easier to push.

The Assisted 3266 has twenty (20) strategically placed air jets that pull in air and blow it into the water to create a gentle, relaxing massage. These fixed flat jets work to provide relief to your back, hips, thighs, foot, and legs.

The Air Jet Massage System also includes an auto-purge feature. This feature engages automatically 20 minutes after the pump has been turned off to purge water out of the air jet lines. The auto-purge will run for 120 seconds to ensure your system is clear and free of moisture and excess water helping to prevent the mildew buildup.

Note: This massage is gentler than a Hydrotherapy Massage.

3. Infusion™ Microbubble Therapy

Download Schematics: Infusion Microbubble Therapy

Ella Infusion™ Microbubble Therapy System consists of a single Microbubble jet connected to a hydro pump and Microbubble Tank System. The high-pressure hydro pump, along with the Microbubble tank, breaks down the water molecules into billions of tiny bubbles which are then sent out through the single jet. At the push of an on/off button, this feature can provide a moisturizing, exfoliating therapeutic experience all while detoxifying and relieving skin related issues.

For more information, visit Infusion™ MicroBubble Therapy.
