Step 1 Upper Brackets
Using the 9/16″ nuts & bolts, attach two angle brackets to frame with the white rubber turned up as shown.
Step 2 Lower Bracket
The angle bracket without rubber is attached to the bottom frame bar with two (2) 9/16″ bolts, washers & nuts.

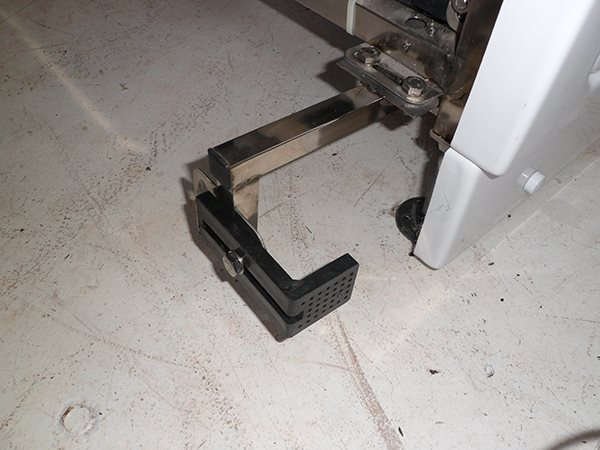

Step 3 Lower Adjustable Bracket
The black adjustable angle piece is bolted into place.

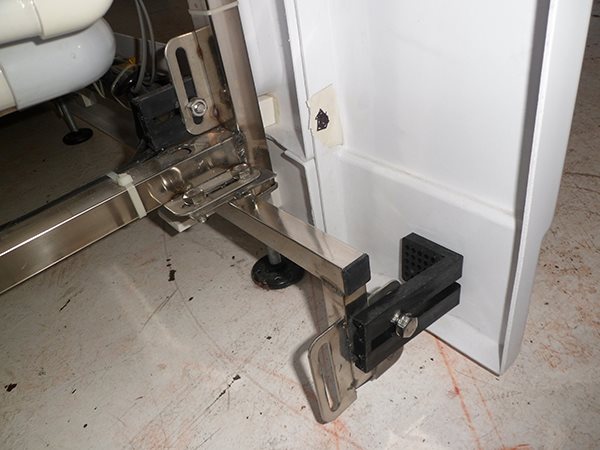

Step 4 Completed Brackets View 1
Upon completion of the three (3) brackets, this shows the proper bracket location.
Step 4 Completed Brackets View 2
Additional view of the completed bracket position.
Step 5 Attach Extension Panel
Once all the brackets are installed you can attach the extension panel to the tub using seven (7) sets 3/8″ bolts, nuts & washers.

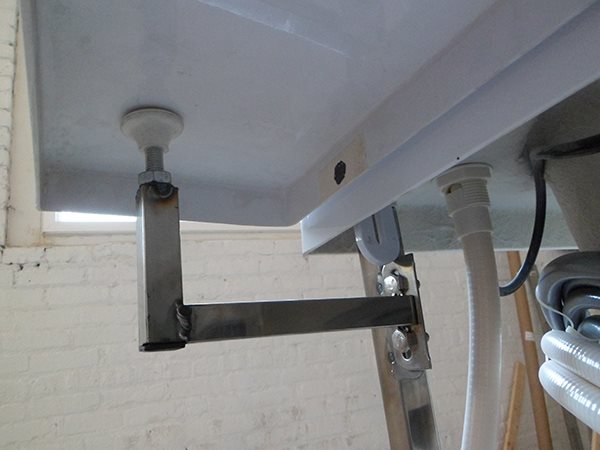

Step 6 Upper Bracket Adjustments View 1
Next, the upper brackets should be adjusted to provide the best support for the extension panel. A rubber leg should be flush against the panel. To adjust the bracket, simply loosening the nut and adjust.

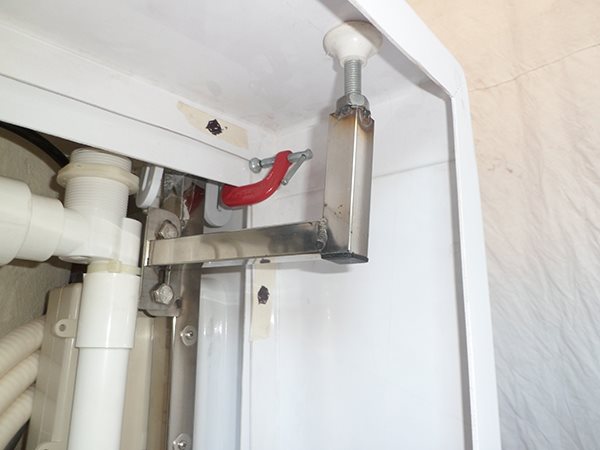

Step 6 Upper Bracket Adjustments View 2
Make sure you level both sides of the upper brackets.
Step 7 Lower Bracket Adjustments
Your lower bracket has a black, plastic “L” shaped bracket that should be screwed into your extension panel for lower stability.
Step 8 Completed
Extension panel is installed.
