Description

Soaking (No Jetting)

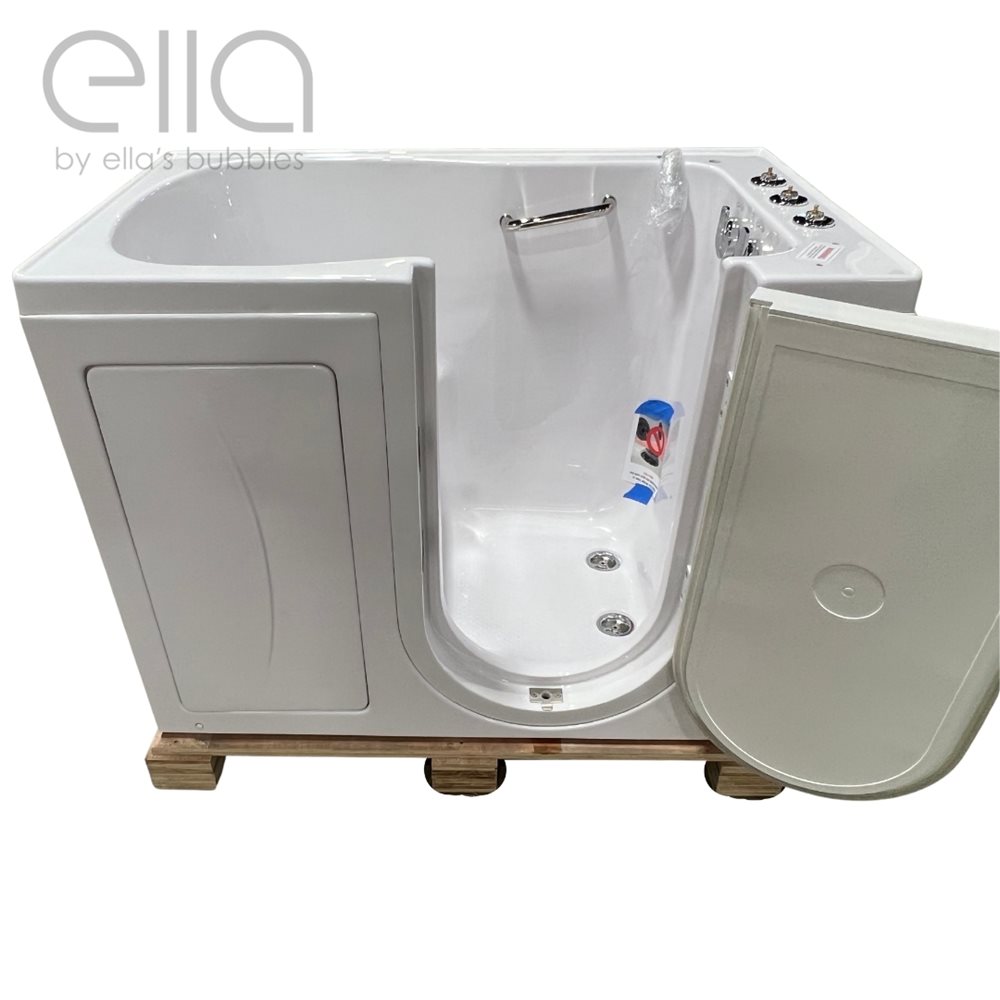

The walk-in tub shell of the Chi is constructed with premium acrylic in a white glossy finish, supported by a stainless-steel frame with adjustable leveling legs, and reinforced with fiberglass gel coat layers. The nonporous acrylic surface is easy to clean and impermeable to mold and mildew. A textured floor, low step-in threshold, one deck and one wall mounted U-shape stainless steel grabs in a chrome finish, enhance your safety and allow quick and safe entry and exit in and out of the tub.

This standard size walk-in tub measures at 32”W x 52”L and has a comfortable 22” wide seat. The Chi’s main feature is the door which is made from industrial grade durable plastic composite material with a decorative tempered glass screen to conceal the mechanical door lock system. The door is 19 1/4” wide, and swings outward from the tub to allow the bathers to comfortably enter and exit the tub. The outward swing door also creates more interior space, which allows bathers to effortlessly sit into the molded seat, pull the door and lock it. Ella U-Shape outward swinging doors use a gear and shaft driven 3-latch door lock that edges out our competition, who typically use a single latch/lever system. A 3-latch door system creates a more secure and watertight door seal, providing you with a safe, leak-free bathing experience.

The Chi comes with one of the best and exclusive features: Dual Drain Technology, consisting of two independent 2” gravity driven drains with four 2” outlets, 2 overflows and 2 drain openers, allowing for a fast and reliable drainage. 2 caps are also included to cover up to 2 of 4 ports if needed. The 2” drain outlets can be connected to the standard 1 ½” house drain with a T or Y fitting and piping provided by a professional plumber. It is suggested to connect all 4 outlets to the house drain for the fastest drainage possible. Typical drainage time is approximately +/- 80 seconds for this standard size tub within ideal in-home plumbing conditions. Ella gravity driven dual drains are fast and reliable because they do not require an electric pump, whereas electrical driven drains may fail due to electrical shorts or power outages.

This model also includes one reversible end panel for left or right corner installation options and one extension filler panel kit for 60” alcove installations. The reversible end panel is used to cover the end of the tub that is exposing the walk-in tub shell. An additional end panel can be ordered if your tub will be installed against the wall with both ends exposed.

Warranty

We provide a limited lifetime parts warranty* for the original customer living at the address of installation. This warranty is non-transferable to other customers or locations. Please visit the “Downloads” tab for complete warranty information.

Therapy & Jetting Options

Note: LED Chromatherapy light is included with any dual jetting or therapy package.
Examples: air & hydro, hydro & hydro, Hydro & Microbubble therapy

The Capri model offers 4 jetting & therapy options: 1) Hydro; 2) Air & Hydro; 3) Hydro & Microbubble Therapy; 4) Hydro & Independent Foot + Calf Massage. The Capri is also available in a soaking option without jets.

Please view the descriptions of the different therapy options below, or click on the PDF links to see schematics for easier understanding.

1. Hydro Massage System

Download Schematics: Hydrotherapy Massage System

Description

The Capri walk-in tub has fifteen (15) strategically placed hydro jets in order to deliver optimal therapeutic relief. Nine (9) upper fixed jets work to provide relief for your back, hips and thighs, while six (6) lower adjustable jets massage your feet and calves.

The Hydro Massage System includes: a hydro pump with an in-line water heater, an eco-friendly ozone sterilization system, a hydro massage intensity control dial, and a strategically positioned hydro jet system for targeted and effective massaging.

The in-line water heater is designed to maintain the water temperature at a constant level while bathing for maximum comfort. The ozone sterilization system is the most eco-friendly, chemical free disinfectant that can eliminate a wide variety of inorganic, organic, and microbiological bacteria. This sterilization system is especially helpful in eliminating odors and hygienic maintenance.

Lastly, the hydro massage intensity control dial allows you to adjust the strength of the water stream by adding more or less air into the hydro system.

2. Hydro + Air Massage System

Download Schematics: Hydrotherapy + Air Massage System

Description

The Capri walk-in tub has sixteen (16) strategically placed air jets in order to deliver rejuvenating therapeutic relief. Eight (8) upper, fixed flat jets work to provide relief to your back, hips and thighs, while an additional eight (8) jets located in the lower foot area deliver a gentle massage to your feet and calves. Additionally, two (2) of the eight (8) upper jets are bidet jets.

The air massage system includes an air pump with a 3-speed variable push control, strategically positioned air jets for optimal therapeutic relief, and auto-purge to maintain an air system free of any build ups.

Ella’s Air Jet System includes an Auto Purge System. It automatically activates 20 minutes after completing your bath in order to blow out any excess water and bacteria from the air jet lines. Auto-purge will run for 120 seconds to ensure your system is clear and free of moisture and excess water helping to prevent mildew build up.

Slide Anything shortcode error: A valid ID has not been provided

3. Hydro + Infusion™ MicroBubble Therapy

Download Schematics: Hydrotherapy Massage + Microbubble Therapy

Description

Ella’s Infusion™ MicroBubble Therapy System consists of a single Microbubble jet connected to a hydro pump and a Microbubble tank system. The high-pressure hydro pump, along with the Microbubble tank, breaks down the water molecules into billions of tiny bubbles which are then sent out through a single jet. At the push of an on/off push control button, this feature can provide a moisturizing, exfoliating therapeutic experience all while detoxifying and relieving skin related issues. For more information about Infusion™ MicroBubble Therapy, click here.

4. Hydro + Independent Hydro Foot Massage System

Download Schematics: Hydrotherapy + Independent Hydro Foot Massage

Description

The Hydro + Independent Foot and Calf Massage package uses two independently run pumps to give bathers a simultaneous full body massage and a powerful foot and calf massage. The strategically positioned upper and lower hydro jets powered by two hydro pumps include an intensity control dial to adjust the strength of the water pressure to your liking from a gentle pressure to a more rigorous massage. Bathers can enjoy an independent foot and calf massage within minutes by simply filling the foot well up the seat level.

Please note: if you choose this jetting package, your walk-in bathtub will come with one (1) in-line water heater that will be connected to the lower jets and used with the independent foot massage feature, and an ozone sterilization system connected to the upper jets.

Faucet Options

1. Ella 2 Piece Fast-Fill Faucet

The Ella 2 Piece Fast Fill Faucet with pull out multi-function hand shower is perfect for your walk in bathtub or any bathtub where fill time matters. The fast fill 2 piece fills at a rate of up to 18 GPM (gallons per minute) based on in house plumbing conditions. If desired, the pull out hand shower can be used for shower while the bathtub is filled to stay warm. Available in a Chrome or Brushed Nickel finish.

Royal Acrylic Walk-in Tub – 32″ X 52″ (81cm X 132cm)

Ella 2 Piece Single Lever Fast Fill Faucet

2. Ella 5 Piece Fast Fill Faucet

The Ella 5 Piece ¾” Fast Fill Faucet with pull out multi-function hand shower in chrome finish is perfect for your walk-in bathtub or any bathtub where fill time matters. The fast fill 5-piece fills at a rate of up to 18 GPM (gallons per minute) based on in house plumbing conditions. If desired, the pull-out hand shower can be used for showering while the bathtub is filled to stay warm.

Transfer60 Outward Swing Door Wheelchair Accessible Acrylic Walk-in Bathtub – 30″w X 60″l (76cm X 152cm)

Elite Walk-in Tub – 30″ X 52″ (76cm X 132cm)

3. Complete Shower Column For Deck Mounted Faucets

The Shower Column Kit connects to a diverter on an Ella brand 2 or 5 piece deck mounted faucet in order to create an extended overhead shower. The stainless steel, chrome finish column can be effortlessly adjusted up to 7 feet tall. Along the column is a vertically movable, 5 mode multi-functional hand shower, and attached at the top is an oversize rain shower that can be directed with ease to the seat for a seated shower or footwell for a stand up shower. This shower column kit replaces the need for a wall-mounted showerhead.

Shower Column Kit For Deck Mounted Walk-in Tub Faucets

Optional Features

1. Controller Options

We offer two control options: Push Control or Digital Control. Our Push Controls are easy-to-use push down buttons that will operate your chosen jetting and any additional features.

The digital control is our more modern option, giving you a digital keypad from which to control your jets and additional features such as Chromatherapy LEDs and heated seat & backrest. Since the Digital Control is smaller, it may be more difficult for elderly to see and operate.

2. Ella 4-Fold Glass Shower Screen in Chrome Finish for Walk-In Tubs

The Ella brand 4-fold shower screen is the best option in the industry for walk-in tubs because of the foldable feature that’s not offered with a standard shower glass or curtains. This gives bathers an airy, open feeling with the option to easily push the screen aside. The lightweight glass, secured in an aluminum frame with quality gear hinges, is sturdy enough to endure rigorous daily use. Additionally, one of the 4-fold sections can be removed to create a 3-fold shower screen.

Aegis Fold Mm Tempered Glass Shower Screen For Walk In Tubs

4-fold Tempered Glass Shower Screen Bath Screen For Walk-in Tubs

3. Standard Seat Pillow Riser

The Standard Seat Pillow Riser is designed to cover the bidet jets found in your Ella walk-in bathtub. This luxuriously thick pillow is incredibly comfortable and can be used as a riser or additional seat support in all walk in bathtubs. The interior material is washable and can be removed.

Standard Shape: Seat Pillow And Riser For Walk-in Tubs – Seatriser-3 (20 1/2″w X 13″l X 3 1/2″h)

4. U-Shape Seat Pillow Riser

Our dual massage walk-in tubs have two air jets in the center of the seat. The U shape pillow is designed to accommodate these two bidet jets. If you want to cover bidet jets, you can utilize the regular seat pillow. This luxuriously thick pillow is incredibly comfortable and can be used as riser or additional seat support in all walk in bathtubs. The interior material is washable and can be removed.
