Soaking Option (No Jetting)
To view all jetting options, click on the ” Therapy & Jetting Options” tab.
The walk-in tub shell of the Deluxe is constructed with premium acrylic in a white glossy finish, supported by a stainless-steel frame with adjustable leveling legs, and reinforced with fiberglass gel coat layers. The nonporous acrylic surface is easy to clean and impermeable to mold and mildew. A textured floor, low step-in threshold, one deck and one wall mounted U-shape stainless steel grabs in a chrome finish, enhance your safety and allow quick and safe entry and exit in and out of the tub.
This standard size walk-in tub measures at 30″ x 55″ (76.2cm x 140cm) and has a spacious 21″ wide seat. The Deluxe’s main feature is the door which is made from beautiful, custom brushed stainless steel with a frosted tempered glass window to give it a sleek, contemporary look. The door is 16 ½” wide, and swings into the tub to allow the bathers to easily enter and exit the tub without being in the way of other bathroom fixtures such as a toilet or vanity. These inward swing doors are also easier to close once inside the walk-in tub. The extended stainless steel door lever was uniquely designed to bypass the bathers’ leg when locking and unlocking the door in a seated position. The lever lock, along with the door gasket, creates a secure and watertight door seal, providing you with a safe, leak-free bathing experience.
The Deluxe comes with one of the best and exclusive features: Dual Drain Technology, consisting of two independent 2” gravity driven drains with four 2” outlets, 2 overflows and 2 drain openers, allowing for a fast and reliable drainage. 2 caps are also included to cover up to 2 of 4 ports if needed. The 2” drain outlets can be connected to the standard 1 ½” house drain with a T or Y fitting and piping provided by a professional plumber. It is suggested to connect all 4 outlets to the house drain for the fastest drainage possible. Typical drainage time is approximately +/- 80 seconds for this standard size tub within ideal in-home plumbing conditions. Ella gravity driven dual drains are fast and reliable because they do not require an electric pump, whereas electrical driven drains may fail due to electrical shorts or power outages.
This model also includes one reversible end panel for left or right corner installation options. The reversible end panel is used to cover the end of the tub that is exposing the walk-in tub shell. An additional end panel can be ordered if your tub will be installed against the wall with both ends exposed.
Warranty
We provide a limited lifetime parts warranty* for the original customer living at the address of installation. This warranty is non-transferable to other customers or locations. Please visit the “Downloads” tab for complete warranty information.
Jetting Information
The Deluxe model offers the Air & Hydro Jetting Option, including Chromatherapy.
Please view the descriptions of the different therapy options below, or click on the PDF links to see schematics for easier understanding.
Hydro + Air Massage System
Download Schematics: Hydrotherapy + Air Massage System
The Elite walk-in tub has sixteen (16) strategically placed air jets in order to deliver rejuvenating therapeutic relief. Eight (8) upper, fixed flat jets work to provide relief to your back, hips and thighs, while an additional eight (8) jets located in the lower foot area deliver a gentle massage to your feet and calves. Additionally, two (2) of the eight (8) upper jets are bidet jets.
The air massage system includes an air pump with a 3-speed variable push control, strategically positioned air jets for optimal therapeutic relief, and auto-purge to maintain an air system free of any build ups.
Ella’s Air Jet System includes an Auto Purge System. It automatically activates 20 minutes after completing your bath in order to blow out any excess water and bacteria from the air jet lines. Auto-purge will run for 120 seconds to ensure your system is clear and free of moisture and excess water helping to prevent mildew build up.
1. Ella 4-Fold Glass Shower Screen in Chrome Finish for Walk-In Tubs
The Ella brand 4-fold shower screen is the best option in the industry for walk-in tubs because of the foldable feature that’s not offered with a standard shower glass or curtains. This gives bathers an airy, open feeling with the option to easily push the screen aside. The lightweight glass, secured in an aluminum frame with quality gear hinges, is sturdy enough to endure rigorous daily use. Additionally, one of the 4-fold sections can be removed to create a 3-fold shower screen.
2. Standard Seat Pillow Riser
The Standard Seat Pillow Riser is designed to cover the bidet jets found in your Ella walk-in bathtub. This luxuriously thick pillow is incredibly comfortable and can be used as a riser or additional seat support in all walk in bathtubs. The interior material is washable and can be removed.
3. U-Shape Seat Pillow Riser
Our dual massage walk-in tubs have two air jets in the center of the seat. The U shape pillow is designed to accommodate these two bidet jets. If you want to cover bidet jets, you can utilize the regular seat pillow. This luxuriously thick pillow is incredibly comfortable and can be used as riser or additional seat support in all walk in bathtubs. The interior material is washable and can be removed.


4. Headrest & Neck Support
Increase your comfort with the Ella Walk-In Bathtub Headrest. The headrest can be mounted on the wall or on the deck using attached suction cups.
The Video Below Showcases the Air + Hydro Dual Therapeutic Massage Option
Now you can have the option of an independent foot massage for your Ella’s Bubbles walk-in tub!
Infusion™ MicroBubble Therapy – Detoxify & Exfoliate
Ella Deluxe Walk-In Tub with Shower Column & 4-Fold Shower Screen
The best fast drain in industry – no power required! Ella gravity driven 2″ dual drain technology with independently operated 2 openers, 2 overflows for fast and reliable drainage and exit out of the walk-in tub. This drain can be connected to 4 x two inch outlets vs. one 1 1/2″ standard bathtub drain. See details in product page downloads or visit Dual Drain Technology.
Ella walk-in tubs are equipped with 4 adjustable foot jets and 2 adjustable calf jets for maximum relaxation. These jets are strategically positioned in the lowest possible area of the floor for bathers to enjoy a powerful foot massage in a relaxed position. No need to fill the whole tub, the foot well fills in just a couple of minutes!

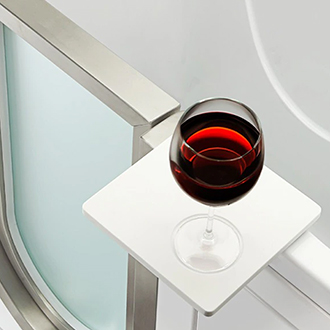

One of the best features we added to this line of walk-in tubs is our patented 360° swivel tray. Whether it be a beverage or a book, you no longer have to worry about where to put the items that aid in your relaxation. This unique swivel tray adds a touch of additional convenience to complete any bath. This is available for the Elite, Royal, Petite, and the Ultimate models.
